User Manual for Microsoft LifeCam Cinema Click to enlarge the picture
Contents of the user manual for the Microsoft LifeCam Cinema
- Product category: WebCams & Accessories Microsoft
- Brand: Microsoft
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Microsoft WebCams & Accessories
 |
User manual for the Microsoft LifeCam Cinema contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Microsoft product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Microsoft user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Microsoft product will considerably shorten its lifespan!
|

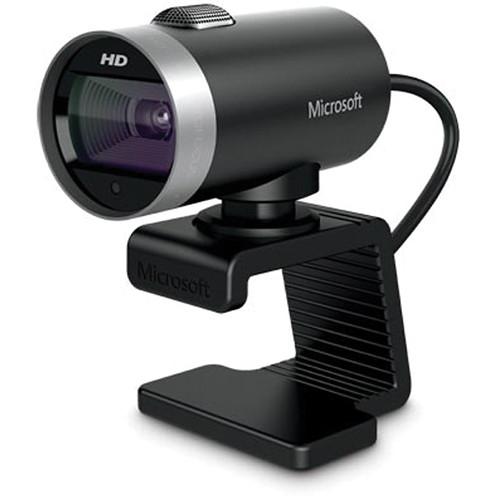

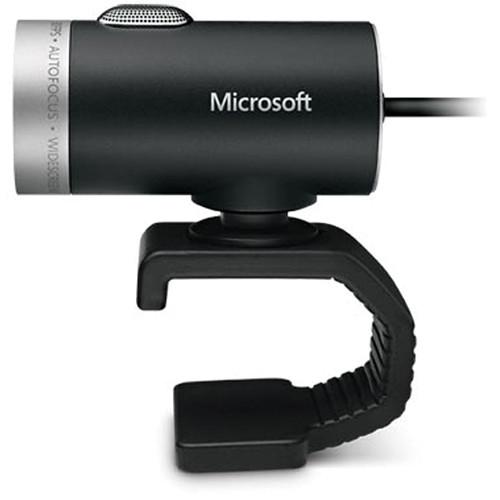

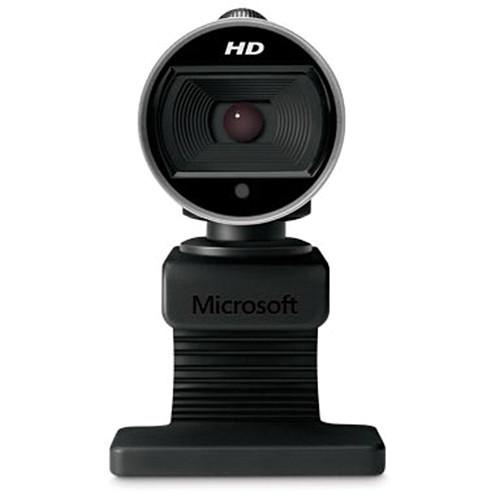

Product description The LifeCam Cinema from Microsoft is a high definition web cam with a 1280 x 720 resolution allowing for 720p HD video chat. The integrated CMOS sensor helps to reduce the blooming effect to avoid overloading of the light sensor which can cause bleeding of light between pixels. As a result, you can take advantage of higher picture quality with reduced bleeding of the light source. The 73° field of view makes it easy to capture wide angle pictures and video, while the 360° rotation capability makes swiveling the camera simple. With a wideband microphone you have the ability to capture quality audio when chatting and recording video. - High-precision glass element lens
- TrueColor Technology with face tracking (TrueColor technology supported on Windows 8, Windows 8.1, and Windows 10)
- Wideband microphone for sound recording
UPC: 885370428520 In the Box Microsoft LifeCam Cinema Limited 3-Year Warranty Brochure PDF 253.6kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Microsoft LifeCam Cinema in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMicrosoft Cinema Specs | | | Interface | USB 2.0 | | Operating System | Microsoft Windows 10, Windows 8.1, Windows 8, Windows 7, and Windows Vista
(TrueColor technology supported on Windows 8, Windows 8.1 and Windows 10) | | Sensor | CMOS sensor technology | | Resolution | •Motion Video: 1280 x 720 pixels video
•Still Image: Up to 5 megapixel (2880 x 1620 pixels, interpolated) photos | | Frames Per Second | Up to 30 fps at 720p | | Field of View | 73° diagonal | | Microphone | Integrated unidirectional digital microphone | | Frequency Response | 200 Hz to 800 Hz, +/-4 dB | | Mounting | Desktop, Laptop, LCD, and CRT universal attachment base | | System Requirements | Requires a PC that meets the requirements for and has installed one of these operating systems:
• Microsoft Windows 10, Windows 8.1, Windows 8, Windows 7, and Windows Vista
• Intel Dual-Core 1.6 GHz (Intel Dual-Core 3.0 GHz recommended)
• 1 GB of RAM (2 GB of RAM recommended)
• 1.5 GB hard drive space
• Windows-compatible speakers or headphones
• USB 2.0
You must accept License Terms for software download. Please download the latest available software version for your OS/Hardware combination.
Internet access may be required for certain features. Local and/or long-distance telephone toll charges may apply.
Software download required for full functionality of all features.
Internet functions (post to Windows Live Spaces, sending e-mail, video calls), also require: Internet Explorer 6/7/8 browser software required for installation; 25 MB hard drive space typically required (users can maintain other default Web browsers after installation)
Video call resolution dependent on messaging client. Basic Video & Audio Functionality with Windows Live Messenger, Microsoft Office Communicator, Yahoo! Messenger, AOL Instant Messenger, and Skype.
Windows Live Movie Maker is only available for Windows 7 and Windows Vista users.
Please note, possible limited functionality when LifeCam Cinema is used with Windows 7 | | Environmental Requirements | Operating Temperature: 32 to 104°F (0 to 40°C)
Operating Humidity: <5 to 80% relative humidity (non-condensing)
Storage Temperature: -40 to 140°F (-40 to 60°C)
Storage Humidity: <5 to 65% relative humidity (non-condensing) | | Certifications | Country of Manufacture
People's Republic of China (PRC)
ISO 9001 Qualified Manufacturer
Yes
ISO 14001 Qualified Manufacturer
Yes
Restriction on Hazardous Substances
This device complies with all applicable worldwide regulations and restrictions including, but not limited to: EU directive 2002/95/EC on the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment and EU Registration Evaluation and Authorization of Chemicals (REACH) regulation regarding Substances of Very High Concern.
FCC ID
This device complies with Part 15 of the FCC Rules and Industry Canada ICES-003. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Tested to comply with FCC standards. For home and office use. Model number: 1393, LifeCam Cinema.
Agency and Regulatory Marks
•ACMA Declaration of Conformity (Australia and New Zealand)
•ICES-003 report on file (Canada)
•EIP Pollution Control Mark, EPUP (China)
•CE Declaration of Conformity, Safety and EMC (European Union)
•WEEE (European Union)
•VCCI Certificate (Japan)
•CITC Letter (Kingdom of Saudi Arabia)
•KCC Certificate (Korea)
•GOST Certificate (Russia)
•UkrSEPRO Certificate (Ukraine)
•FCC Declaration of Conformity (USA)
•UL and cUL Listed Accessory (USA and Canada)
•CB Scheme Certificate (International)
Windows Hardware Quality Labs (WHQL)

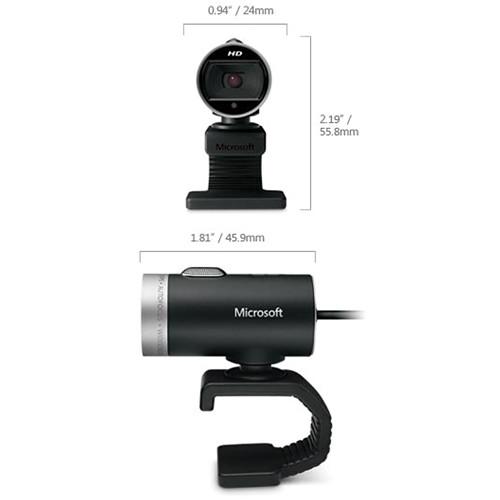

ID: 1509121 Microsoft Windows 8 | | Dimensions (L x W x D) | 2.2 x 1.8 x 1.6" (55.9 x 46 x 40 mm) | | Weight | 3.36 oz (95.3 g) | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 5.9 x 5.7 x 2.4" |
