User Manual for Microsoft Xbox One X Gaming Console Click to enlarge the picture
Contents of the user manual for the Microsoft Xbox One X Gaming Console
- Product category: Xbox One Consoles Microsoft
- Brand: Microsoft
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Microsoft Xbox One Consoles
 |
User manual for the Microsoft Xbox One X Gaming Console contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Microsoft product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Microsoft user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Microsoft product will considerably shorten its lifespan!
|
Product description Back to School Cool: Turbo-Charge Your Dorm Room Read More fsucezesusadzdewvcrsuwcsutfybuu - Project Scorpio Exclusive: Final Specs Revealed!

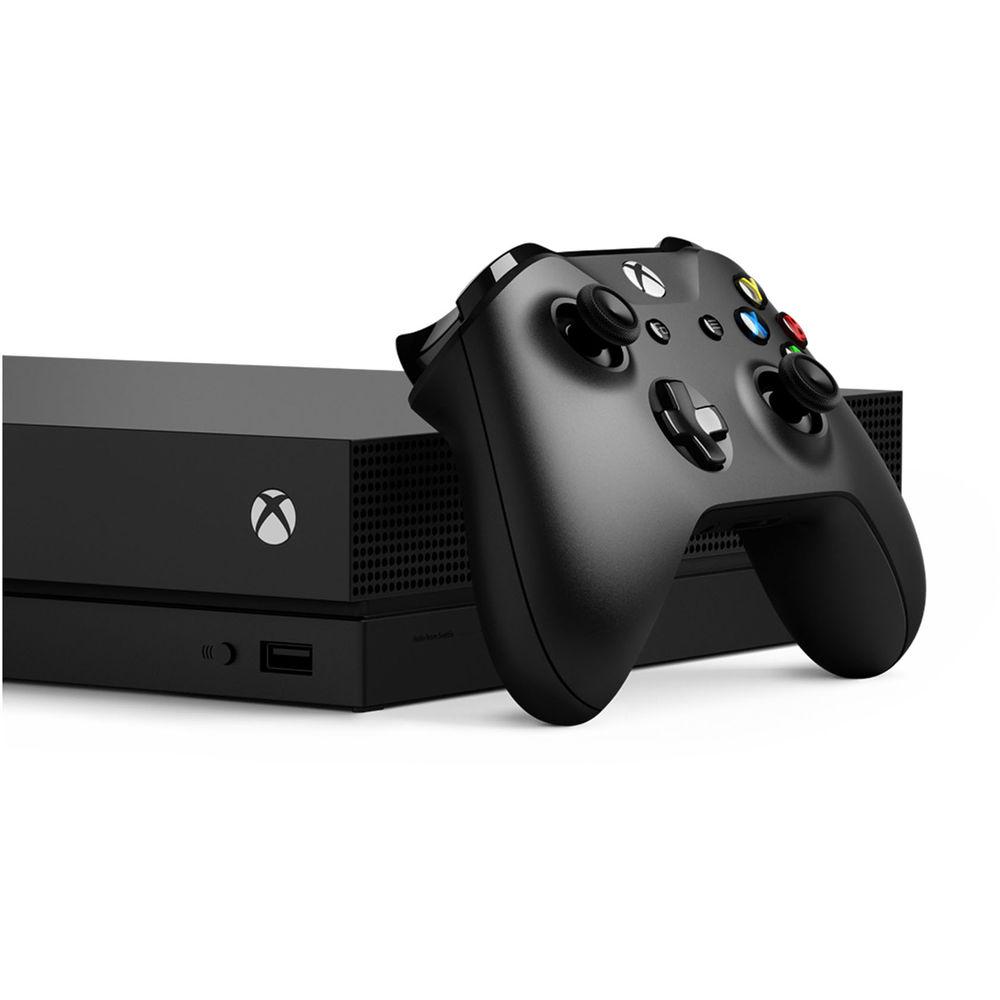

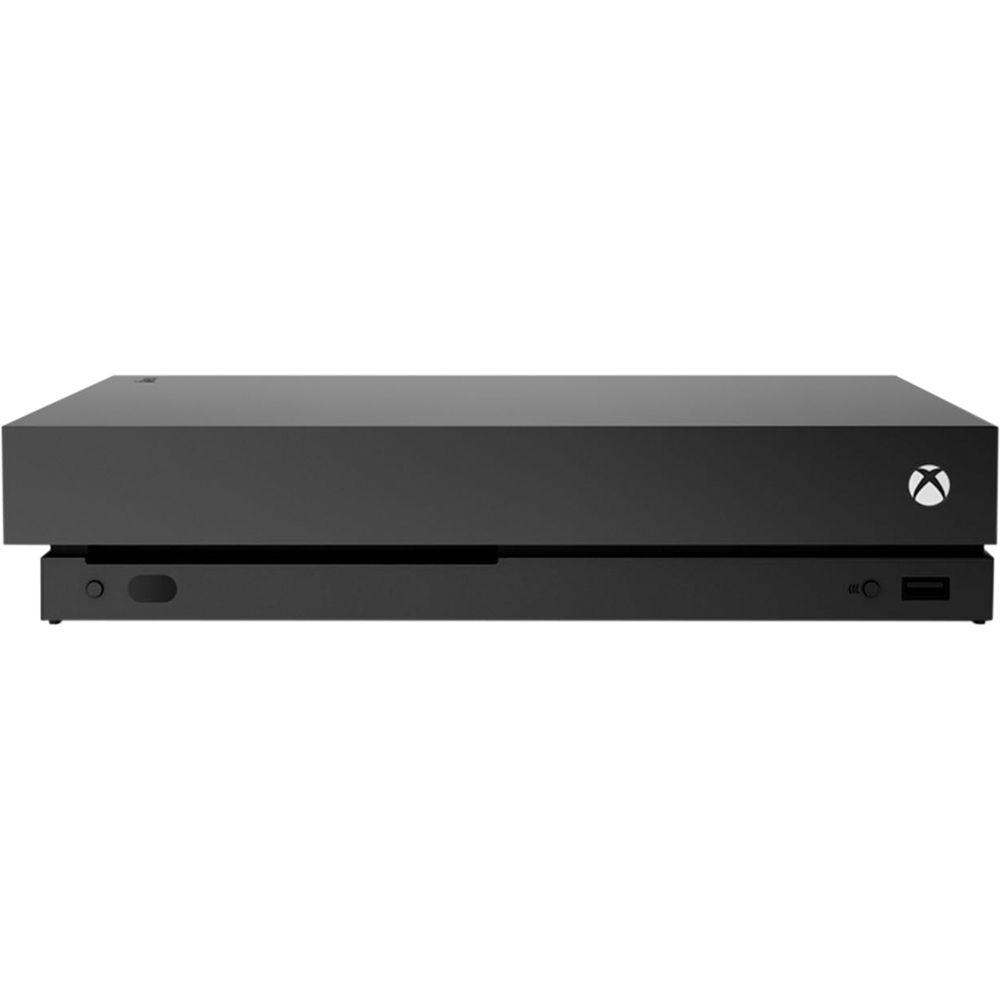

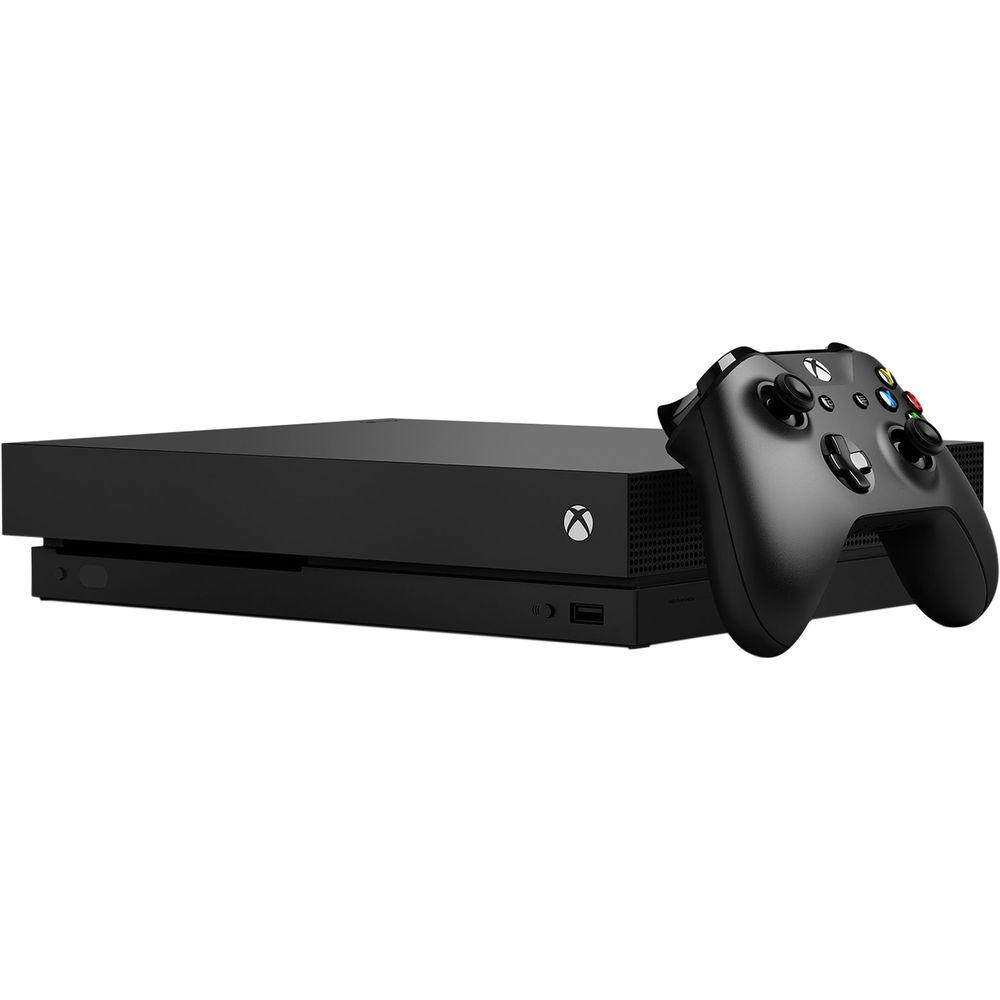

Experience a true 4K and HDR gaming experience with the Microsoft Xbox One X Gaming Console. With 6 Teraflops of graphical power and 12GB of GDDR5 VRAM, the Xbox One X can play games with native 4K resolution running at up to 60 frames per second (fps). It also supports AMD FreeSync, when paired with a compatible monitor, which reduces screen tearing. The Xbox One X also supports HDR10 for a higher contrast ratio. The Xbox One X may excel at playing 4K games, but it's also compatible with all existing Xbox One games, including Xbox Play Anywhere titles. Select games for both the Xbox 360 and original Xbox will also be backward compatible with the Xbox One X. With a 4K UHD Blu-ray Disc player, the Xbox One X can play UHD Blu-ray Discs. The Xbox One X features an HDMI 1.4b input and an HDMI 2.0b output. It also has three USB 3.0 ports as well as an IR out port. For audio, the Xbox One X has a S/PDIF output that supports DTS 5.1, Dolby Digital 5.1, and Dolby TrueHD with Atmos. Go online via wired Ethernet LAN or wireless dual-band Wi-Fi. Sign up for an Xbox Live Gold membership in order to play online multiplayer. - True 4K
- The Xbox One X delivers a true 4K gaming experience with 2160p frame buffers and 6 Teraflops of graphical power.
- High Dynamic Range
- Experience richer, more luminous colors in games. With a higher contrast ratio, High Dynamic Range technology brings out the true visual depth of your games.
- Spatial Sound
- Dolby Atmos and DTS:X enables you to experience premiere audio that puts you in the center of 3D spatial sound.
- Faster Processing
- The 8-core custom AMD CPU is clocked at 2.3 GHz to bring enhanced AI, real world detail, and smoother interactions to your gaming experience.
- More Memory
- 12GB of graphics memory add speed and power to the game's performance, enabling bigger worlds, further horizons, and quicker load times.
- Immersive Worlds
- A 6-teraflop GPU with 326 GB/s of memory bandwidth enables 4K environments and characters to become more realistic, thanks to more detail and smoother animations.
- Leaner and Meaner
- A 40% increase in power doesn't mean an increase in size. In fact, the Xbox One X is the smallest Xbox yet.
- Maxmium Cooling, Minimal Noise

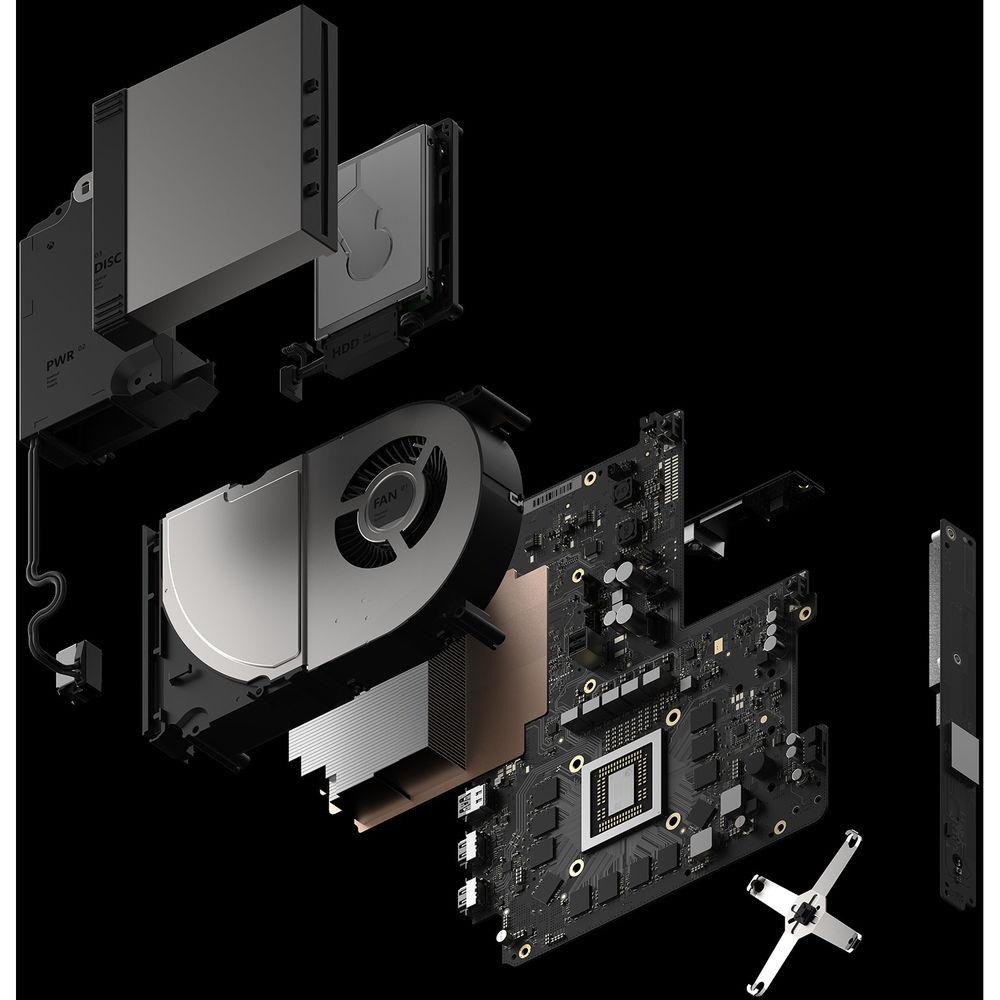

- All that power doesn't mean more heat and noise. The Xbox One X uses advanced liquid cooling and the supercharger-style centrifugal fan to ensure it stays cool.
- Custom Tuned
- To maximize performance and minimize power consumption, the Xbox One X uses the hovis method, a digital power delivery system that custom tunes each console's voltage to its specific motherboard.
UPC: 889842208252 In the Box Microsoft Xbox One X Gaming Console Xbox One Wireless Controller HDMI Cable Power Supply 1-Month Free Xbox Game Pass Subscription 14-Day Free Xbox Live Gold Membership Limited 1-Year Warranty Game On: E3 2017 Is Here Patrick Chiang 06/13/2017 fsucezesusadzdewvcrsuwcsutfybuu Microsoft Unveils the Xbox One X William Min 06/12/2017 How to Maximize Your Gaming Experience with the PS4 and Xbox One Lawrence Neves 07/21/2015 Xbox One and PlayStation 4: Ready for Home Entertainment Primetime? Richard L. Stevens 07/02/2015 E3 2015: The Games Afoot! Scary Larry Neves 06/19/2015 More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Microsoft Xbox One X Gaming Console in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

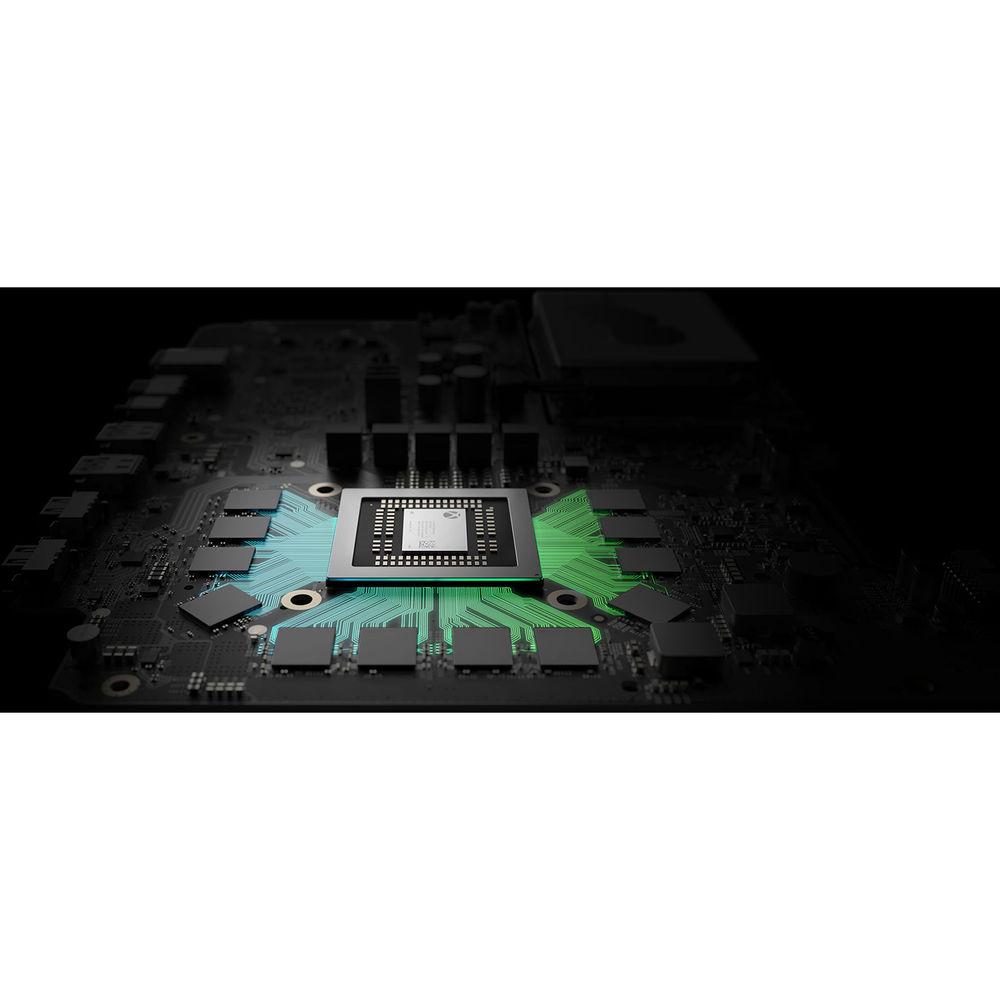

Technical parametersMicrosoft CYV-00001 Specs | | | SoC | 2.3 GHz Custom 8-core x86 AMD Enhanced Jaguar CPU (64-bit)
Custom Arctic Islands-based GPU @ 1.172 GHz
Polaris features
6 TFLOPS | | Memory | 12 GB of GDDR5 RAM | | On-Board Flash Storage | 8 GB | | Internal Storage | 1 TB | | Supported Storage Expansion Options | USB flash drive
Cloud storage
External hard drive | | Optical Drive | Ultra HD Blu-ray
Blu-ray (up to 50 GB)
DVD
CD | | Color Depth | 24-bit (Traditional)
30/36-bit (Deep Color) | | Input/Output Connectors | 3 x USB 3.0
1 x IR out | | IR Blaster | Integrated | | Ethernet | 1 x 10/100/1000 Mbps Gigabit Ethernet RJ-45 LAN | | Wi-Fi | Wi-Fi 5 (802.11ac) Dual-Band (2.4 GHz, 5 GHz) | | | | Video Outputs | 1 x HDMI-in 1.4b
1 x HDMI-out 2.0b
HDMI pass-through supported | | Max Resolution | 2160p (4K UHD) @ 60 Hz
AMD FreeSync
HDMI Variable Refresh Rate (when ratified) | | HDR | HDR10 | | Content Protection | HDCP 2.2 | | Video Codecs | HEVC/H.265
VP9
AVC/H.264
MPEG-2
MPEG-4 Part 2
VC1/WMV9 | | | | Audio Outputs | 1 x S/PDIF | | HDMI Audio | Encoded
Dolby Digital 5.1
DTS 5.1
PCM 2.0, 5.1, and 7.1
Dolby TrueHD w/Atmos (from games)
Pass-Thru
Dolby TrueHD (opt. Atmos)
DD+ (opt. Atmos)
DTS-HR/MA (opt. DTS:X) | | S/PDIF | Dolby Digital 5.1
DTS 5.1
PCM 2.0 | | Audio Codecs | AAC
MP3
MPEG1
WMV | | | | Controllers | Supports up to 8 wireless or infrared controllers
Supports up to 3 wired controllers | | Power Supply | 245 W (internal) | | Dimensions | 11.8 x 9.4 x 2.4" / 30 x 24 x 6 cm | | Weight | 8.4 lb / 3.8 kg | | | | Package Weight | 10.75 lb | | Box Dimensions (LxWxH) | 19.0 x 12.6 x 10.1" |
