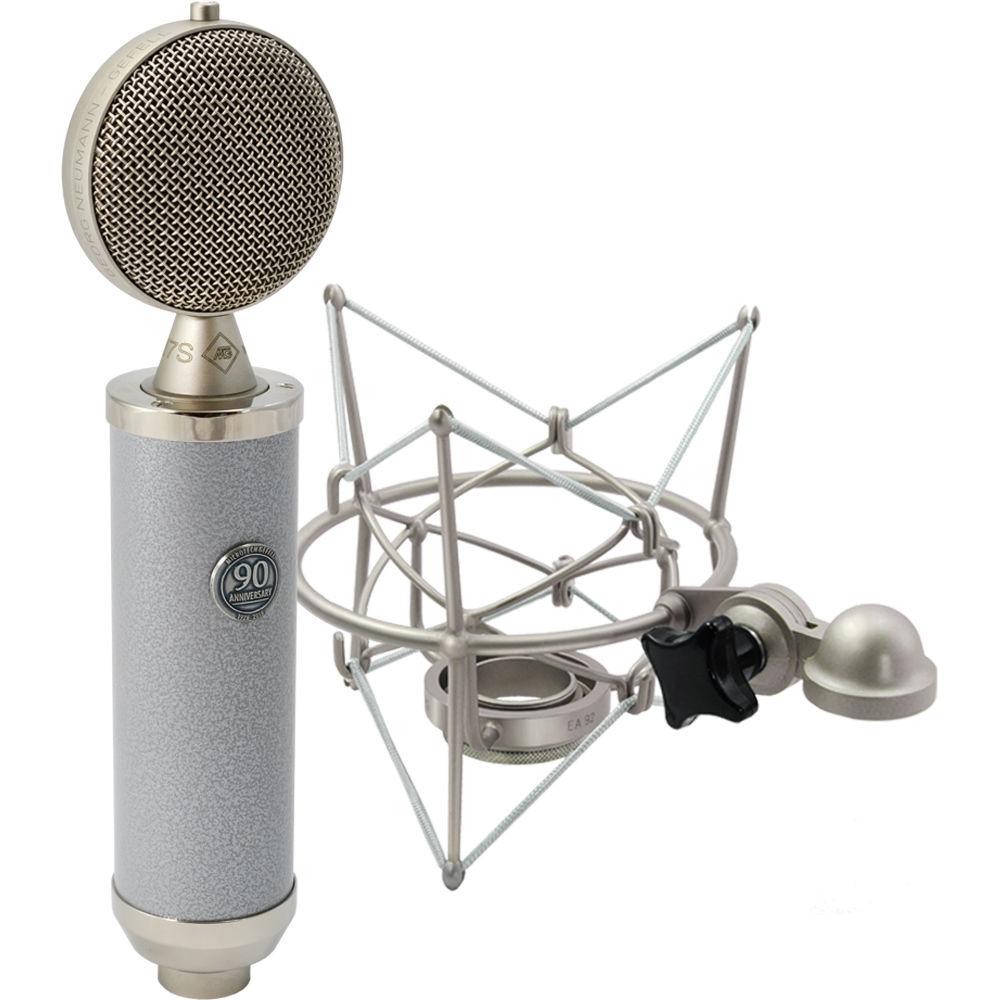

Product description The patina gray 90th anniversary Microtech Gefell CMV 563 / M 7 S is a reissue of the vintage CMV 563, a large-diaphragm tube condenser microphone well suited for reproduction of vocals and a variety of instruments in home, project, and commercial recording studios. The M 7 S gold-plated PVC condenser capsule offers a directional cardioid polar pattern for reduced pickup of off-axis sound, and yields a 20 Hz to 20 kHz frequency range with a gentle presence boost from 2 to 7 kHz. Thanks to a modular capsule design and the supplied G/B bayonet adapter, other capsules such as the vintage M 9 may be used.Utilization of an EF86 pentode tube in triode configuration imparts warmth and fullness without sacrificing high end. The microphone's 7-pin Tuchel jack connects to an external power supply unit, which offers a balanced, low-impedance XLR output for compatibility with most mic preamps. The CMV 563 / M 7 S includes a shockmount, power supply, 7-pin tube mic cable, and wooden storage case. - 90th anniversary reissue of the vintage Microtech Gefell CMV 563
- Warm, full-bodied sound, ideal for vocals and a variety of instruments
- Vacuum tube preamplifier equipped with an EF86 pentode working as a triode
- 20 Hz to 20 kHz frequency range with gentle presence boost from 2 to 7 kHz
- M 7 S gold-plated PVC condenser capsule
- Modular capsule design and supplied G/B bayonet adapter enable swapping to other capsules such the M 7, M 8, M 9, and M 55 K
- Cardioid polar pattern provides front-facing directivity and enhanced off-axis rejection
- 7-pin Tuchel microphone output jack connects to the included power supply unit via the supplied 7-pin cable
- Balanced 3-pin XLR audio output on power supply unit
- Shockmount reduces handling noise and rumble
- Includes wooden storage case to house system components

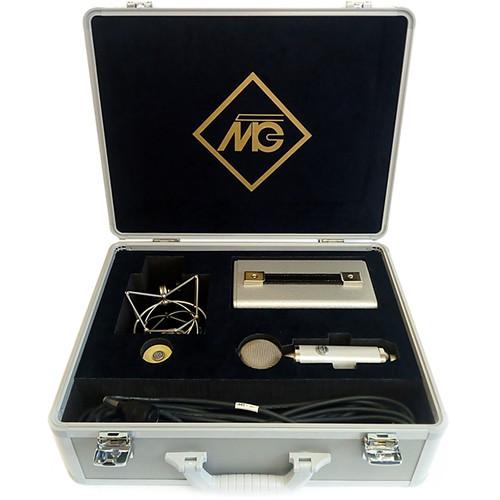

In the Box Microtech Gefell CMV 563 / M 7 S 90th Anniversary Large-Diaphragm Tube Condenser Microphone (Patina Gray) Power Supply Unit Shockmount 7-Pin Tuchel Tube Microphone Cable G/B Bayonet Capsule Adapter Wooden Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Microtech Gefell CMV 563 M 7 S 90th Anniversary Large-Diaphragm Tube Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMicrotech Gefell CMV 563 Specs | | | Sound Field | Mono | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Tube | Yes | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 70 dB CCIR
78 dB A-Weighted | | Equivalent Noise Level | 24 dB CCIR
16 dB A-Weighted | | Maximum SPL | 115 dB SPL | | Pad | None | | Impedance | 200 Ohms | | Sensitivity | 17 mV/Pa at 1 kHz | | Low-Cut Filter | None | | Dynamic Range | 99 dB | | | | Output Connectors | 1 x 7-Pin Tuchel
1 x 3-Pin XLR Microphone: 7-Pin Tuchel
Power Supply: 3-Pin XLR | | AC Input Power | 115 to 230 VAC, 50 / 60 Hz | | Length | 8.50" / 216 mm | | Diameter | 1.65" / 42 mm | | Weight | 1.19 lb / 540 g |
