Microtech Gefell M 930 Studio Condenser

Search your instruction manual in PDF to download

User Manual for Microtech Gefell M 930 Studio Condenser Microphone

Click to enlarge the picture
Microtech Gefell M 930 Studio Condenser Microphone Contents of the user manual for the Microtech Gefell M 930 Studio Condenser
  • Product category: Large Diaphragm Condenser Microtech Gefell
  • Brand: Microtech Gefell
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Microtech Gefell Large Diaphragm Condenser

User manual for the Microtech Gefell M 930 Studio Condenser contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Microtech Gefell product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Microtech Gefell user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Microtech Gefell product will considerably shorten its lifespan!



Product description

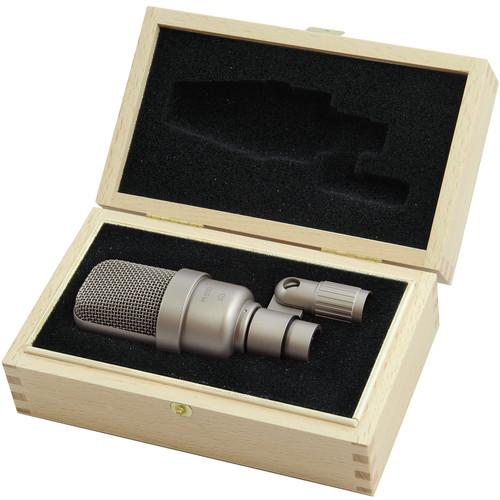

The satin nickel M 930 Studio Condenser Microphone from Microtech Gefell is a cardioid microphone that combines a large-diaphragm capsule with semi-conductor circuit technology. It can be used to capture audio in radio and sound studios, as well as for home-recording applications for singers, speakers, keyboards, strings, wind instruments, and more.The condenser microphone has a balanced frequency response with a slight elevation from 7 to 11 kHz, and a cardioid pick up pattern for a high cancellation of background and lateral sound. Built with an extended modulation range, the circuit design allows for detailed transmission of low sound levels, as well as distortion-free imaging of high sound pressures. The compact microphone housing is mounted with the capsule to dampen body sound and impacts.Furthermore, the microphone is equipped with a 3-pin XLR connector and the power is supplied with standard 48V phantom power. The M 930 Studio Condenser Microphone includes an MH 93.1 microphone holder and a wooden case for storage. In the Box Microtech Gefell M 930 Studio Condenser Microphone (Satin Nickel)
  • MH 93.1 Microphone Holder
  • Wooden Case
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Microtech Gefell M 930 Studio Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Microtech Gefell 211150 Specs

    Sound Field Mono
    Operating Principle Pressure Gradient
    Transducer Condenser
    Tube No
    Polar Pattern Cardioid
    Frequency Range 20 Hz to 20 kHz
    Signal to Noise Ratio 81 dB CCIR
    87 dB A-Weighted
    Equivalent Noise Level 13 dB CCIR
    7 dB A-Weighted
    Maximum SPL 142 dB SPL
    Pad None
    Impedance 100 Ohms
    Sensitivity 21 mV/Pa at 1 kHz
    Low-Cut Filter None
    Dynamic Range 135 dB
    Output Connectors 1 x 3-Pin XLR
    Operating Current Consumption 3.6 mA
    Operating Voltage 48 V
    Length 4.65" / 118 mm
    Diameter 1.77" / 45 mm
    Weight 7.41 oz / 210 g
    Package Weight 1.8 lb
    Box Dimensions (LxWxH) 8.1 x 4.9 x 3.5"
