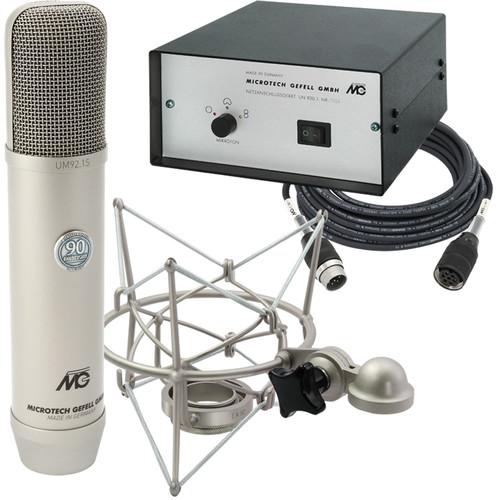

User Manual for Microtech Gefell UM 92.1 S Large-Diaphragm Multi-Pattern Tube Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Microtech Gefell UM 92.1 S Large-Diaphragm
- Product category: Tube Microphones Microtech Gefell
- Brand: Microtech Gefell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Microtech Gefell Tube Microphones
|
User manual for the Microtech Gefell UM 92.1 S Large-Diaphragm contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Microtech Gefell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Microtech Gefell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Microtech Gefell product will considerably shorten its lifespan!
|
Product description The satin nickel Microtech Gefell UM 92.1 S is a large-diaphragm multi-pattern tube condenser microphone offering low noise and high sensitivity for musicians, singers, producers, and engineers in studio and live stage applications. Its M 7 capsule features dual large-diaphragm, gold-plated PVC membranes and selectable omnidirectional, cardioid, and figure-8 polar patterns, making it ideal for close- and distant-miking vocals and instruments. With an EF86 vacuum tube and a 20 Hz to 20 kHz frequency response, the UM 92.1 S delivers a balance of accuracy and warmth. The supplied shockmount prevents vibrations traveling through your mic stand from reaching the mic, and the removable windscreen reduces noise from wind and HVAC systems. The UM 92.1 S includes an external power supply, a 7-pin tube microphone cable, and a sturdy aluminum suitcase. - Incorporates Microtech Gefell's classic M 7 capsule
- Dual large-diaphragm, gold-plated PVC membranes
- Selectable omnidirectional, cardioid, or figure-8 polar pattern allows versatility for a variety of close- and distant-miking applications
- EF86 pentode vacuum tube is utilized as a triode for its sonic characteristics
- Warm, full-bodied sound with a high signal-to-noise ratio
- High sensitivity contributes to strong output signal
- Tuchel 7-pin output on microphone, and XLR 3-pin output on power supply
- Includes external power supply, 7-pin tube microphone cable, elastic shockmount, windscreen, and aluminum suitcase
In the Box Microtech Gefell UM 92.1 S Large-Diaphragm Multi-Pattern Tube Condenser Microphone (Satin Nickel) External Power Supply 7-Pin Tube Microphone Cable Shockmount Windscreen Aluminum Suitcase Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Microtech Gefell UM 92.1 S Large-Diaphragm Multi-Pattern Tube Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMicrotech Gefell 2111195 Specs | | | Sound Field | Mono | | Operating Principle | Pressure Gradient
Pressure Operated | | Transducer | Condenser | | Tube | Yes | | Polar Pattern | Cardioid, Figure-8, Omnidirectional | | Pattern Selection | Switched | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 69 dB CCIR
77 dB A-Weighted | | Equivalent Noise Level | 25 dB CCIR
17 dB A-Weighted | | Maximum SPL | 120 dB SPL | | Pad | None | | Impedance | 200 Ohms | | Sensitivity | 15 mV/Pa at 1 kHz | | Low-Cut Filter | None | | Dynamic Range | 103 dB | | | | Output Connectors | 1 x 7-Pin Tuchel
1 x 3-Pin XLR Microphone Output: Tuchel 7-pin
Power Supply Output: XLR 3-pin | | Length | 7.76" / 197 mm | | Diameter | 1.65" / 42 mm | | Weight | 15.17 oz / 430 g |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 81 owners. Add your rating and experience with the product.
