User Manual for MicW i437L Kit Omnidirectional Measurement Microphone with Accessories Click to enlarge the picture
Contents of the user manual for the MicW i437L Kit Omnidirectional Measurement Microphone
- Product category: Mobile Microphones MicW
- Brand: MicW
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MicW Mobile Microphones
 |
User manual for the MicW i437L Kit Omnidirectional Measurement Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MicW product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MicW user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MicW product will considerably shorten its lifespan!
|

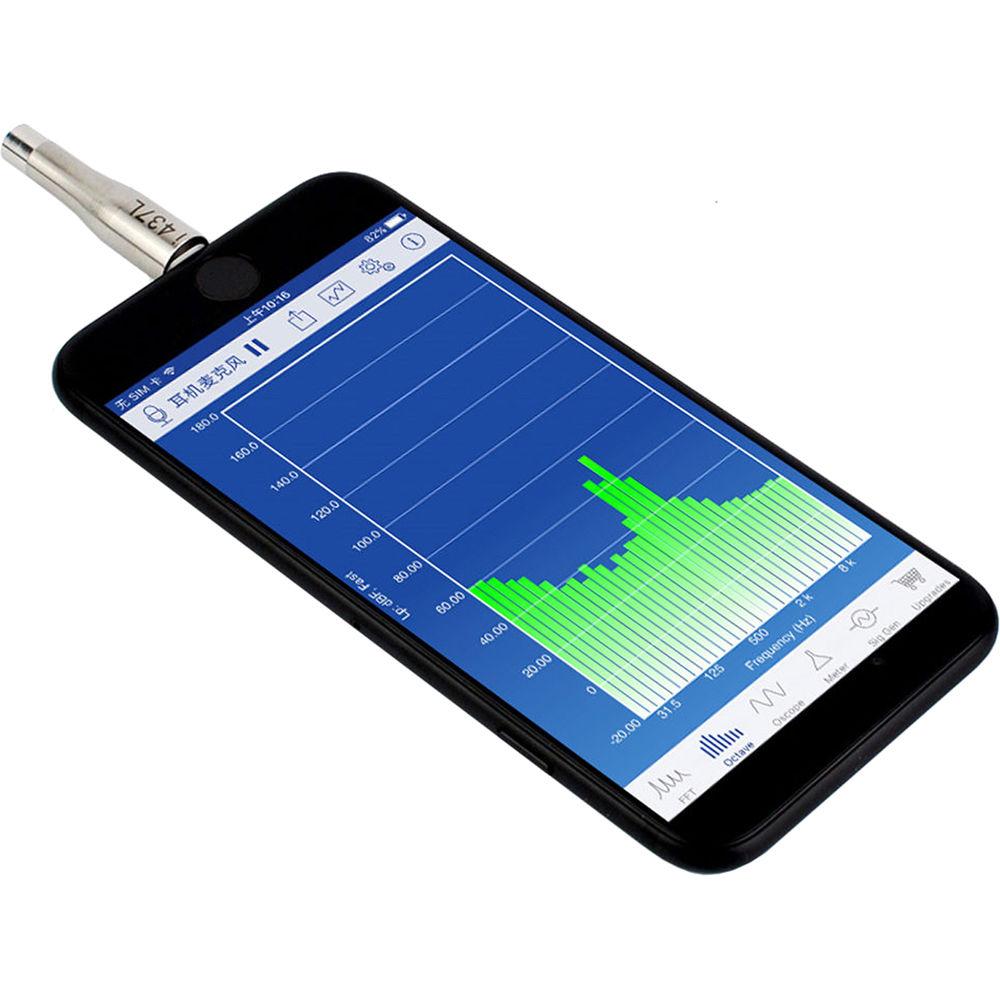

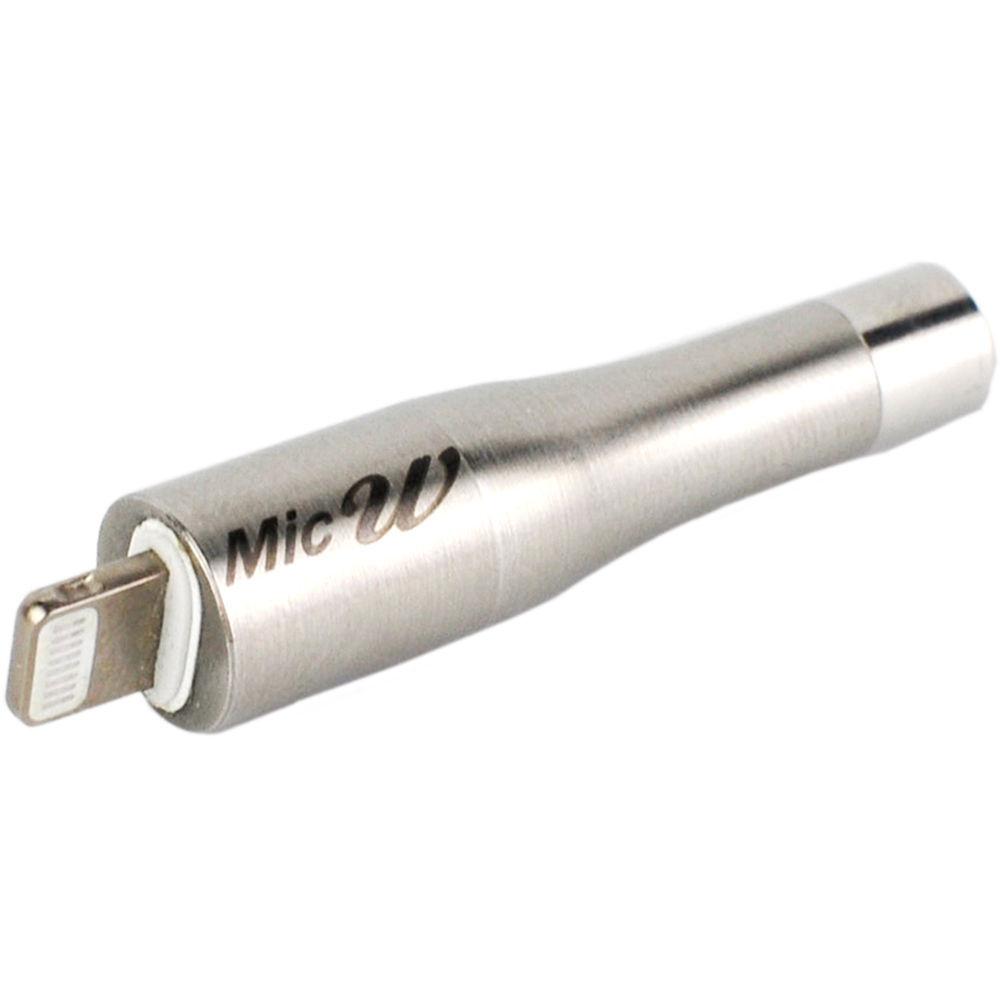

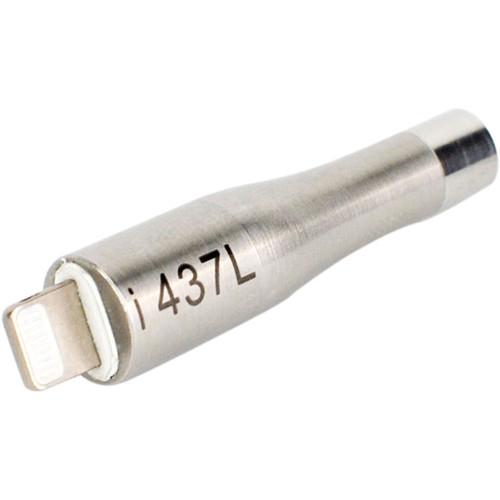

Product description The i437L Kit from MicW includes the Lightning-equipped i437L omnidirectional electret condenser microphone, windscreen, collar/lapel clip, 3.3' Lightning extension cable, and an aluminum stand mount that doubles as a storage tube. Offering an accurate frequency response, compatibility with iOS devices, and convenient mounting methods, it serves as a reliable measurement microphone setup for engineers, producers, and technicians in recording studios and live stage applications. - i437L Omnidirectional Measurement Microphone (Lightning Connector) The i437L from MicW is an electret condenser microphone designed to provide portable and convenient frequency and level analyzation for audio engineers and technicians in live venues, recording facilities, and personal studios. When combined with a compatible Lightning-capable device, you can use the mic for SPL metering, room response measurement, and monitor calibration, effectively creating a compact real-time analyzer (RTA).This electret condenser features a 7mm capsule and an omnidirectional polar pattern, which yield a frequency response of 20 Hz to 20 kHz. Each i437L is calibrated at the factory and complies with the IEC 61672 Class 2 sound level meter standard. The included windscreen reduces wind noise and protects the mic from moisture and dust.
- The Lightning connector provides direct connectivity with Lightning-capable devices such as the iPhone 7 and the iPad 4
- The sensitivity and frequency response of each microphone is calibrated at the factory
- Electret condenser element and omnidirectional polar pattern enable sound pickup from all directions
- 20 Hz to 20 kHz frequency response allows accurate measurement of broadband content
- Included windscreen reduces wind noise and protects the mic from moisture and dust
- Collar Clip for i436, i456 & i266 Microphones The Collar Clip from Mic-W is designed to hold Mic-W's i436, i456 or i266 microphone and attach to a shirt collar during audio recordings.
In the Box Bundle Items i437L Omnidirectional Measurement Microphone (Lightning Connector) Collar Clip for i436, i456 & i266 Microphones
Also Includes - 3.3' Lightning Extension Cable
- Aluminum Storage Tube / Stand Mount
Table of Contents
|
Upload User Manual
Have you got an user manual for the MicW i437L Kit Omnidirectional Measurement Microphone with Accessories in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - i437L Omnidirectional Measurement Microphone (Lightning Connector)
| Microphone Type | Electret condenser | | Capsule Diameter | 0.3" / 7 mm | | Polar Pattern | Omnidirectional | | Frequency Response | 20 Hz to 20 kHz | | Sensitivity | -27.5 dBFS / 94 dB SPL @ 1 kHz (±3 dB) | | Signal to Noise Ratio | >62 dB | | Operating Temperature | -4 to 122°F / -20 to 50°C | | Power Requirements | Powered via Lightning port | | Connector | Lightning | | Length | 2" / 50 mm | | Weight | 0.4 oz / 10 g | | | | Box Dimensions (LxWxH) | 2.4 x 2.3 x 1.3" | - Collar Clip for i436, i456 & i266 Microphones
| | | Box Dimensions (LxWxH) | 3.4 x 2.0 x 0.03" |
