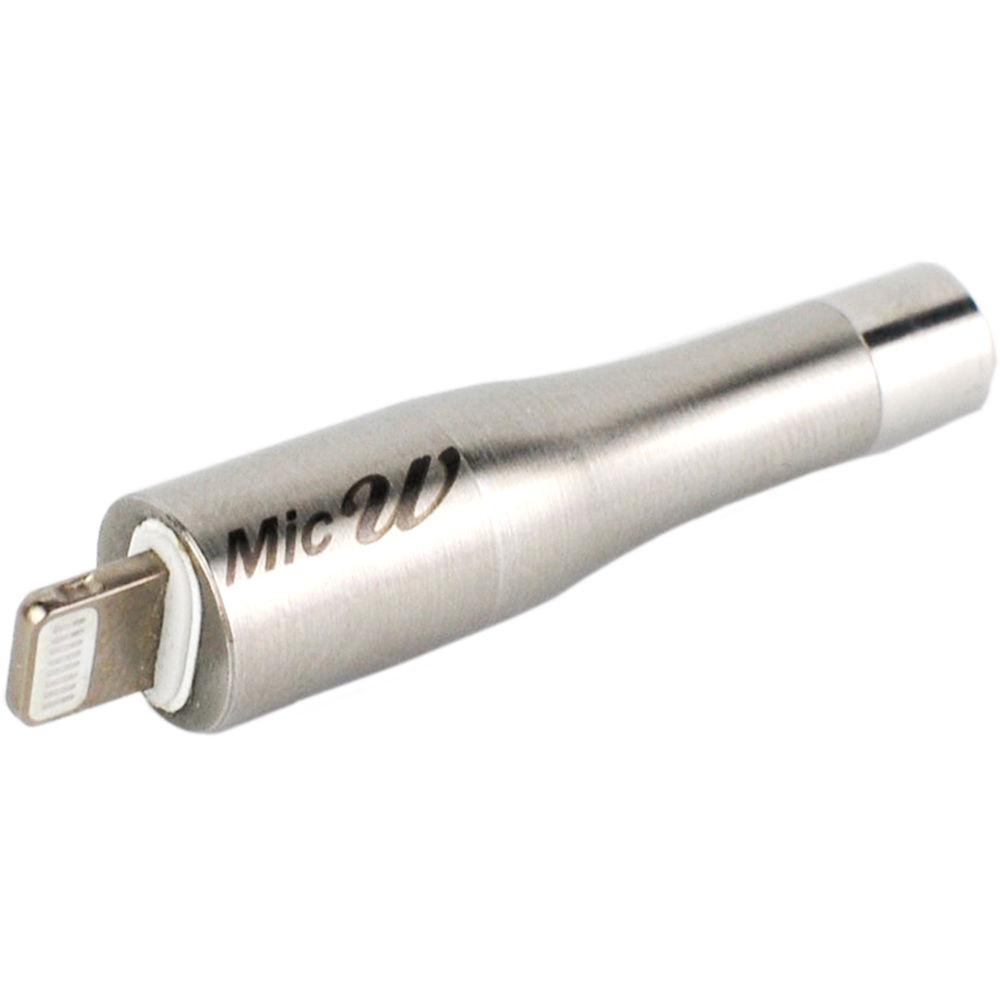

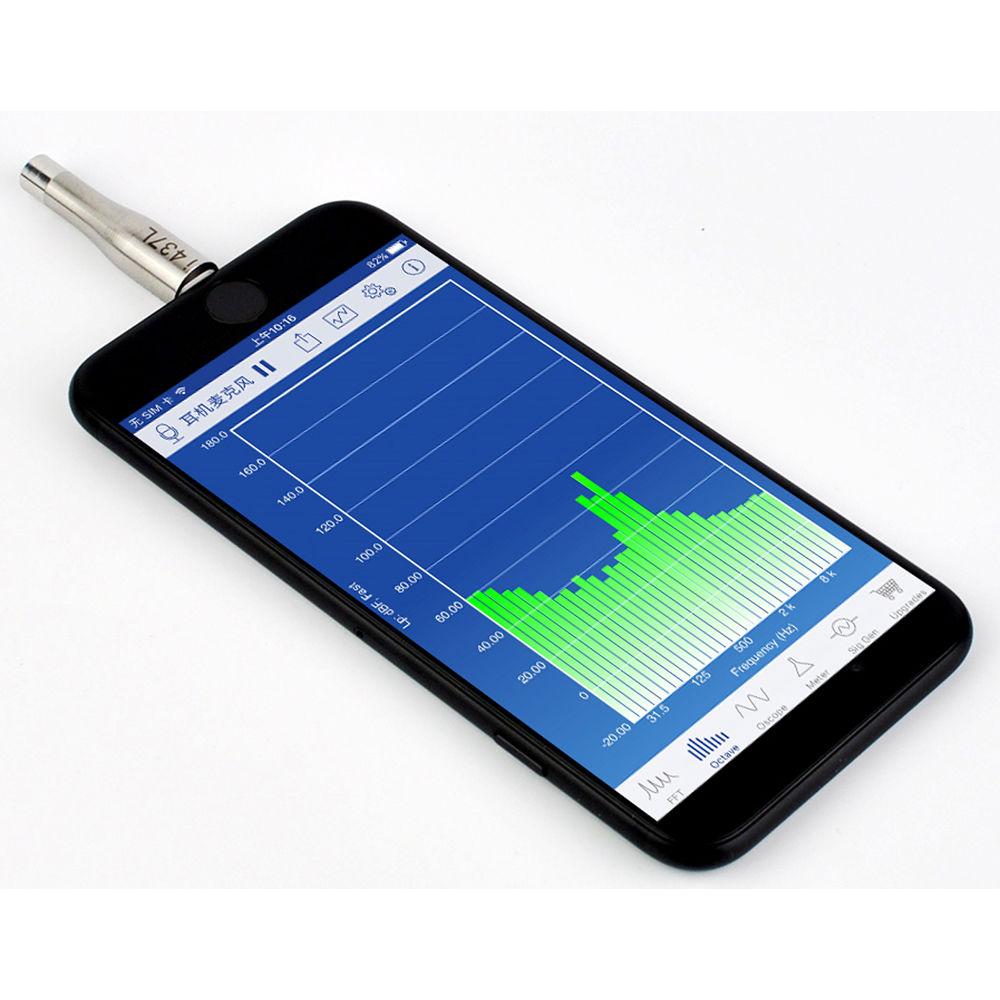

Product description The i437L from MicW is an electret condenser microphone designed to provide portable and convenient frequency and level analyzation for audio engineers and technicians in live venues, recording facilities, and personal studios. When combined with a compatible Lightning-capable device, you can use the mic for SPL metering, room response measurement, and monitor calibration, effectively creating a compact real-time analyzer (RTA).This electret condenser features a 7mm capsule and an omnidirectional polar pattern, which yield a frequency response of 20 Hz to 20 kHz. Each i437L is calibrated at the factory and complies with the IEC 61672 Class 2 sound level meter standard. The included windscreen reduces wind noise and protects the mic from moisture and dust. - The Lightning connector provides direct connectivity with Lightning-capable devices such as the iPhone 7 and the iPad 4
- The sensitivity and frequency response of each microphone is calibrated at the factory
- Electret condenser element and omnidirectional polar pattern enable sound pickup from all directions
- 20 Hz to 20 kHz frequency response allows accurate measurement of broadband content
- Included windscreen reduces wind noise and protects the mic from moisture and dust
In the Box MicW i437L Omnidirectional Measurement Microphone (Lightning Connector) Windscreen Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MicW i437L Omnidirectional Measurement Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMicW i437L Specs | Microphone Type | Electret condenser | | Capsule Diameter | 0.3" / 7 mm | | Polar Pattern | Omnidirectional | | Frequency Response | 20 Hz to 20 kHz | | Sensitivity | -27.5 dBFS / 94 dB SPL @ 1 kHz (±3 dB) | | Signal to Noise Ratio | >62 dB | | Operating Temperature | -4 to 122°F / -20 to 50°C | | Power Requirements | Powered via Lightning port | | Connector | Lightning | | Length | 2" / 50 mm | | Weight | 0.4 oz / 10 g | | | | Package Weight | 0.1 lb | | Box Dimensions (LxWxH) | 2.4 x 2.3 x 1.3" |
