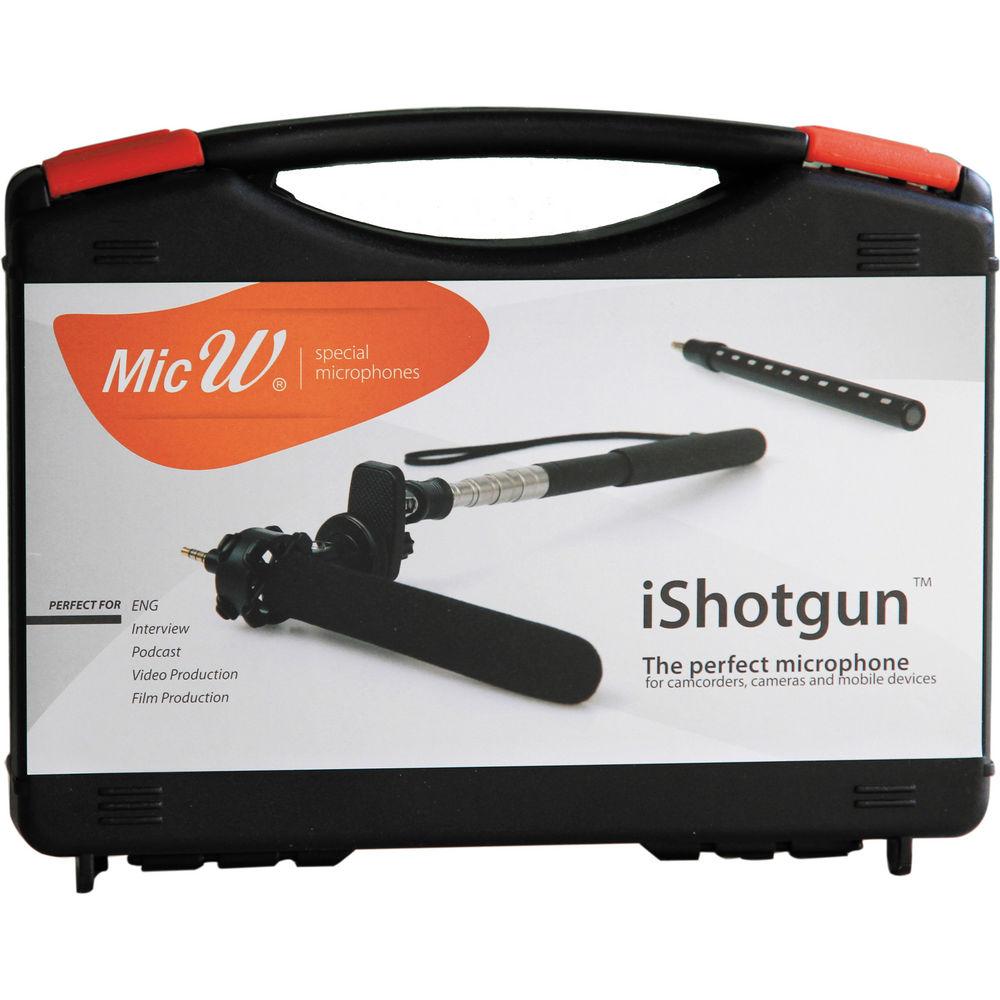

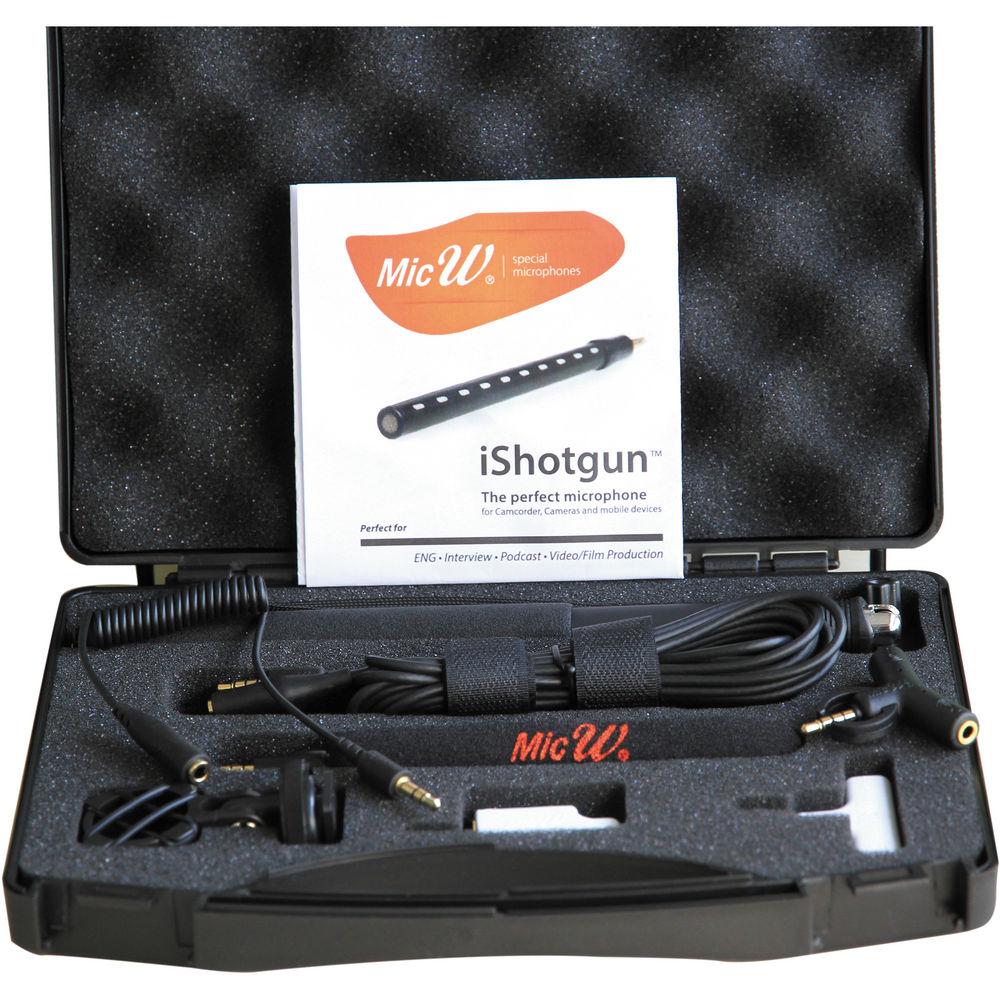

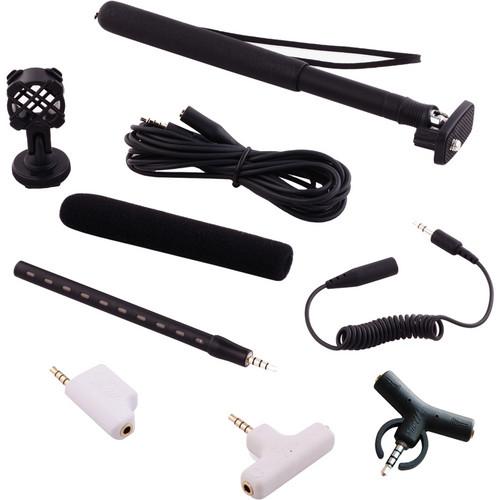

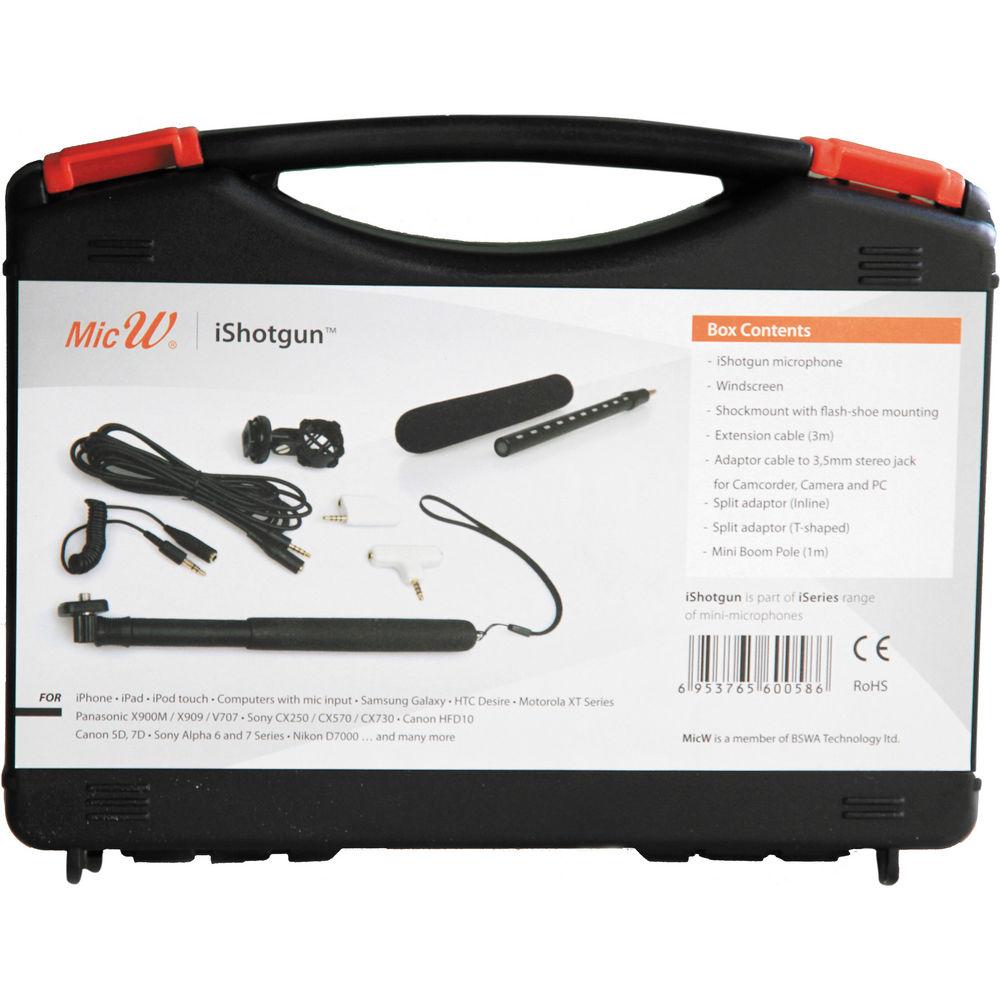

Product description The iShotgun Kit from MicW includes an iShotgun Microphone, a WS810 windscreen, a BM100 mini boompole, a PP013 shock and camera mount, a CB030S 3m shielded cable, a CB002S 0.2m adapter cable for DSLRs, a SA012 T connector (accommodating 1 microphone and 1 headset), and a SA011 split connector for 3.5mm microphone input and headphone output jacks. With this product, you should have everything you'd need to pair up the MicW iShotgun microphone with iOS devices, tablets, and DSLR cameras. - iShotgun Professional Microphone The iShotgun Professional Microphone from MicW is a super cardioid shotgun for smartphones such as iPhones, tablets and DSLR cameras. It has a nice fit, thanks to its small dimensions and low weight, which makes it easy to fix on an iPhone or camera. The super directional patterns eliminate unwanted background noise during recordings. The iShotgun is suitable for mobile journalists and audio professionals. It has been tested for the following devices: iPhone 3, 4, 4S, and 5; iPad 2 , 3, 4, and mini ipod touch, Mac book, Samsung Galaxy, HTC Desire, Canon 5D, 7D, 60D, Sony Alpha 6 and 7 series, Nikon D7000, Panasonic X900M/X909/V707, Sony CX250/CX570/CX730, Canon HFD10, computers with microphone input.
- WS810 Windscreen for iSeries Microphone The WS810 Windscreen for iSeries Microphone from MicW is one of the components of the iShotgun kit.
- BM100 Mini Boompole The BM100 Mini Boompole from MicW is one of the components of the iShotgun kit.
- PP013 Shockmount for Camera Flash Shoe Mount The PP013 Shockmount from MicW is a four-point, silicone suspension shockmount designed for the iSeries shotgun microphone (sold separately). It can be used to attach the microphone to the built-in flash shoe mount on the camera.
- CB030S Shielded Extension Cable (9.8') The CB030S Shielded Extension Cable from MicW is a 9.8’ (3 m) long shielded cable. It is one of the components of the iShotgun kit.
- CB002S Adapter Cable for DSLR camera The CB002S Adapter Cable for DSLR Camera from MicW is a 0.7' (0.2m) long shielded cable. It is one of the components of the iShotgun kit.
- T-Split Adapter for i Series Microphones The Mic-W T-Split Adapter allows you to split the signal from your iPhone, iPod touch or iPad to a pair of headphones and a Mic-W i Series microphone.
- Split Adapter for i Series Microphones The Split Adapter from Mic-W allows you to use any of the Mic-W i series microphones with headphones to monitor your audio recordings. The adapter has a 3.5mm mic input and 3.5mm headphone output.
In the Box Bundle Items iShotgun Professional Microphone bvcbawzaurzddwxw - Limited 1-Year Warranty on Parts, Labor & Backlight
WS810 Windscreen for iSeries Microphone - Limited 1-Year Warranty on Parts & Labor
BM100 Mini Boompole - Limited 1-Year Warranty on Parts & Labor
PP013 Shockmount for Camera Flash Shoe Mount bvcbawzaurzddwxw CB030S Shielded Extension Cable (9.8') - Limited 1-Year Warranty on Parts & Labor
CB002S Adapter Cable for DSLR camera - Limited 1-Year Warranty on Parts & Labor
T-Split Adapter for i Series Microphones Split Adapter for i Series Microphones
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the MicW iShotgun Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - iShotgun Professional Microphone
| Type | Electret Condenser | | Diameter | 0.3" (8.0 mm) | | Length | 5.3" (13.6 cm) | | Principle of Operation | Interference tube | | Polar Pattern | Super cardioid | | Sensitivity | Sensitivity(±3dB): -42 dB (8mV/Pa) | | Frequency Response | 100 Hz to 18 kHz | | Maximum SPL | 115 dB | | Signal to Noise Ratio | More than 65 dB | | Impedance | Less than 2.2 kΩ | | Power Source | Plug and play | | Connector | 3.5 mm 4-pole headset | | Broadcasting System | Live interview, video interview, ENG, podcasts, and film/video production | | Compatible With | DSLR cameras like Canon, Sony, and Nikon | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Weight | 0.7 oz (20 g) | | | | Box Dimensions (LxWxH) | 9.1 x 7.0 x 1.9" | - WS810 Windscreen for iSeries Microphone
| | | Box Dimensions (LxWxH) | 5.0 x 3.5 x 0.2" | - BM100 Mini Boompole
| | | Box Dimensions (LxWxH) | 9.0 x 1.5 x 1.0" | - PP013 Shockmount for Camera Flash Shoe Mount
| Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 4.0 x 3.0 x 1.0" | - CB030S Shielded Extension Cable (9.8')
| | | Box Dimensions (LxWxH) | 5.7 x 2.4 x 0.9" | - CB002S Adapter Cable for DSLR camera
| | | Box Dimensions (LxWxH) | 5.2 x 3.4 x 0.5" | - T-Split Adapter for i Series Microphones
| | | Box Dimensions (LxWxH) | 3.1 x 0.2 x 0.1" | - Split Adapter for i Series Microphones
| Connector 1 | 1 x 1/8" (3.5 mm) female | | Connector 2 | 1 x 1/8" (3.5 mm) male | | | | Box Dimensions (LxWxH) | 4.0 x 2.5 x 0.5" |
