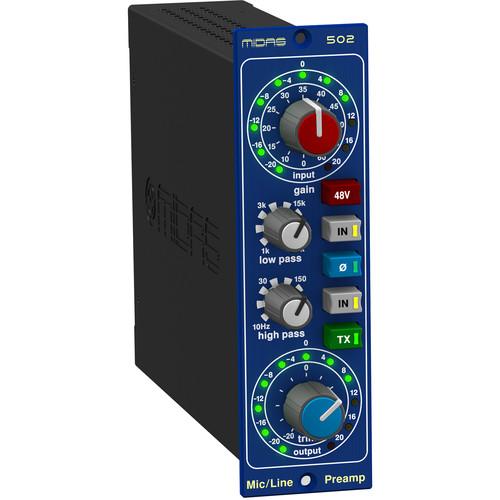

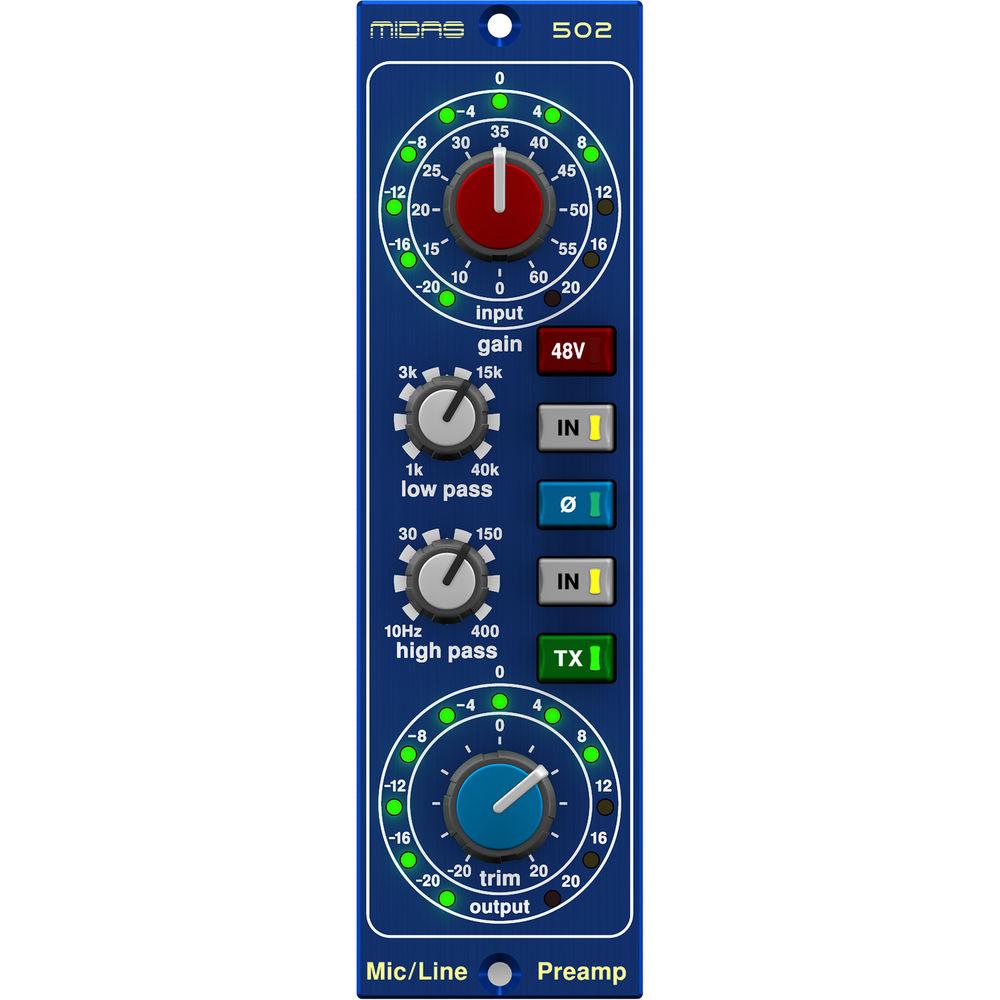

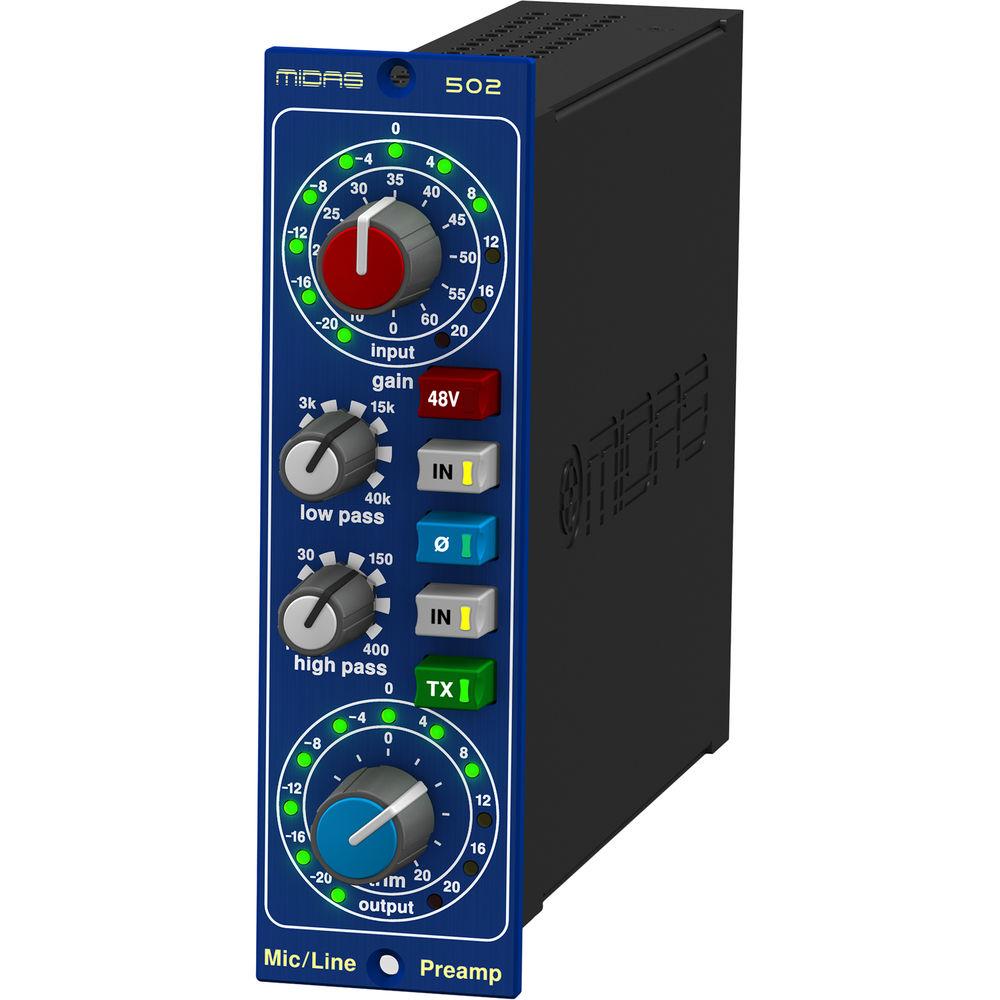

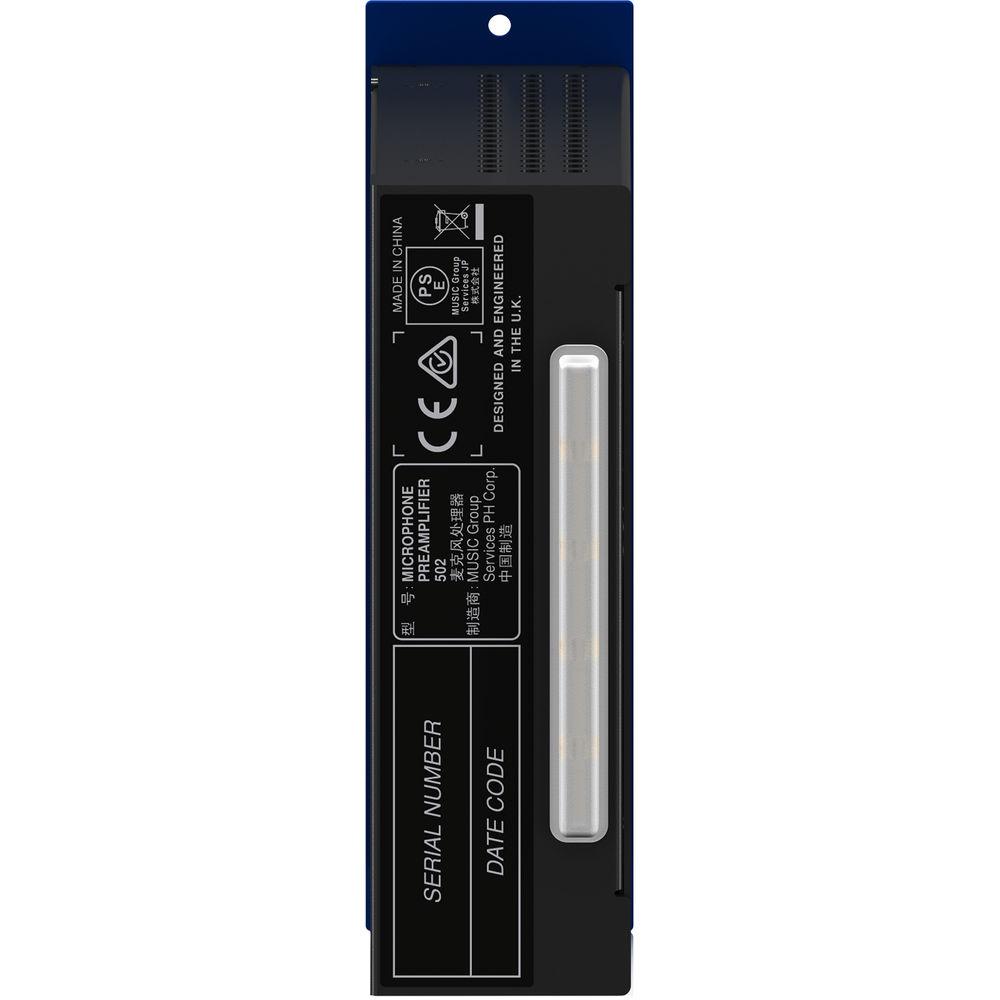

Product description The Midas 502 Modular Microphone Preamplifier is a 500-series module offering professional microphone and line pre-amplification in a compact format for live sound and professional recording environments. The 502's design utilizes premium circuits based on the highly-acclaimed XL4 mixing console and includes the variable high-pass and low-pass filters, as well as an electronically balanced or transformer-balanced output.
The Midas 502's overload tolerant input can handle up to +24 dB of input gain with no pad requirement, while featuring soft-clipping characteristics that provides crystal-clear audiophile reproduction with the right amount of harmonics. The default electronically balanced output provides an extremely clean signal, even when operating at high signal levels, while engaging the transformer-balanced output provides galvanic isolation and generates a more vintage sound, and becomes saturated at lower frequencies to add color when driven hard. The output levels of the electronic and transformer outputs are matched to allow true A-B comparisons on the fly. Other notable features include the precision LED I/O metering, which utilizes an 11-segment rotary LED meter and illuminated switches for status verification. Note: 500-Series modules require an optional power supply and enclosure -
- High-performance, compact 500-Series premium MIDAS microphone/line preamplifier
- MIDAS amp has been enhanced with quad discrete ultra-low noise input transistors
- MIDAS input allows up to +24 dBu signal levels with no pad while featuring soft clipping characteristic
- Classic MIDAS XL4 swept low- and high-pass filters with independent selection switches
- Switchable electronic or discrete transistor driven transformer balanced output for sonic flexibility
- Unique twin-precision 11-segment LED circular input and output level metering
- High-accuracy rotary switch gain control with 60 dB range in 5 dB steps
- Output gain trim with ±20 dB range controls input and output stage coloration
- Total gain range is -20 to +80 dB, easily accommodating low output mics
- Large gain trim knobs provide precise control of input and output gains
- Illuminated switches for filters, +48V, polarity reverse and electronic/transformer output select
- Power up mute relays prevent switch on thumps
- Premium quality components throughout for a crystal-clear audiophile signal path
- Limited 3-year warranty program
UPC: 748252179548 In the Box Midas 502 Modular 500-Series Microphone Preamplifier with Classic XL4 Filters Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Midas 502 Modular 500-Series Microphone Preamplifier with Classic XL4 Filters in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMidas MICROPHONEPREAMP502 Specs | Controls | Phantom Power: 48 V switch
Input Gain, Mic/Line: 12-position rotary switch, 0 to 60 dB knob
Polarity: 0/180° switch
Low-Pass Filter: In/out switch, frequency knob
High-Pass Filter: In/out switch, frequency knob
Output Trim / Line Gain Trim: ±20 dB knob
Output Type (Electronic or Transformer): Electronic / transformer switch | | Inputs and Outputs | Input: Mono, balanced mic or line
Output: Mono, balanced via electronic or transformer | | Noise | Noise at Unity Gain: -97 dBu (22 Hz to 22 kHz)
Mic EIN Noise: -127 dBu (22 Hz to 22 kHz, at +60 dB gain, 150-Ohm source) | | CMRR | Unity Gain (1 kHz): -70 dB (typical)
+60 dB Gain (1 kHz): -100 dB (typical) | | Input Impedance | 10 kOhms (1 kHz) | | Frequency Response | Electronic Output: 20 Hz to 40 kHz (±0.5 dB)
Transformer Output: 20 Hz to 20 kHz (±0.5 dB) | | Distortion | Distortion (electronic output at unity gain, 1 kHz)
0 dBu: <0.005%
+10 dBu: <0.005%
+20 dBu: <0.01%
Distortion (transformer output at unity gain, 1 kHz)
0 dBu: <0.01%
+10 dBu: <0.01%
+20 dBu: <0.02% | | Maximum Input Level | +24 dBu (1 kHz) | | Maximum Output Level | Electronic: +26 dBu (1 kHz)
Transformer: +21 dBu (1 kHz) | | Output Impedance | 50 Ohms (1 kHz) | | Filters | Low Pass: 1 to 40 kHz, slope = 12 dB per octave
High Pass: 10 to 400 Hz, slope = 12 dB per octave | | Meters | Input and Output Meters: 11 segment, -20 to +20 dBu in 4 dB steps | | Power | Voltage: +16 V and -16 V
Power Consumption: 100 mA, 3.2 W | | Dimensions (H x W x D) | 5.2 x 1.5 x 6.9" / 132.0 x 38.0 x 174.0 mm | | Weight | 1.5 lb / 0.7 kg |
