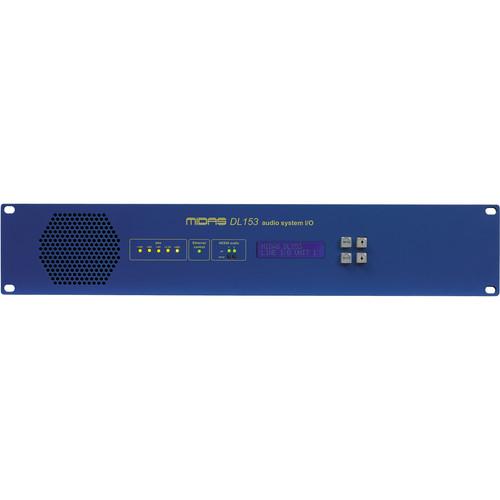

User Manual for Midas DL153 - Stagebox with 16 MIDAS Mic Preamps and Dual-Redundant AES50 Networking Click to enlarge the picture
Contents of the user manual for the Midas DL153 - Stagebox with 16
- Product category: Networked Audio Systems Midas
- Brand: Midas
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Midas Networked Audio Systems
|
User manual for the Midas DL153 - Stagebox with 16 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Midas product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Midas user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Midas product will considerably shorten its lifespan!
|
Product description The DL153 from MIDAS is a sixteen input, eight output stagebox that delivers the company's legendary sound quality in a cost effective, rugged 19", 2U rack mount chassis. Equipped with sixteen MIDAS microphone preamplifiers with 2.5 dB gain steps, eight balanced line level outputs and dual redundant AES50 network ports, the unit is the ideal partner to the PRO1 and PRO2 digital consoles, significantly increasing the network capacity and number of microphone inputs and analog outputs.
Interface controls and feedback are available via the intuitively laid out front panel. The controls and LED indicators provide ease of use and instant status feedback. All primary connections use high quality balanced XLR connectors and the road-ready unit is ideally suited for mounting in an optional standard flight case. - Sixteen MIDAS analog microphone preamps with switchable +48V phantom power
- Eight active-balanced low-impedance line level outputs
- Selectable 96 or 48 kHz sample rate operation
- Dual AES50 Neutrik etherCON network ports with LED status indicators
- All settings programmable from front panel controls or console
- Remote operation up to 100 meters via CAT5 cable
- PSU status indicator LEDs and configuration LCD display on front panel
- Rugged 2U rack-mount chassis for durability in portable applications
- Auto-ranging universal switch-mode power supply
UPC: 696859054594 In the Box Midas DL153 - Stagebox with 16 MIDAS Mic Preamps and Dual-Redundant AES50 Networking AC Power Cable Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Midas DL153 - Stagebox with 16 MIDAS Mic Preamps and Dual-Redundant AES50 Networking in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMidas DL153 Specs | Sample Rates | 48 or 96 kHz | | Analog Inputs | 16 x XLR 3-pin female microphone | | Analog Outputs | 8 x XLR 3-pin male line | | Other Connectors | 1 x RJ45 Ethernet
2 x Neutrik etherCON ports
1 x 9-pin D-Sub (diagnostics) | | Power Requirements | 100~240VAC, 50/60 Hz | | Dimensions | 19" 2U rackmount | | | | Package Weight | 20.1 lb | | Box Dimensions (LxWxH) | 22.8 x 19.6 x 8.9" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 65 owners. Add your rating and experience with the product.
