Midas DL16 16-Input 8-Output Stage Box

Search your instruction manual in PDF to download

User Manual for Midas DL16 16-Input 8-Output Stage Box with 16 Midas Mic Preamps

Click to enlarge the picture
Midas DL16 16-Input 8-Output Stage Box with 16 Midas Mic Preamps Contents of the user manual for the Midas DL16 16-Input 8-Output Stage Box
  • Product category: Digital Mixer Accessories Midas
  • Brand: Midas
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Midas Digital Mixer Accessories

Midas DL16 16-Input 8-Output Stage Box with 16 Midas Mic Preamps Midas DL16 16-Input 8-Output Stage Box with 16 Midas Mic Preamps Midas DL16 16-Input 8-Output Stage Box with 16 Midas Mic Preamps Midas DL16 16-Input 8-Output Stage Box with 16 Midas Mic Preamps
User manual for the Midas DL16 16-Input 8-Output Stage Box contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Midas product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Midas user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Midas product will considerably shorten its lifespan!



Product description

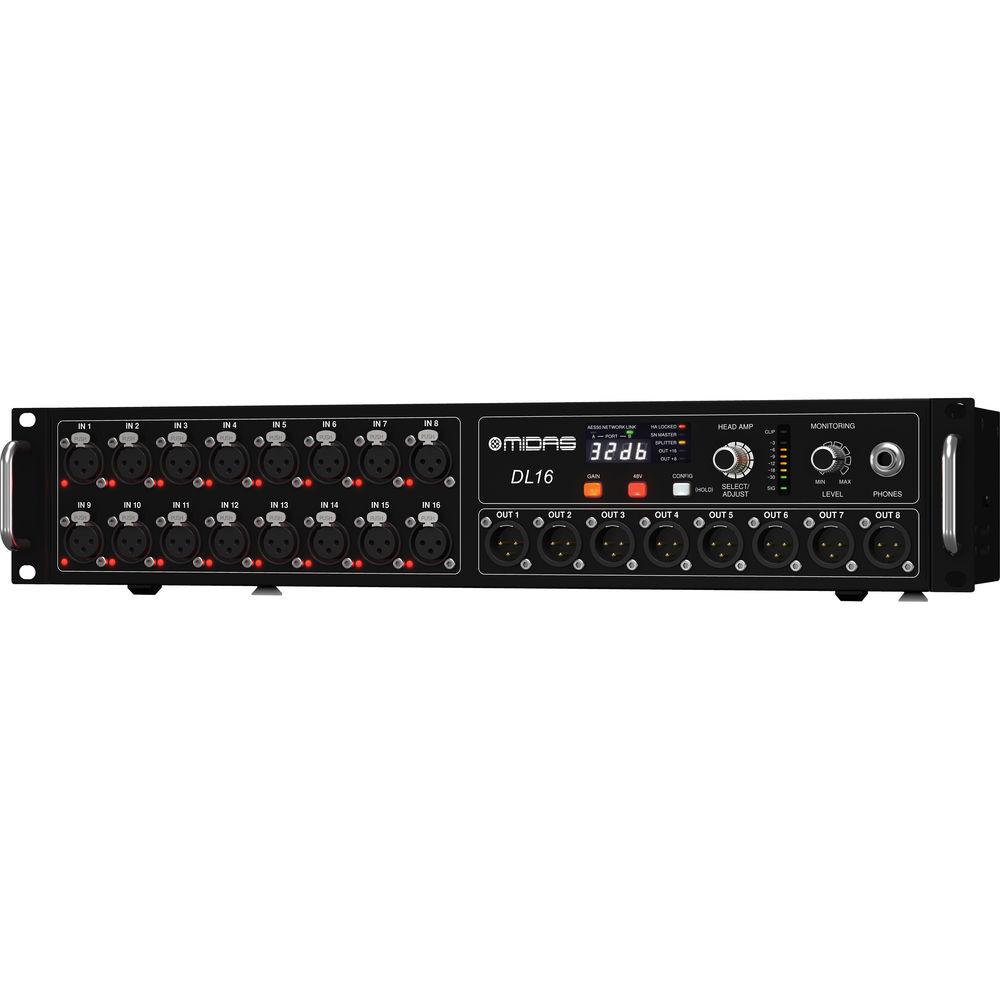

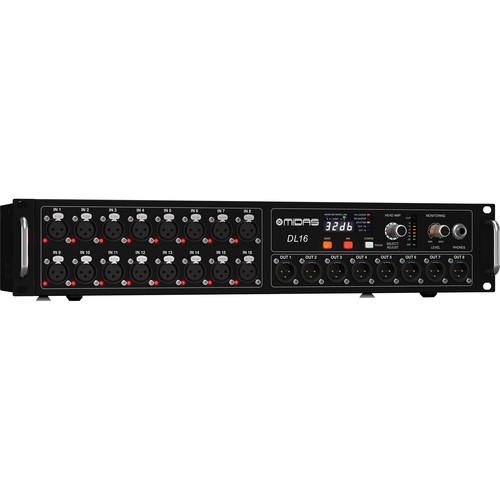

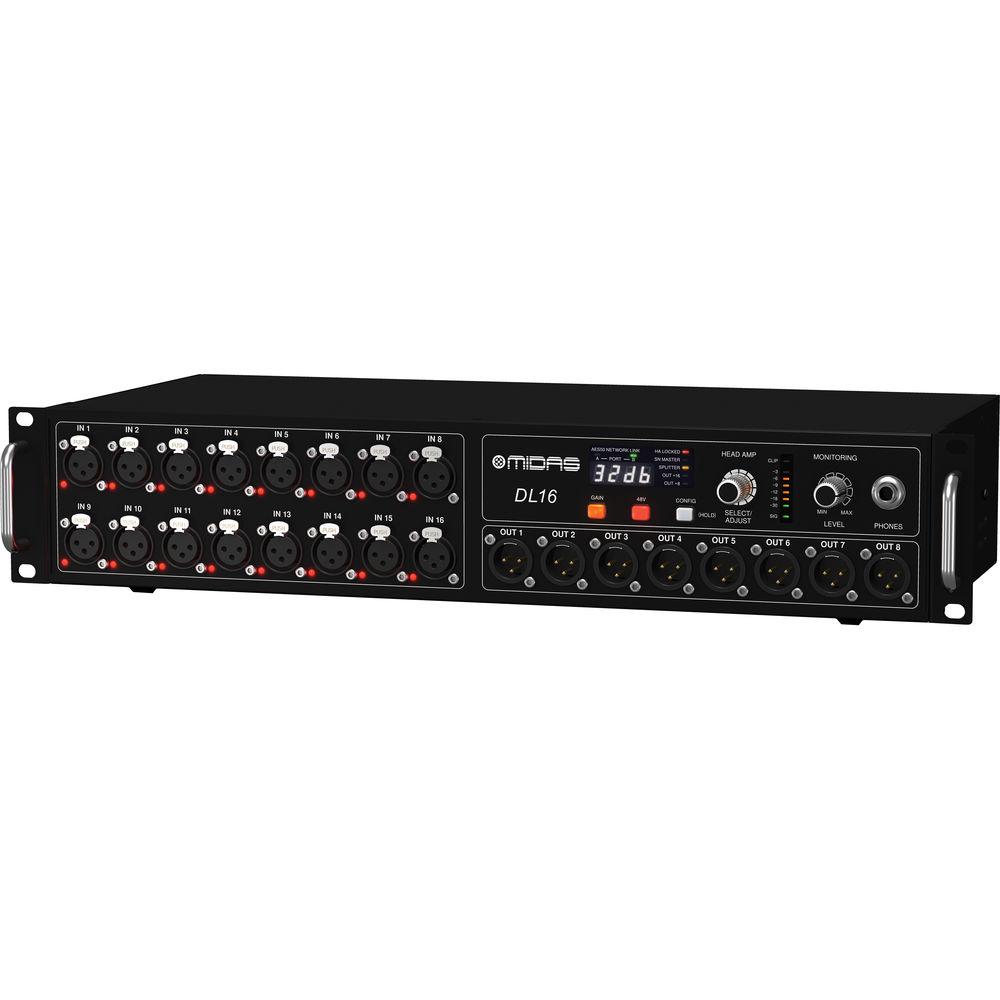

Closing the gap between stage and front of house, the Midas DL16 is a 16-in/8-out stage box that includes 16 fully programmable and remotely controllable Midas mic preamps, which are the same preamps found in the larger PRO Series consoles, and are equipped with switchable +48V phantom power. Additionally, the DL16 features 8 electronically balanced low impedance line level outputs, as all of the DL16's inputs and outputs have been designed to handle both balanced and unbalanced signals, removing any worries about signal degradation, noise, and crosstalk interference. The DL16 also features dual Cirrus Logic Digital to Analog converters, providing a reduced noise floor and lower distortion, and post-DAC filtering to remove wide-band noise.

The DL16 Stage Box includes an Ultranet port that lets performers connect directly to the Powerplay P16 system for in-ear monitoring, and lets each artist take control of their own monitor mix. This allows for performance and audience concentration without other possible sonic distractions.

The DL16 comes outfitted with dual ADAT outputs for use in splitter mode and stand-alone digital multi-core applications. Many manufacturers have adopted the ADAT digital interface as a means of transferring digital data between certain types of audio devices, such as mixers, synthesizers, lighting rigs, and effect processors. With the DL16's dual ADAT outputs, you can simply connect to any ADAT-compatible outboard devices.

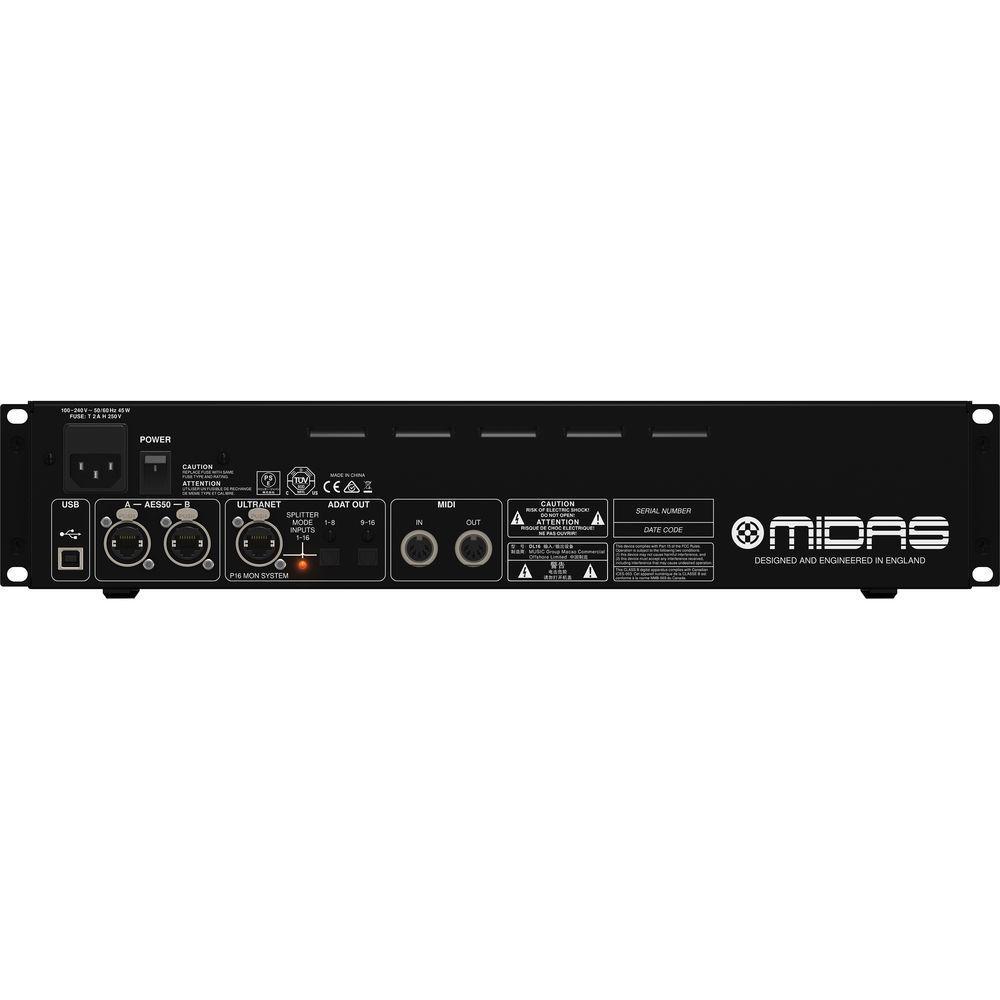

The stage box also includes dual AES50 ports for cascading multiple units over a single shielded (STP) CAT5 cable. Up to three DL16s can be daisy-chained to deliver 48 channels in and 24 out to the stage. This flexibility benefits both live and studio recording applications, as well as post-production, broadcasting, and audio routing infrastructure.

The DL16 can be remotely operated up to 328' (100 m) via CAT5/5e cable, simplifying communication between the stage and front of house. The DL16's monitoring / head amp control section allows you to select any one of the 16 inputs or 8 outputs for immediate line checks. In addition to signal metering at the stage box, you can set individual channel gain, apply +48V phantom power, plus you have the option listening directly to the input signal. Even at this distance, all settings can be controlled or programmed from the front panel of the console. Once set, all configuration settings can be locked at the console for system security.

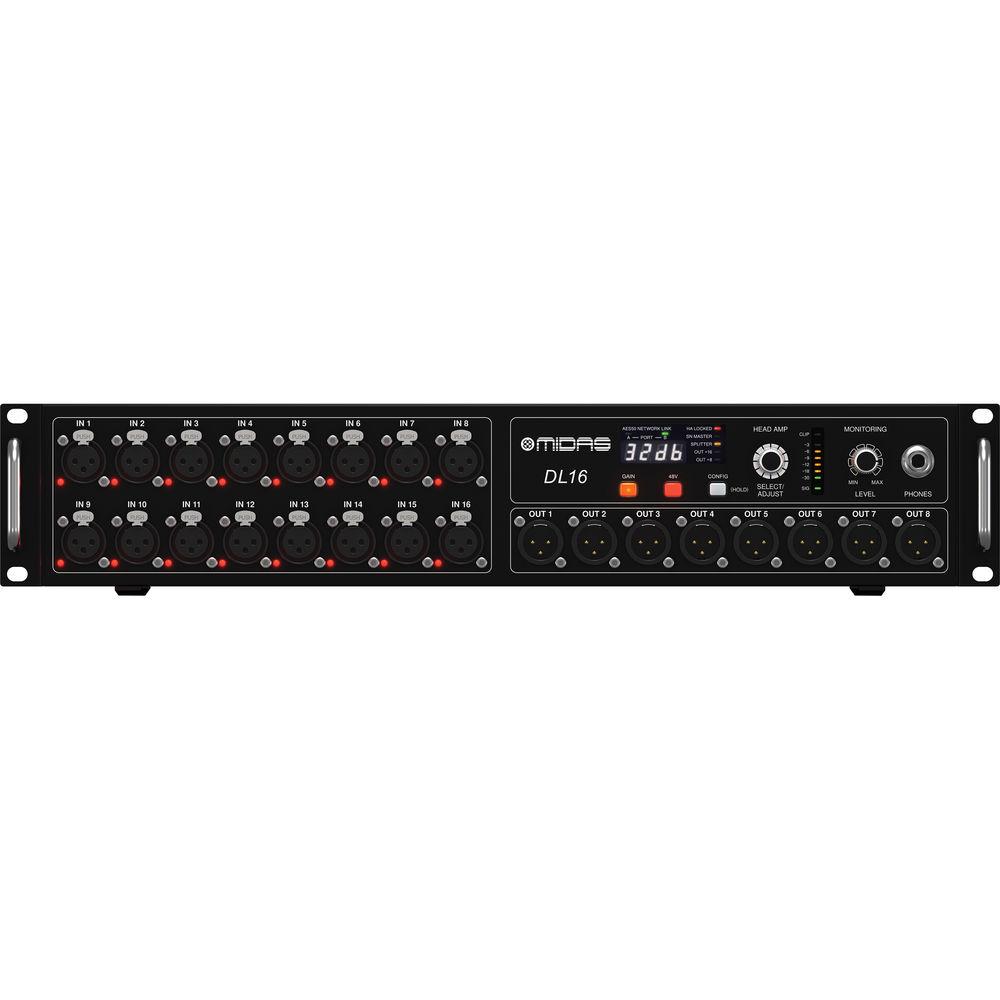

Each of the 16 Neutrik XLR inputs is equipped with a status indicator LED, which illuminates to show when the +48V phantom power is used, providing instant clarity and ease of use. For versatility, each headphone output is assignable to any of the inputs or outputs for on-stage monitoring via the 1/4" jack socket located on the front panel of the DL16. With this, you have the option of listening directly to any of the 16 inputs via headphones. Simply select the signal that you need to monitor by scrolling through each of the 16 channels, adjusting the gain where needed, and change the operating mode, all via a single rotary potentiometer.

The automation scenes allow MIDI to be incorporated, so that the external MIDI-compatible devices can be controlled as part of the scene change via the console's MIDI output. Additionally, console events can be triggered from an external MIDI source via the console's MIDI input. You can also control the gain and phantom power settings remotely using the MIDI communication functionality.

Housed in a road-ready, rugged 19" 2U rack-mountable chassis, the DL16 is designed to withstand the rigors of touring applications.
    • 16 Midas PRO microphone preamplifiers with switchable +48V phantom power
    • 8 electronically balanced low impedance line level outputs
    • Ultranet personal monitoring system connectivity for in-ear applications
    • Dual ADAT outputs for use in splitter mode and stand-alone digital multicore applications
    • Dual AES50 ports for cascading DL16 units—no merger or router required
    • Remote operation up to 328' (100m) via CAT5/5e cable
    • All settings programmable from front panel controls or console
    • Status indicator LEDs on front panel
    • Headphones output assignable to any of the inputs or outputs for on-stage monitoring
    • MIDI In/Out for bidirectional communication between FOH console and on-stage MIDI devices
    • Features Neutrik etherCON AES50 and Ultranet network ports
    • Rugged 2U rackmount chassis for durability in portable applications
    • Auto-ranging universal switch-mode power supply
UPC: 748252143648 In the Box Midas DL16 16-Input / 8-Output Stage Box with 16 Midas Mic Preamps
  • Limited 10-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Midas DL16 16-Input 8-Output Stage Box with 16 Midas Mic Preamps in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Midas DL16 Specs

    Microphone Inputs 16 XLR male 3-pin, Neutrik
    + 48 V phantom powered
    Outputs (Analog) 8 XLR female 3-pin, Neutrik
    Dual ADAT
    Preamps 16 Midas PRO
    MIDI I/O For directional communication
    Monitoring Ultranet personal monitoring system
    Headphones 1 x 1/4" / 6.3 mm TRS
    Network AES ports with Klark Teknik SuperMAC technology
    Network Cables CAT5/5e for up to 328' / 100 m
    Power Supply Auto-ranging universal switch-mode power supply
    Package Weight 13.65 lb
    Box Dimensions (LxWxH) 21.5 x 12.1 x 5.8"
