User Manual for Technical Pro MM3000 Pro Mic Mixing Amp With USB, SD Card, and Bluetooth Inputs Click to enlarge the picture
Contents of the user manual for the Technical Pro MM3000 Pro Mic Mixing
- Product category: Mixer/Amplifiers Technical Pro
- Brand: Technical Pro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Technical Pro Mixer/Amplifiers
|
User manual for the Technical Pro MM3000 Pro Mic Mixing contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Technical Pro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Technical Pro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Technical Pro product will considerably shorten its lifespan!
|

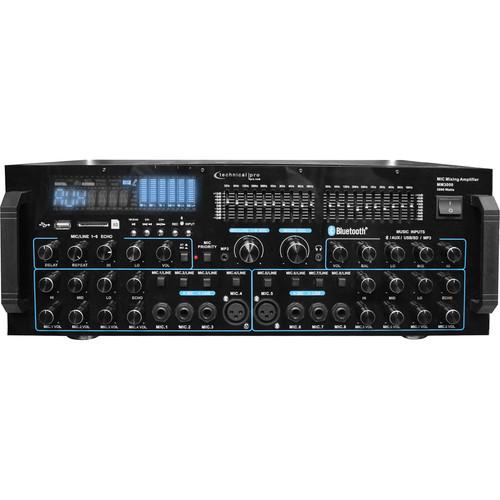

Product description Intended for settings such as concerts, school auditoriums, houses of worship and karaoke, the compact Technical Pro MM3000 Pro Mic Mixing Amp With USB, SD Card, and Bluetooth Inputs combines a powered mixer and amplifier in one. For inputs, the unit features RCA inputs for two audio sources, an auxiliary 1/8" input, a USB/SD card input, and an integrated Bluetooth v2.0 receiver with EDR. For outputs, it includes banana binding posts (4 speakers), RCA line outputs, and tape monitor loop outputs.
Additionally, the unit includes eight microphone inputs (2x balanced XLR and 6x unbalanced 1/4") with individual volume controls. The system's microphone echo controls include Volume, High, Low, Delay and Repeat, which help you dial in the right mix for the application. A microphone priority function automatically reduces the line level music signal when the microphones are active.
The USB and SD card inputs accept media up to 32GB in size and can play .mp3, .wav, and .wma files as well as record .mp3 files from the unit's tuner or RCA inputs. Controls for Bass, Mid, Treble, as well as Repeat/Random playback of the USB and SD card inputs allow you to fine tune your experience. A display for Track Title, Number, and Elapsed Time helps you stay organized as you navigate through tracks. Built-in dual 10-band equalizers help you shape the response of your sound. The device's internal cooling fan helps keep the unit running at safe operating temperatures. UPC: 817802012236 In the Box Technical Pro MM3000 Pro Mic Mixing Amp With USB, SD Card, and Bluetooth Inputs Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Technical Pro MM3000 Pro Mic Mixing Amp With USB, SD Card, and Bluetooth Inputs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTechnical Pro MM3000 Specs | Inputs | 4x RCA (2 audio sources)
USB
SD Card
2x balanced microphone XLR inputs
4x 1/4" unbalanced microphone inputs | | Outputs | Banana Binding Posts (4 Speakers)
RCA (Line Out)
Tape Monitor Loop | | Peak Power | 3000 W | | Controls | 4x individual microphone volume controls
Line volume control
Microphone master volume control
Microphone Echo Controls: volume, high, low, delay, and repeat
Bass
Mid
Treble
Balance
Repeat/Random playback on USB/SD card inputs | | EQ Controls | Dual 10-band equalizers (32, 64, 125, 250 Hz, 1, 2, 4, 8, 16 kHz) | | Playback | .mp3, .wav, .wma files from USB drives and SD cards | | Sampling Rate | 128 kbps / 44.1 kHz sampling rate on .wav file recordings | | Frequency Response | 20 to 20,000 Hz | | USB / SD Card Maximum Size | 32 GB | | USB Input | Provides 5 V power supply | | Adjustment Range | ± 12 dB | | Bluetooth | v2.0 with EDR and A2DP support (2.4 GHz) | | Bluetooth Range | 30.0' (9.1 m) | | Cooling Fan | Yes | | Dimensions | Not specified by the manufacturer | | Weight | Not specified by the manufacturer | | | | Package Weight | 14.0 lb | | Box Dimensions (LxWxH) | 19.0 x 12.0 x 8.0" |
