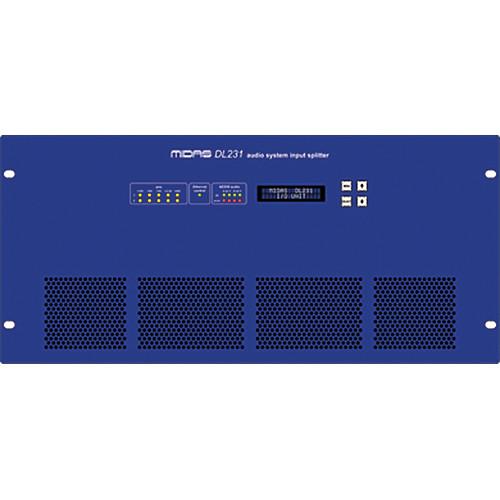

User Manual for Midas DL231 24x24 Active Microphone Splitter with 2 Preamps per Input Click to enlarge the picture
Contents of the user manual for the Midas DL231 24x24 Active Microphone Splitter
- Product category: Digital Mixer Accessories Midas
- Brand: Midas
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Midas Digital Mixer Accessories
|
User manual for the Midas DL231 24x24 Active Microphone Splitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Midas product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Midas user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Midas product will considerably shorten its lifespan!
|
Product description The 5 RU DL231 Active Microphone Splitter from Midas is an active microphone splitter with 24 inputs and 24 outputs. There are two independent Midas microphone preamplifiers per input channel with switchable 48V phantom power. This microphone splitter features a PCB layout specifically designed to maintain grounding as well as separation for both analog and digital signals. It comes fitted with an Ethernet control port and four AES50 ports for dual-redundant handling of two independent digital audio interfaces. MIDI in, out, and thru ports are also on board for use with Midas consoles.
The DL231 offers a 24-bit resolution and can be switched between 96 kHz and 48 kHz sampling rates. A Mute All Outputs button is provided for onstage re-patching. It is powered by a built-in dual-redundant power supply and is housed in a road-ready, rugged rack-mountable chassis designed for transport and storage in standard flight cases (sold separately). - Dual redundant AES50 network ports with independent phase-locked loop synchronization
- 24 electronically balanced output channels can be sourced from microphone preamplifiers or AES50 ports
- Remote operation up to 328.1' via CAT5/5e cable
- Settings are programmable from front panel controls or console
- PSU status indicator LEDs and configuration LCD display on front panel
- Designed and engineered in England
In the Box Midas DL231 24x24 Active Microphone Splitter with 2 Preamps per Input (5 RU) Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Midas DL231 24x24 Active Microphone Splitter with 2 Preamps per Input in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMidas DL231 Specs | Connectors | 24 x 3-pin XLR male, line output channels
24 x 3-pin XLR female, microphone/line input channels
1 x MIDI input port
1 x MIDI out port
1 x MIDI thru port
1 x 9-pin Sub-D female, diagnostics port
4 x RJ45 Neutrik etherCON, AES50 network ports
1 x RJ45 Neutrik etherCON, Ethernet control port
2 x IEC, 100 - 240 VAC power ports MIDI ports for use with Midas consoles only | | Indicators | 1 x LCD display configuration status (front)
10 x LED PSU power status (front)
1 x LED Ethernet status (front)
8 x LED AES50 audio status (front)
24 x mute status, microphone inputs (rear)
24 x 48V phantom power status, microphone outputs (rear) | | Controls | 4 x programming buttons (front)
1 x mute button (rear)
1 x boot button (rear)
2 x power on/off isolator switch (rear) | | Remote Operation | Up to 328.1' / 100 m via CAT5/5e cable | | Sampling Frequencies | 48 kHz, 96 kHz | | Bit Rate | 24 | | Frequency Response | 20 Hz - 20 kHz (+0 dB to -1 dB) | | Maximum Gain | 45 dB | | Input CMRR | @ 0 dB Gain: 70 dB
@ 45 dB Gain: 90 dB | | Distortion (THD) | @ 0 dBu, 0 dB Gain: 0.01%
@ 0 dBu, 45 dB Gain: 0.03%
@ +20 dBu, 0 dB Gain: 0.01%
@ +20 dBu, 45 dB Gain: 0.03% | | Output Noise | @ 0 dB Gain: -86 dBu
@ 45 dB Gain: -81 dBu | | EIN | @ 0 dB Gain: -86 dBu
@ 45 dB Gain: -126 dBu | | Dynamic Range | 22 Hz to 22 kHz, @ Unity Gain: 107 dB
22 Hz to 22 kHz, @ 45 dB Gain: 102 dB | | Crosstalk | At 1 kHz: -90 dB physically adjacent input channels
At 10 kHz: -90 dB physically adjacent input channels | | Supply Voltage | 100 - 240 VAC, 50/60 Hz | | Power Consumption | Up to 150 W | | Operating Temperature | 41 to 104°F / 5 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Rack Space | 5 RU | | Dimensions | 16.26 x 8.70 x 19.02" / 41.3 x 22.1 x 48.3 cm | | Weight | 32.6 lb / 14.8 kg |
