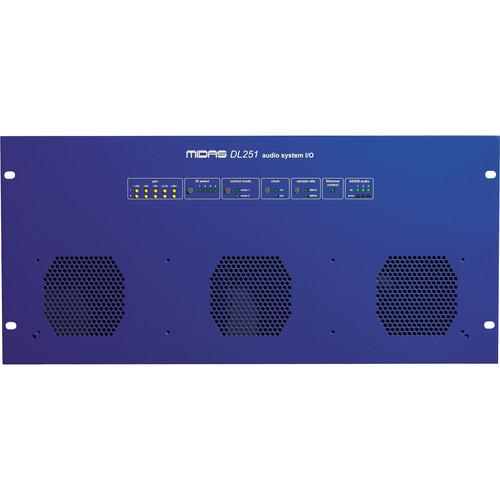

User Manual for Midas DL251 - 48 x 16 Fixed Format I O Unit Click to enlarge the picture
Contents of the user manual for the Midas DL251 - 48 x 16
- Product category: Networked Audio Systems Midas
- Brand: Midas
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Midas Networked Audio Systems
|
User manual for the Midas DL251 - 48 x 16 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Midas product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Midas user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Midas product will considerably shorten its lifespan!
|
Product description The DL251 from MIDAS is a 5U 19" rackmount fixed-configuration I/O unit with forty-eight microphone/line inputs and sixteen line outputs. Limited to analog connections, the unit provides a more cost-effective solution for those not needing the flexibility of MIDAS modular I/O hardware.
MIDI (In, Out, Thru) connectors and an Ethernet control port are fitted as standard. Three AES50 ports handle the (n+1) redundant digital audio interface. The DL251 is capable of being switched between 96 kHz and 48 kHz via the front panel.
A rear panel "Mute All Outputs" button is provided for aiding in onstage re-patching. The unit is also equipped with dual-redundant, universal power supplies. - Fixed Format I/O unit compatible with all MIDAS digital audio consoles
- Forty-eight remote control microphone/line audio inputs, fixed configuration
- Sixteen audio line outputs, fixed configuration
- Switchable between 96 kHz and 48 kHz sample rates
- Ethernet control port (using MIDAS protocols)
- Digital snake and distribution network component - can be used as part of a standalone digital snake
- 48 audio input x 16 audio output configuration for snake applications
- 5U 19" rack-mountable form factor
UPC: 794504547313 In the Box Midas DL251 - 48 x 16 Fixed Format I/O Unit AC Power Cable Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Midas DL251 - 48 x 16 Fixed Format I O Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMidas DL251 Specs | Sample Rates | 48 or 96 kHz | | Analog Inputs | 48 x XLR 3-pin female Microphone/Line | | Analog Outputs | 16 x XLR 3-pin male Line | | Other Connectors | 1 x RJ45 Ethernet
3 x Neutrik etherCON ports
3 x 5-pin DIN MIDI In, Out, Thru
1 x 9-pin D-Sub (diagnostics) | | Power Requirements | 100~240VAC, 50/60 Hz | | Dimensions | 19" 5U rackmount | | | | Package Weight | 42.0 lb | | Box Dimensions (LxWxH) | 24.0 x 21.0 x 14.6" |
