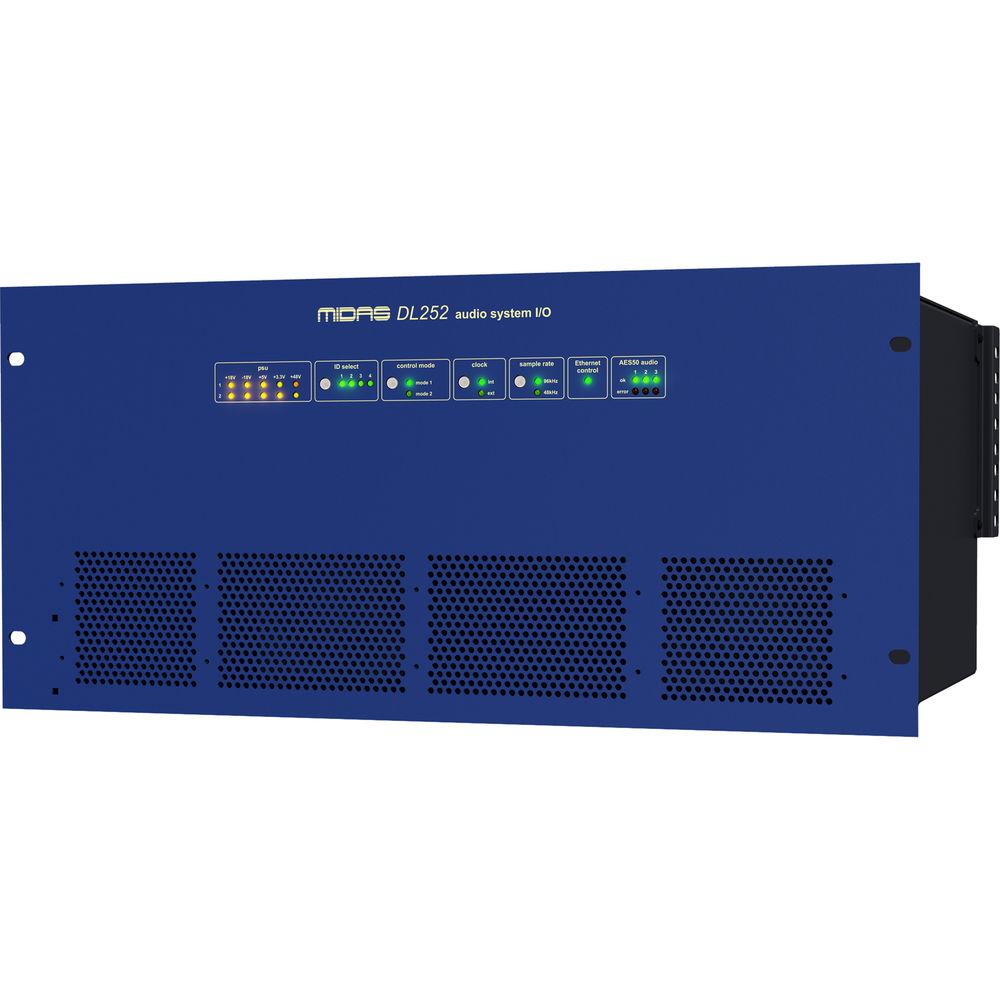

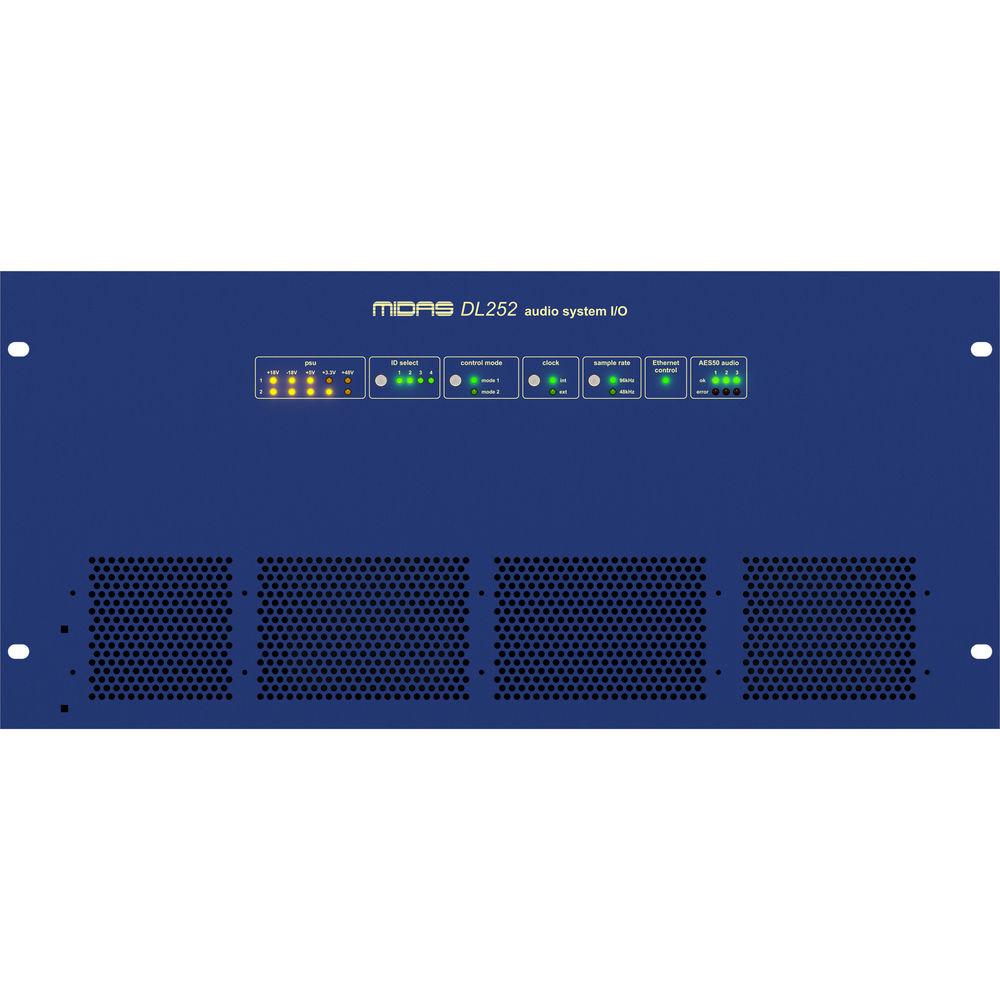

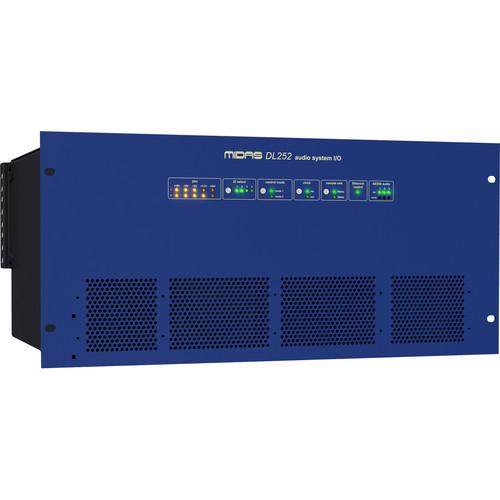

Product description The DL252 from MIDAS is a 5U 19" rackmount fixed-configuration I/O unit with sixteen microphone/line inputs and forty-eight line outputs. Limited to analog connections, the unit provides a more cost-effective solution for those not needing the flexibility of MIDAS modular I/O hardware.
MIDI (In, Out, Thru) connectors and an Ethernet control port are fitted as standard. Three AES50 ports handle the (n+1) redundant digital audio interface. The DL252 is capable of being switched between 96 kHz and 48 kHz via the front panel.

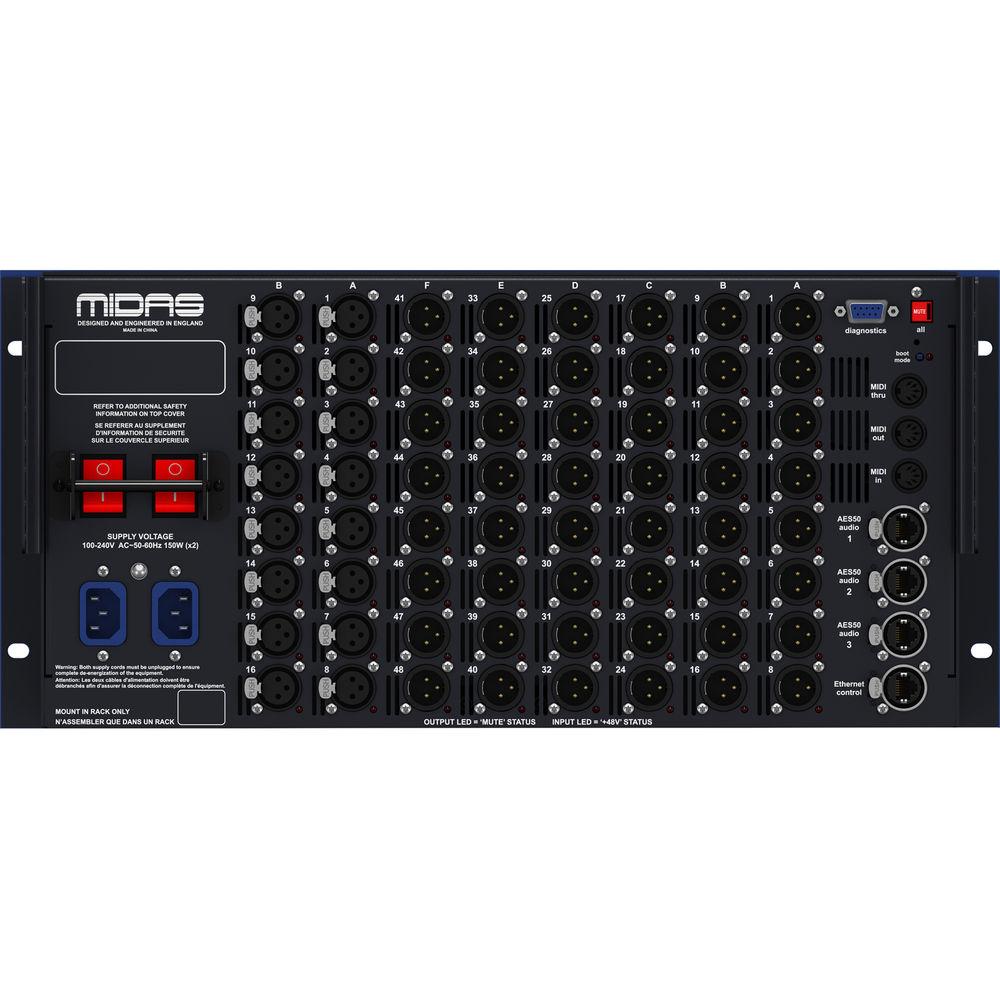

A rear panel "Mute All Outputs" button is provided for aiding in onstage re-patching. The unit is also equipped with dual-redundant, universal power supplies. - Fixed Format I/O unit compatible with all MIDAS digital audio consoles
- Sixteen remote control microphone/line audio inputs, fixed configuration
- Forty-eight audio line outputs, fixed configuration
- Switchable between 96 kHz and 48 kHz sample rates
- Ethernet control port (using MIDAS protocols)
- Digital snake and distribution network component - can be used as part of a standalone digital snake
- 48 audio outputs x 16 audio inputs configuration for snake applications
- 5U 19" rack-mountable form factor
In the Box Midas DL252 - 16 x 48 Fixed Format I/O Unit AC Power Cable Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Midas DL252 - 16 x 48 Fixed Format I O Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMidas DL252 Specs | Sample Rates | 48 or 96 kHz | | Analog Inputs | 16 x XLR 3-pin female Microphone/Line | | Analog Outputs | 48 x XLR 3-pin male Line | | Other Connectors | 1 x RJ45 Ethernet
3 x Neutrik etherCON ports
3 x 5-pin DIN MIDI In, Out, Thru
1 x 9-pin D-Sub (diagnostics) | | Power Requirements | 100~240VAC, 50/60 Hz | | Dimensions | 19" 5U rackmount |
