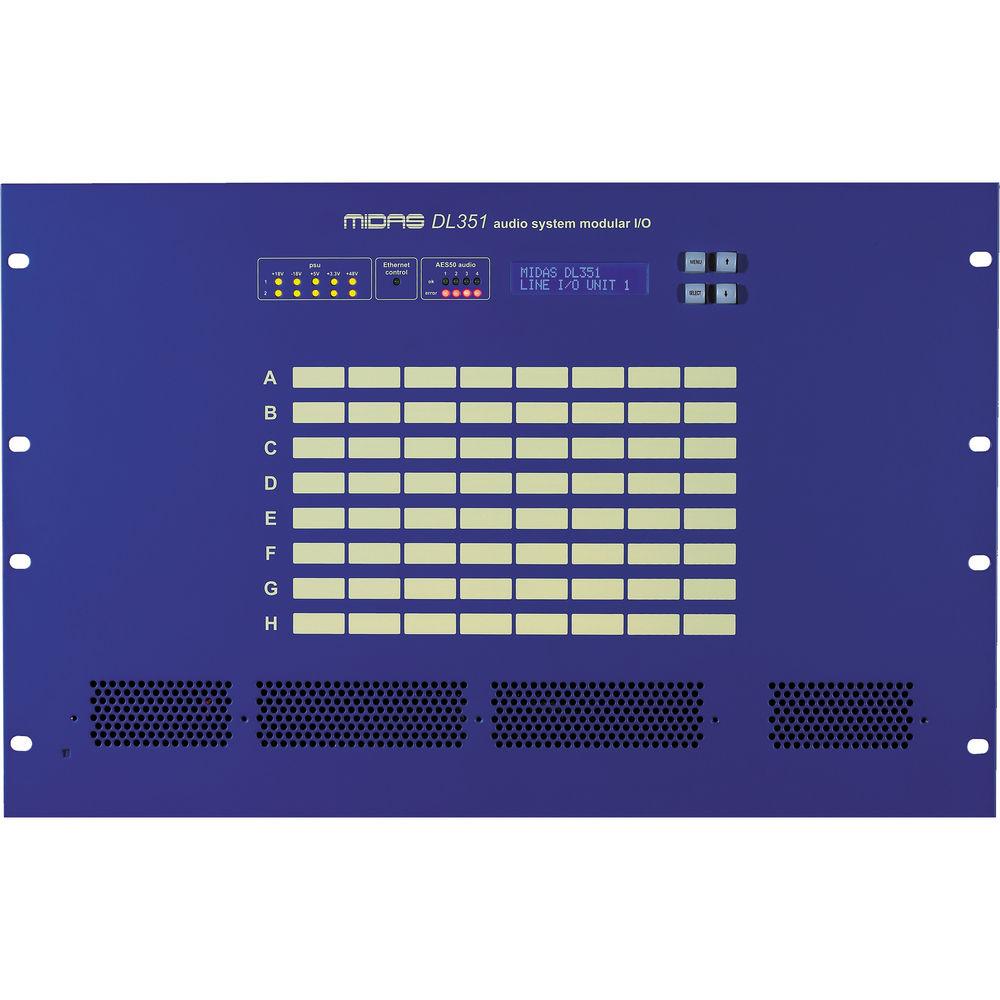

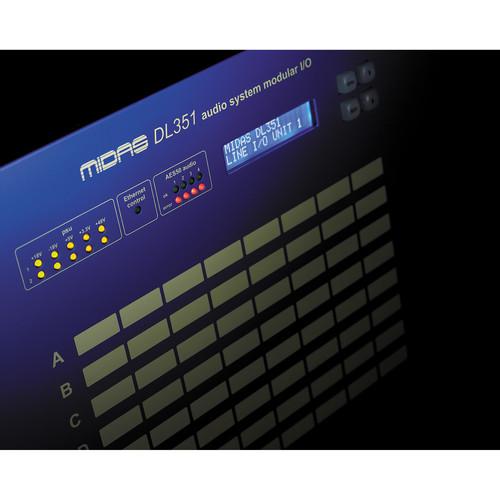

Product description The Midas DL351 Modular I/O Unit has the capacity to house up to 8 cards in a user-configurable format, which can be any combination of 8 analog mic/line in, 8 analog out (XLR), 8 analog TRS line-level in and out, 8 digital in and out (4 AES/EBU pairs), or a 25-pin D-sub card with 8 analog mic/line inputs and 8 outputs.

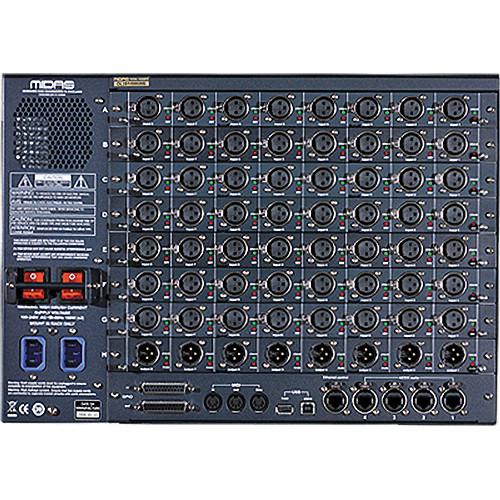

MIDI in, out, and thru, and GPIO connections are supplied as standard. Its digital audio interface is via 4 AES50 ports, one of which can be configured as a spare redundant connection. Dual-redundant power supplies with locking IEC connectors are fitted as standard. - Five card options - DL441 analog mic/line input "I" card, DL442 analog output "O" card, DL443 8 analog line in and 8 analog line out "TRS" card, DL452 AES/EBU input and output "D" card, and DL444 "D-sub" card, 8 analog mic/line in, 8 line out
- Digital snake and distribution network component with redundant connections
UPC: 736211842275 In the Box Midas DL351 Modular I/O Unit Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Midas DL351 Modular I O Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMidas DL351 Specs | Inputs | Analog: 3-pin XLR balanced; 8 x 1/4" TRS (returns)
Digital: AES3 (two channels of digital audio) on 3-pin XLR
MIDI: 5-pin DIN
GPIO: 25-pin D-type (opto isolated)
System connector: 3 x AES50 (24 channels of bi-directional digital audio) on EtherCon XLR
N+1 connector: 1 x AES50 (24 channels of bi-directional digital audio) on EtherCon XLR providing redundant backup | | Outputs | Analog: 3-pin XLR balanced; 8 x 1/4" TRS (sends)
Digital: AES3 (two channels of digital audio) on 3-pin XLR
MIDI: 5-pin DIN
GPIO: 25-pin D-type (opto isolated)
System connector: 3 x AES50 (24 channels of bi-directional digital audio) on EtherCon XLR
N+1 connector: 1 x AES50 (24 channels of bi-directional digital audio) on EtherCon XLR providing redundant backup | | Sample Rates | Input: accepts any frequency between 32 to 96k
Output: 48k, 96k or auto tracking to inputs | | Conversion | A/D and D/A: 24-bit, 96k and 128 times over sampling | | Bypass | Sample rate converter can be bypassed | | Operating Temperature | 41 - 104°F (5 - 40°C) | | Storage Temperature | -4 - 140°F (-20 - 60°C) | | Power Requirements | 100 - 240 VAC, 50 - 60 Hz | | Dimensions | 7U x 16.1" (7U x 41.0 cm ) | | Weight | 110.2 lb (50.0 kg) | | | | Package Weight | 46.9 lb | | Box Dimensions (LxWxH) | 24.0 x 21.0 x 18.5" |
