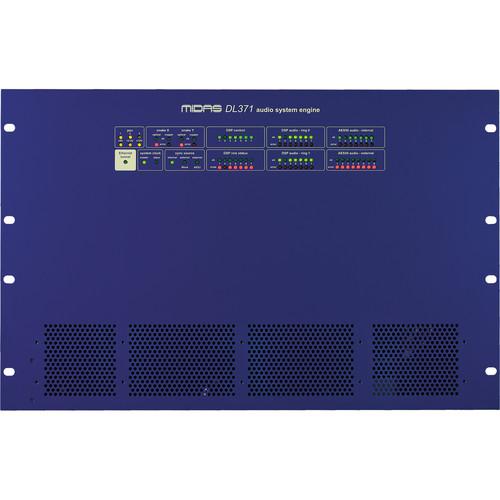

User Manual for Midas DL371PRO9-01 Modular DSP Engine for the Midas PRO9 Digital Mixing Console Click to enlarge the picture
Contents of the user manual for the Midas DL371PRO9-01 Modular DSP Engine for
- Product category: Digital Mixer Accessories Midas
- Brand: Midas
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Midas Digital Mixer Accessories
|
User manual for the Midas DL371PRO9-01 Modular DSP Engine for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Midas product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Midas user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Midas product will considerably shorten its lifespan!
|
Product description The Midas DL371PRO9-01 for the Midas PRO9 Digital Mixing Console is a 7U 19" rack-mount unit, which houses up to 7 DSP audio processing cards and routing hardware. Employing an advanced FPGA (Field Programmable Gate Array) architecture, it has three removable power supplies, only two of which are required for full operation. The power supplies are auto-voltage sensing, auto-switchover, hot swappable, outfitted with locking AC connectors, and are identical to, and therefore interchangeable with, the PSUs in the control center. The engine has dual-redundant HyperMAC ports, in CAT-5e and optical variants, which provides the digital equivalent of a 384-way (192 in + 192 out) multi-core between the stage and FOH (Front of House).
The DL371PRO9-01 also has eight AES50 ports, which facilitate connections to the PRO Series DL351 stage box, and/or other AES50 I/O hardware. It is also possible to use any PRO Series with DL251, DL351, DL451 and DL431, plus the Klark Teknik DN9696 high-resolution audio recorder and DN9650 network bridge. The processing engine is loaded with 6 modules in the standard configuration.
The system is designed so that it can be expanded over time as the needs of the end user evolve. The PRO3 version of the DL371 DSP engine can be upgraded to the PRO6 version by the addition of a fifth processing card, as well as the appropriate licensing installation on the control console. Similarly the PRO6 version can be upgraded to the PRO9 version with the addition of a sixth card. All three models include an extra-cost option of adding an N+1 redundant card, which will automatically assume processing roles in the event of a card failure within the system. - Redundant N+1 card option for fail safe operation
- Dual-redundant HyperMAC ports
- Ethernet tunnel connection
- Word clock and AES3 sync connections
- Advanced FPGA architecture
- Upgrade options for upgrading a PRO3 to a PRO6 or PRO9 and a PRO6 to a PRO9
In the Box Midas DL371PRO9-01 Modular DSP Engine for the Midas PRO9 Digital Mixing Console Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Midas DL371PRO9-01 Modular DSP Engine for the Midas PRO9 Digital Mixing Console in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMidas DL371PRO9 Specs | Card Slots | 7 | | Cards Needed | 6 | | Rack Unit Space | 7 | | Dimensions | Not specified by the manufacturer | | Weight | Not specified by the manufacturer | | | | Package Weight | 71.7 lb | | Box Dimensions (LxWxH) | 24.0 x 22.0 x 22.0" |
