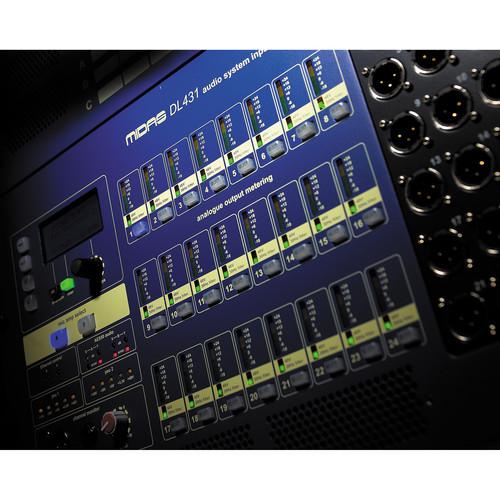

Product description The Midas DL431 Input Splitter Unit is a 6U 19" rack fixed configuration unit which features 24 mic/line inputs. Each input feeds three separate preamps, two with separate gain controls, the third being fixed gain. The two variable-gain preamps feed separate ADCs, which then pass 96 kHz digital audio to the AES50 ports. Four discrete AES50 outputs supply dual-redundant digital audio to AES50 networks, and allow for easy connection to any AES50 device, such as an HD recorder, network bridge, or mixing console.

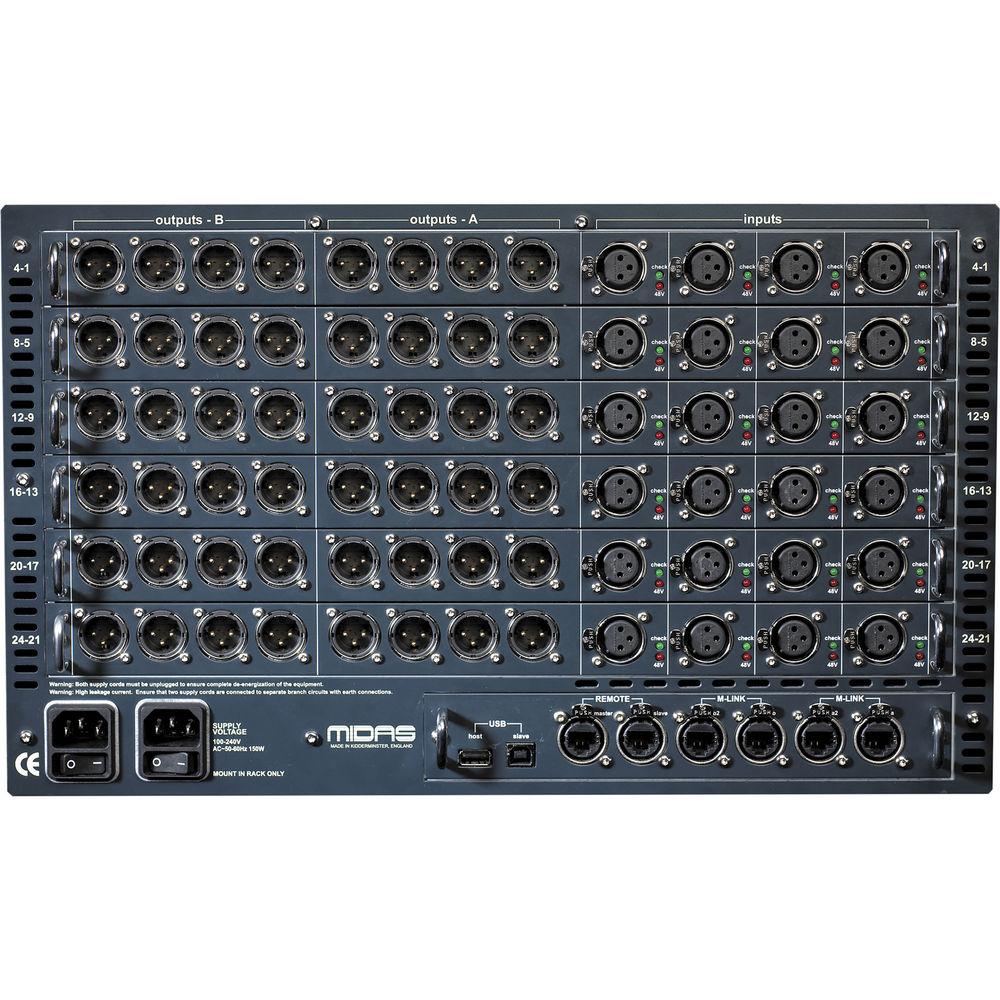

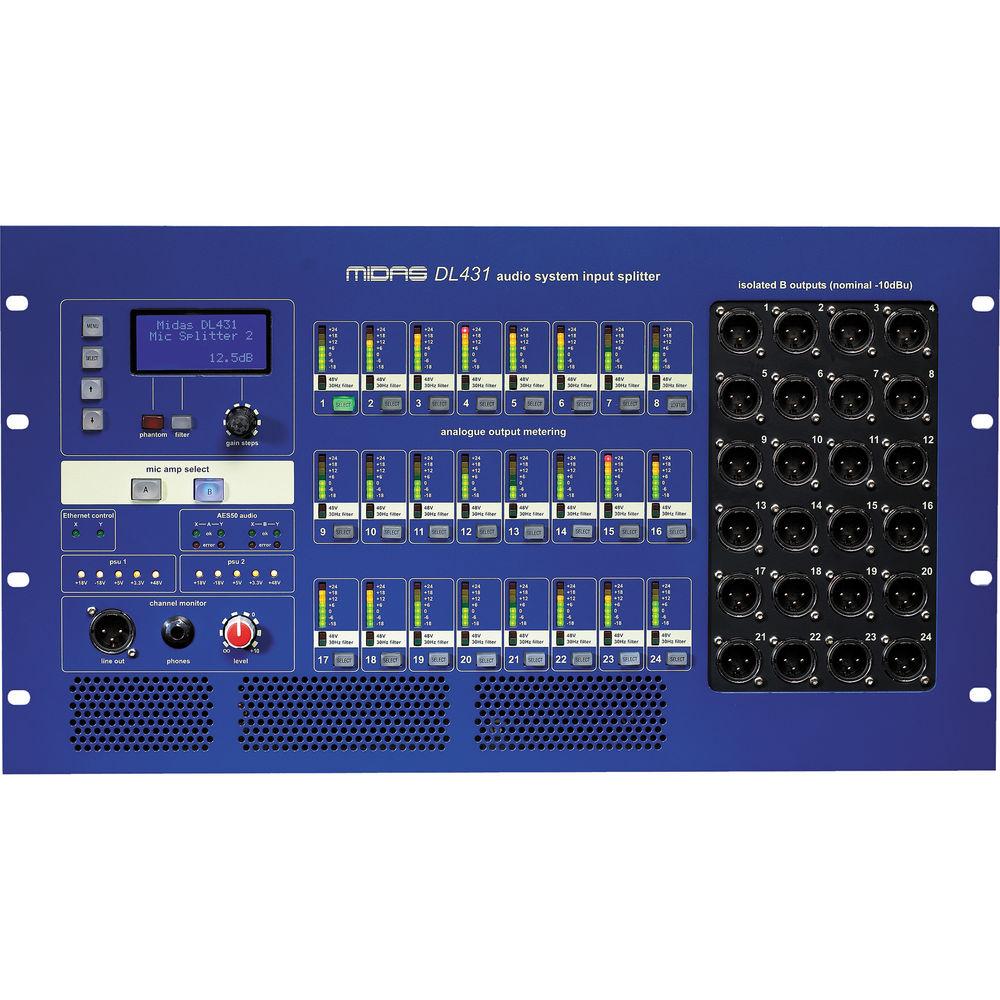

Two balanced analog splits (sourced post each mic amp) are provided on the rear panel. The third, fixed-gain preamp feeds a transformer-isolated split on the front panel for recording or broadcast applications. The two variable gain preamps are remote controllable from two separate locations, such as front of house and monitor positions. Front panel controls and local monitoring with integral headphone amplifier also make the DL431 usable as a standalone device. Also, its integral dual-redundant power supplies are designed to ensure peace of mind at all times. - Front panel control and local monitoring; can be used as a standalone unit
- Integral headphone amplifier
- Dual-redundant power supply units
- Integrated three-way analog mic splits
- Digital snake and distribution network component
UPC: 794504547214 In the Box Midas DL431 Input Splitter Unit Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Midas DL431 Input Splitter Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMidas DL431 Specs | Inputs | 24 x 3-pin XLR balanced | | Phantom Power | 48 V with local switch and remote control from XL8 control center | | Gain Control Range | 2 x -2.5 to 45 dB analog gain in 2.5dB steps with local and remote control, plus a further +/-20 dB of high-resolution interpolated DSP trim | | Filters | 2 x 30 Hz high pass with local defeat switch and remote control from XL8 control center | | Meter | 24-off: 7-segment, -18 to 24 dBu
Meter A/B: meters can be switched to monitor A or B preamplifiers | | A/D Converters | 2 x 24-bit, 96k and 128 times over sampling | | Analog Outputs | 2 x rear 3-pin XLR balanced, independent
1 x 3-pin XLR balanced, front-mounted, transformer isolated with fixed gain of -6 dB
Audio monitor: 1 x 3-pin XLR balanced
Headphone output: 1 x 1/4" jack | | System Outputs | 2 x independent AES50 (24 channels of digital audio) on Ethercon XLR, plus dual-redundant backups of each | | Power | 100 - 240 VAC, 50 - 60 Hz | | Operating Temperature | 41 - 104°F (5 - 40°C) | | Storage Temperature | -4 - 140°F (-20 - 60°C) | | Dimensions (HxD) | 6U x 16.1" (6U x 41.0 cm) | | Weight | 47.4 lb (21.5 kg) | | | | Package Weight | 56.7 lb | | Box Dimensions (LxWxH) | 24.0 x 22.0 x 17.0" |
