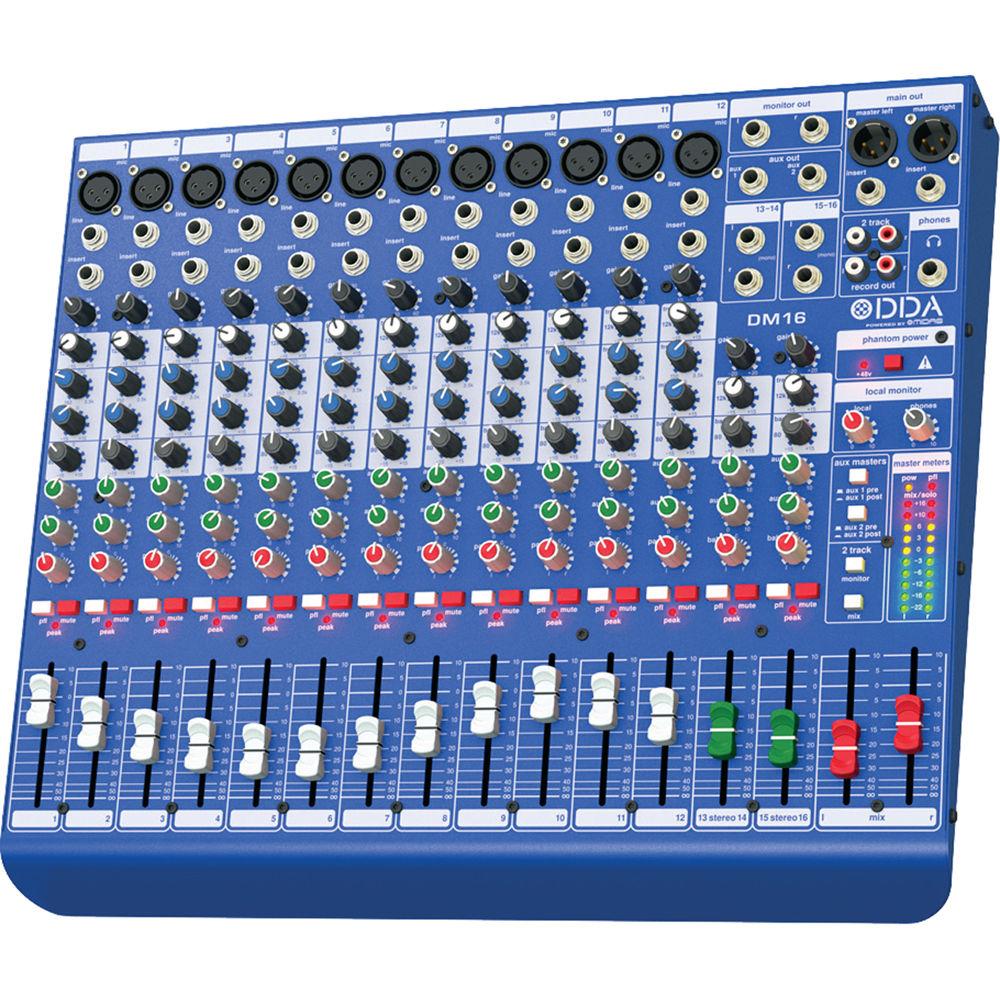

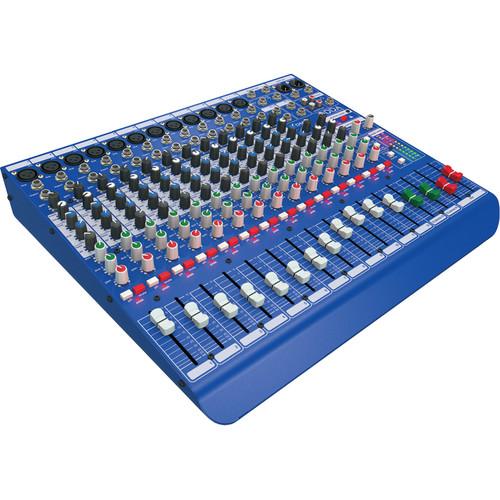

Product description Designed to be used in live and recording situations, the MIDAS DM16 is an 16-input analog mixer. Each one of its 12 mono inputs features a 48V phantom power-enabled MIDAS microphone preamp, as well as a 1/4" line input. These mono channels also sport a three-band EQ with a sweepable middle frequency for fine-tuning timbres. Also useful are 1/4" inserts across each mono input for use with external processing, should you wish to utilize outboard gear. Two auxiliary channels are switchable between pre- and post-fader. You can use these auxiliary channels for making headphone/cue mixes, though you also have the option to use any channel on the board as returns for the two auxiliary outputs, allowing you to loop in external effects processors for things like reverb, delay, and whatever else you might want to throw across a bus.A dedicated 1/4" headphone output is suitable for engineers to achieve a more up-close and focused picture of what's being outputted through the mixer. Additionally, an RCA I/O section allows you to play 2-track audio from a separate device, or to route signal to an external recorder, and thus, to create board recordings without using up necessary mixer real estate. - Notable Features
- 3-band EQ on mono channels with sweepable mid band
2 aux sends with pre/post fader switching, can be used for external effects processing, custom monitor mixes, or both
16 Precision Faders with 60mm Throw
2 electronically balanced stereo line-input channels on 1/4" TRS connectors
Live performance and studio recording analogue mixer with 16-input channels
Suitable for small venues, or keyboard/drum sub-mixer for larger-scale performances
12 mono input channels with MIDAS microphone preamplifiers
13/14 and 15/16 are dedicated stereo channels, making them suitable for stereo instruments such as keyboards, and can also be used for mono signals thanks to a convenient balance control on each 2-channel grouping
Input channels can also be used as return inputs for signals sent to external effects-processing equipment
Main and monitor outputs UPC: 748252153845 In the Box Midas DM16 16-Input Analog Live and Studio Mixer with Microphone Preamplifier Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Midas DM16 16-Input Analog Live and Studio Mixer with Microphone Preamplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMidas DM16 Specs | Input Channels | Mic inputs (MIDAS mic preamp): 12
Type: XLR, balanced
Mic EIN @ 60 dB Gain, 50 Ohms Source at Insert Send: -131 dBu, unweighted, 20 Hz to 20 kHz
Mic EIN @ 60 dB Gain, 150 Ohms Source at Insert Send: -128 dBu, unweighted, 20 Hz to 20 kHz
Noise @ 10 dB Gain, at Insert Send: -97 dBu, unweighted, 20 Hz to 20 kHz
Frequency Response (-1 dB) at Main Output: 20 Hz to 20 kHz (-1 dB)
Frequency Response (-3 dB) at Main Output: 70 kHz (-3 dB)
Mic Gain Range: +10 to +60 dB
Maximum Input Level: +11 dBu @ +10 dB gain
CMRR @ +60 dB Gain: Typically -90 dB
Impedance: 2 kOhms, Balanced
Distortion (THD+N) at 0 dBu: 0.005% @ 1 kHz
Phantom Power: Switchable, +48 V | | Line Input | Type: 1/4" TRS, balanced
Impedance: 20 kOhms balanced / unbalanced
Line Gain Range: -10 to +40 dB
Maximum Input Level: +30 dBu | | Stereo Input | Type 4 x 1/4" TRS connector, balanced
Impedance: 20 kOhms balanced / unbalanced
Gain Range: -20 to +20 dB
Maximum Input Level: +21 dBu | | Equalizer | Low: ±15 dB @ 80 Hz, shelving
Mid (mono inputs only) ±15 dB @ 150 Hz to 3.5 kHz, variable semi-parametric
High ±15 dB @ 12 kHz, shelving | | Channel Inserts | Type: 1/4" TRS connector, unbalanced
Maximum Input / Output Level: +21 dBu | | AUX Sends | Type: 2 x 1/4" TRS connector, balanced
Impedance: 240 Ohms balanced, 120 Ohms unbalanced
Maximum Output Level: +21 dBu | | Monitor Output | Type: 2 x 1/4" TRS connector, balanced
Impedance: 240 Ohms balanced, 120 Ohms unbalanced
Maximum Output Level: +21 dBu | | Main Output | Type: 2 x XLR, electronically balanced
Impedance: 100 Ohms balanced, 50 Ohms unbalanced

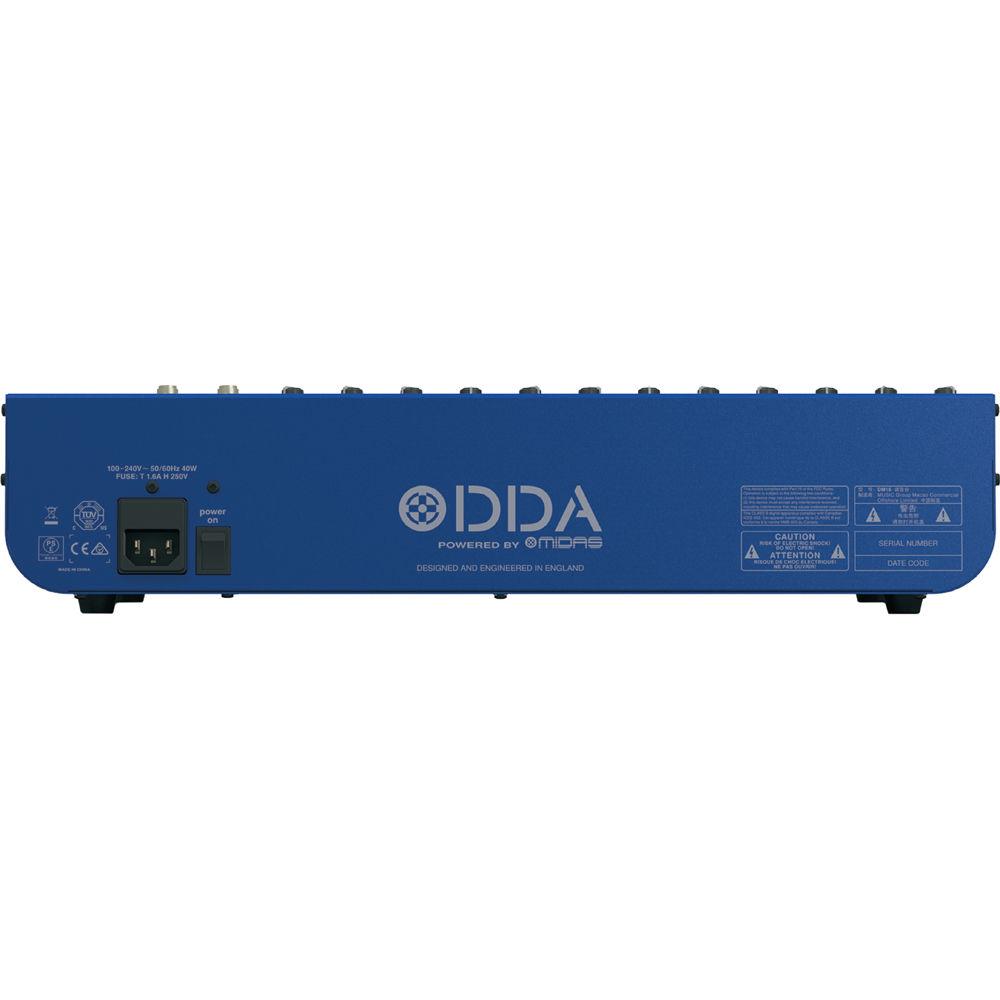

Maximum Output Level: +21 dBu | | Inserts | Main Out Inserts:
Type: 2 x 1/4" TRS connector, unbalanced
Maximum Input/Output Level +21 dBu | | Phones/Line Out | Type 1/4" TRS connector, unbalanced
Impedance: 25 Ohms
Maximum Output Level: +21 dBu | | Track Format | Type: 2 x RCA, unbalanced
Impedance: 20 kOhms
Maximum Input Level: +21 dBu | | Record Output | Type: 2 x RCA, unbalanced
Impedance: 1 kOhm
Maximum Output Level: +21 dBu | | Main Mix | Main Mix @ -∞, Channel Fader @ -∞: -104 dBu, unweighted, 20 Hz to 20 kHz
Main Mix @ 0 dB, Channel Fader @ -∞: -91 dBu, unweighted, 20 Hz to 20 kHz
Main Mix @ 0 dB, Channel Fader @ 0 dB: -84 dBu, unweighted, 20 Hz to 20 kHz | | Power Supply | Switch Mode Power Supply: 100 to 240V to 50/60 Hz, switchable (T 1.6 A H 250 V) Power Consumption: 40 W Mains Connection Standard IEC receptacle | | Dimensions (H x W x D) | 3.7 x 17 x 15" / 9.5 x 44 x 37 cm | | | | Package Weight | 13.5 lb | | Box Dimensions (LxWxH) | 20.0 x 17.5 x 6.0" |
