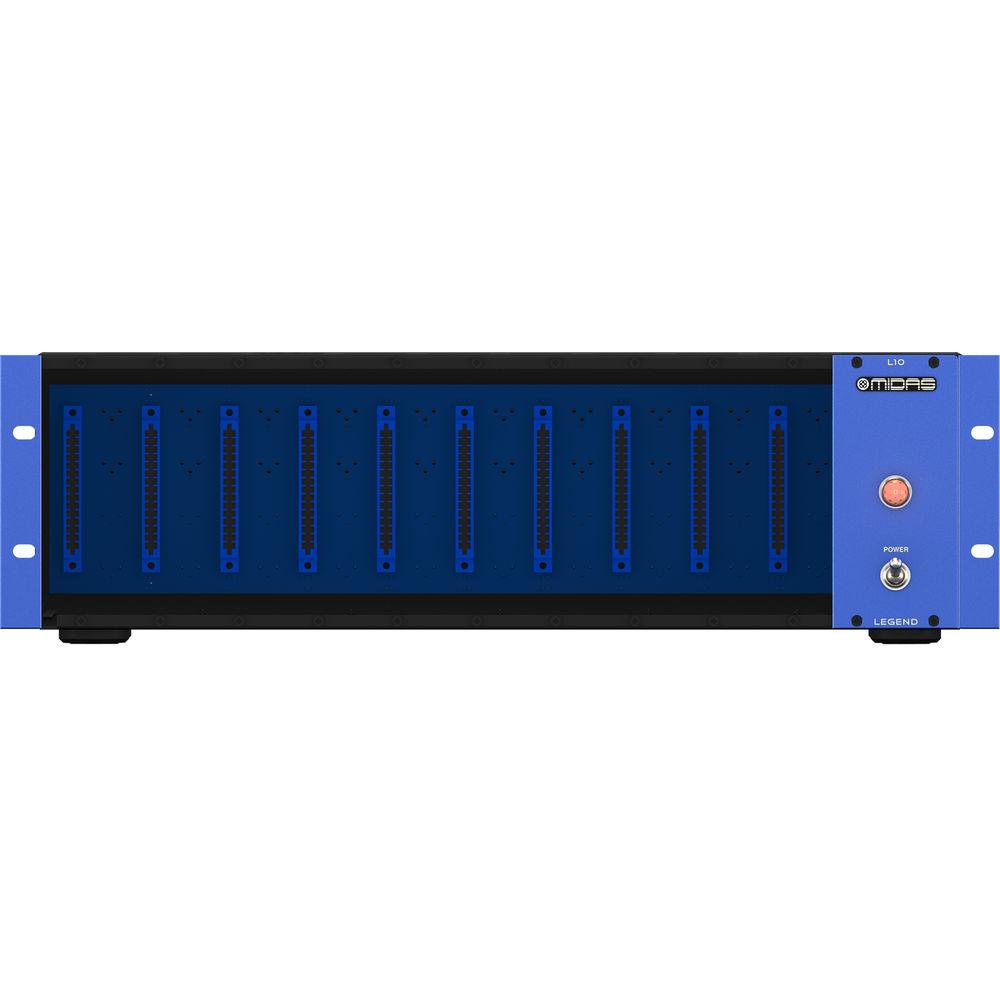

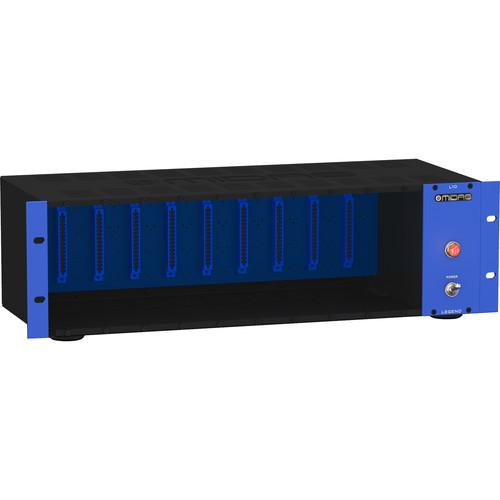

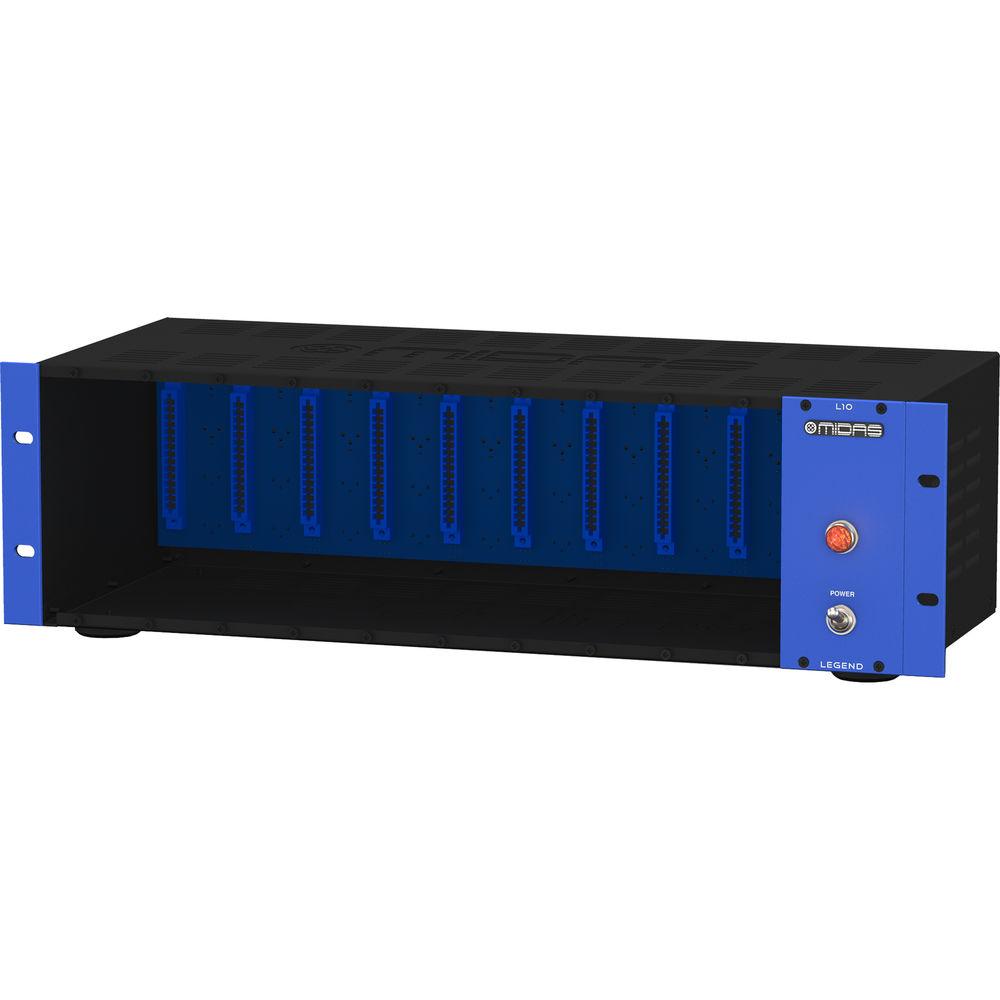

Product description 500 Series: Guide to Effects Read More The Legend L10 from Midas is a steel 3 RU rackmount chassis designed for standard and advanced configurations of up to ten single-width 500 Series modules. The L10's steel chassis and fixed rack ears ensure durability on tour or in the studio. Its XLR connectors (main and aux) are Neutrik, and the power supply is over-specified and auto-switching to accommodate use worldwide.The L10’s unique daisy-chaining capabilities allow for cable-free series processing, commonly used for signal chains such as mic preamp to compressor or compressor to EQ. When using sidechain-capable dynamics modules for stereo and multi-channel applications, the sidechains of multiple mono compressors can be linked. Power status will always be known courtesy of the front-panel power indicator lamp, and a ground-lift switch ensures operation free of ground loops. -
- 10 spaces for single-width 500 Series modules
- Audio link switches allow daisy-chaining of modules
- Comp Bus link switches allow sidechain linking of dynamics modules that offer linkable sidechains

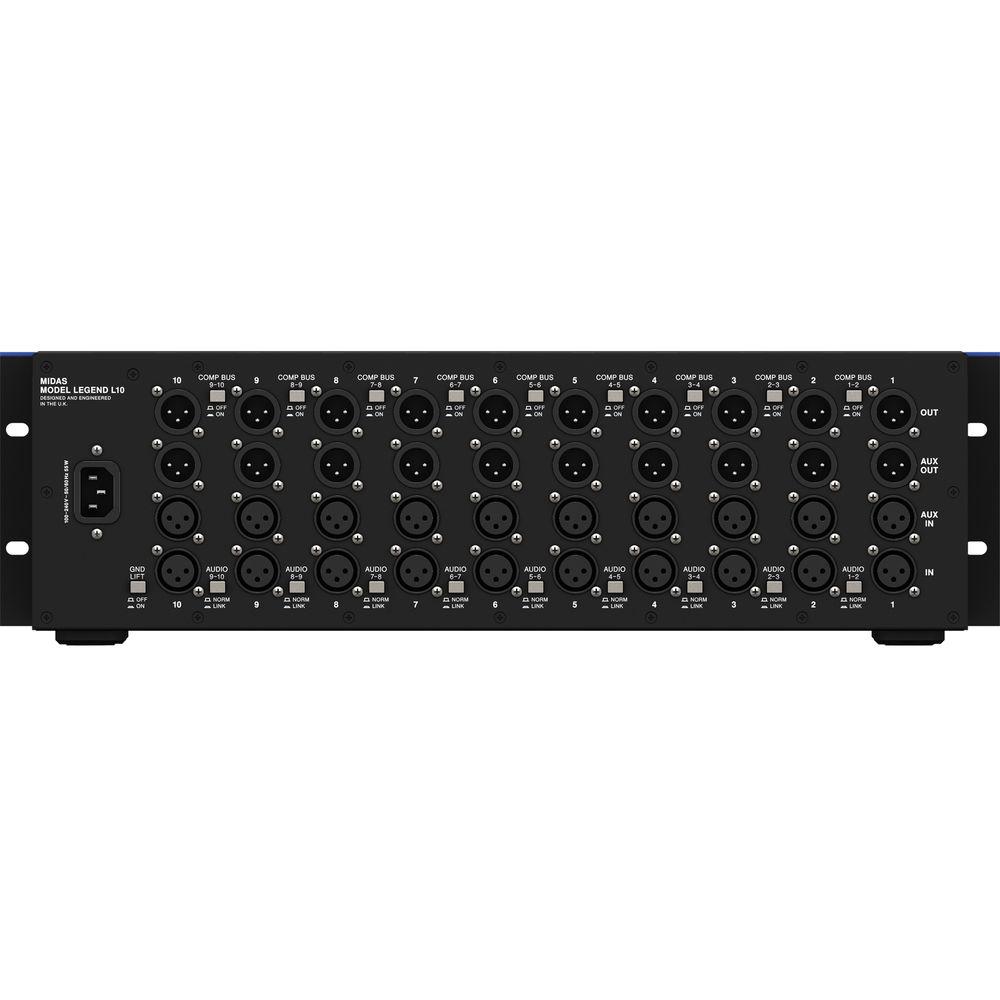

- Neutrik XLR connectors for main inputs and outputs
- Neutrik XLR connectors for aux inputs and outputs (not applicable for all modules)
- Mounts in three standard 19" rack spaces via fixed rack ears
- Over-specified power supply (3.2A at ±16V) features automatic range switching for easy use worldwide
In the Box Midas Legend L10 10-Space 500 Series Rack Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Midas Legend L10 10-Space 500 Series Rack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMidas Legend L10 Specs | I/O | Main Inputs: 10 x balanced XLR
Aux Inputs: 10 x balanced XLR
Main Outputs: 10 x balanced XLR
Aux Outputs: 10 x balanced XLR | | Controls | Front-panel power switch
Rear-panel ground lift
Rear-panel Comp Bus switches
Rear-panel Audio Link switches | | Power Requirements | AC Input Voltage: 100 - 240 VAC at 50 or 60 Hz
Output Voltage: 3.2 A at ±16 V, 300 mA at 48 VDC (phantom power) | | Power Consumption | Typically 55 W | | Chassis Material | Steel | | Dimensions (W × H × D) | 19.0 x 5.5 x 8.3" / 48.3 x 14.0 x 21.1 cm (with feet)
19.0 x 5.2 x 8.3" / 48.3 x 13.2 x 21.1 cm (without feet) | | Weight | 10.8 lb / 4.9 kg |
