User Manual for Midas Legend L6 500 Series Portable Chassis Click to enlarge the picture
Contents of the user manual for the Midas Legend L6 500 Series Portable
- Product category: 500 Series Midas
- Brand: Midas
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Midas 500 Series
 |
User manual for the Midas Legend L6 500 Series Portable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Midas product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Midas user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Midas product will considerably shorten its lifespan!
|

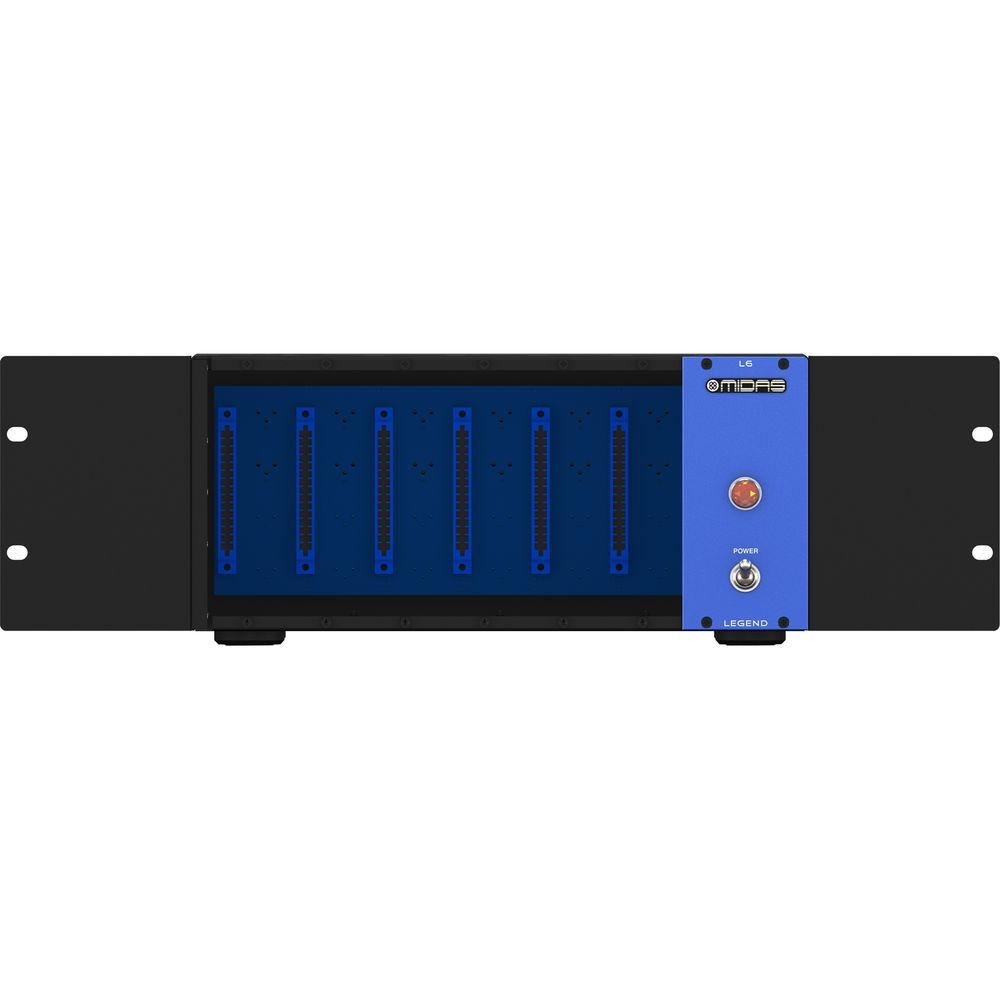

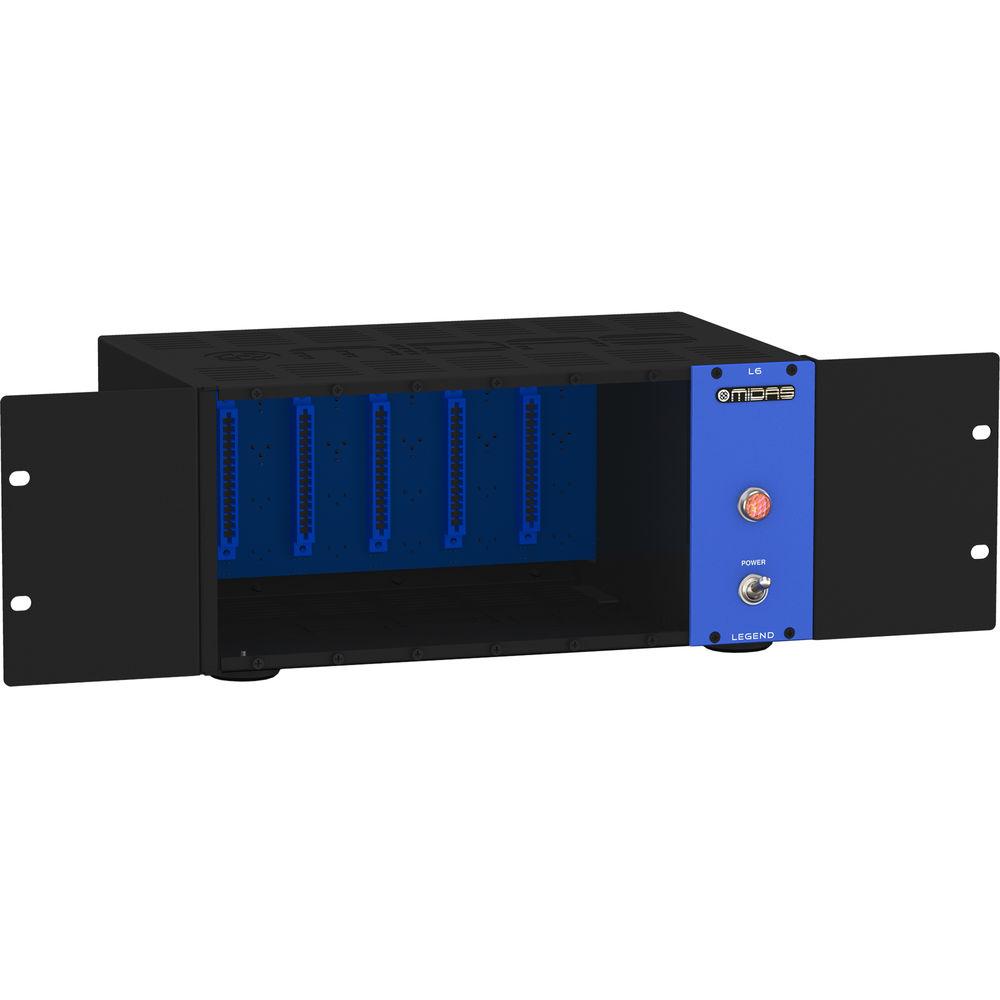

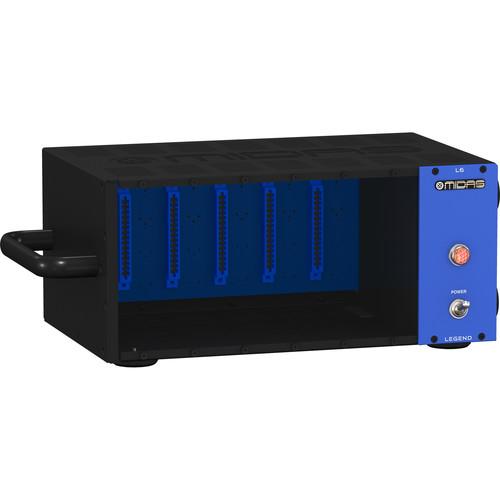

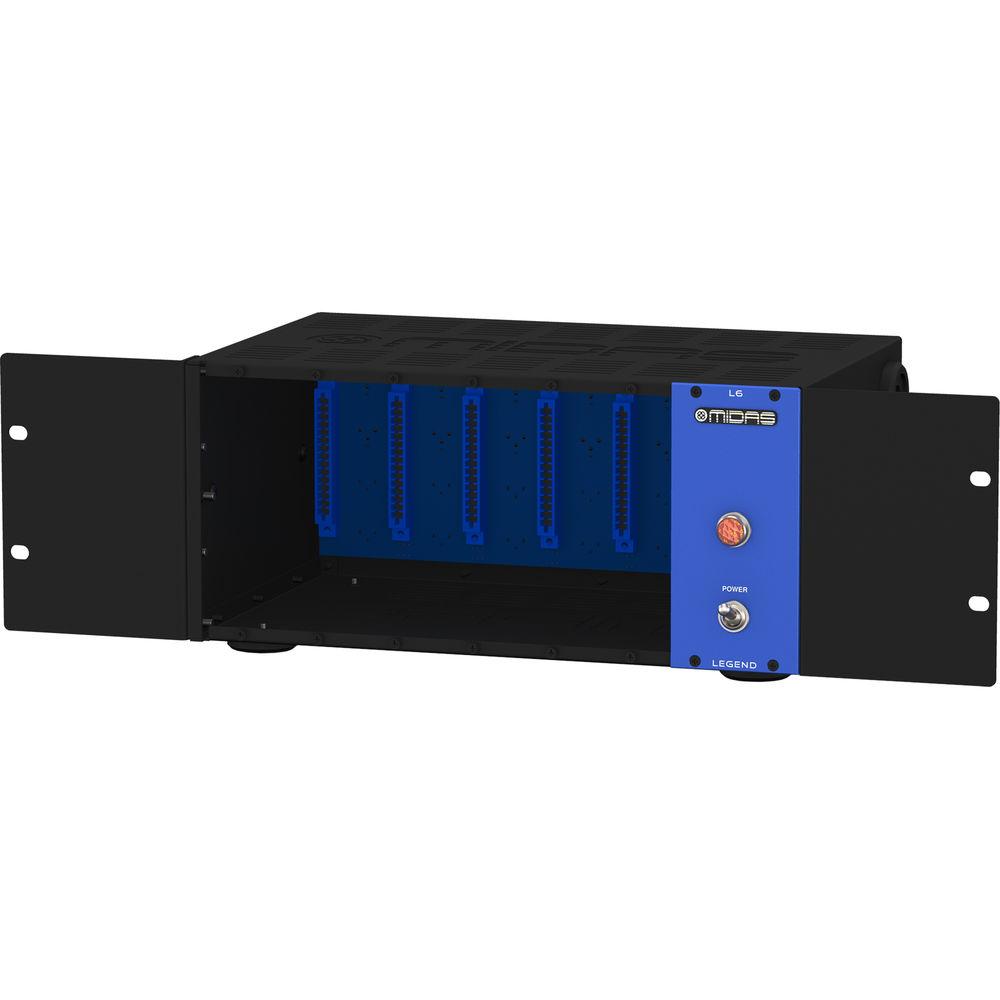

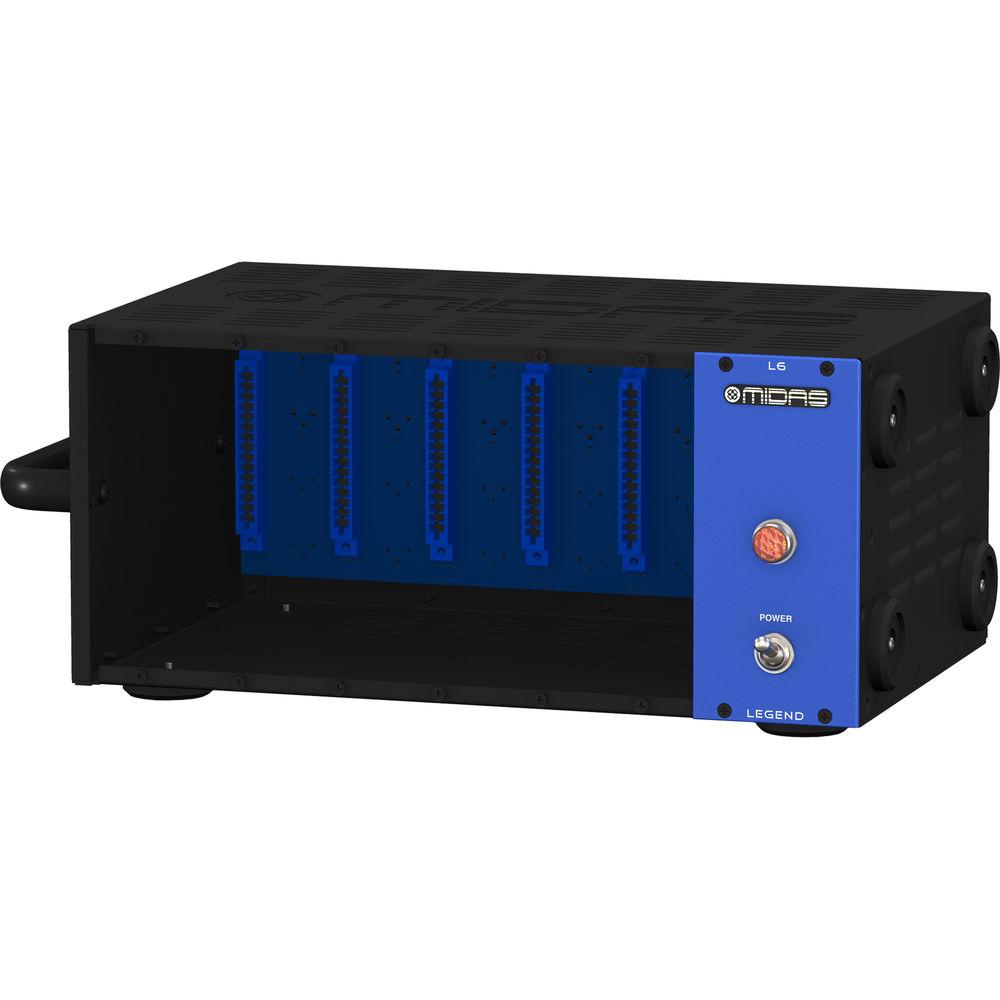

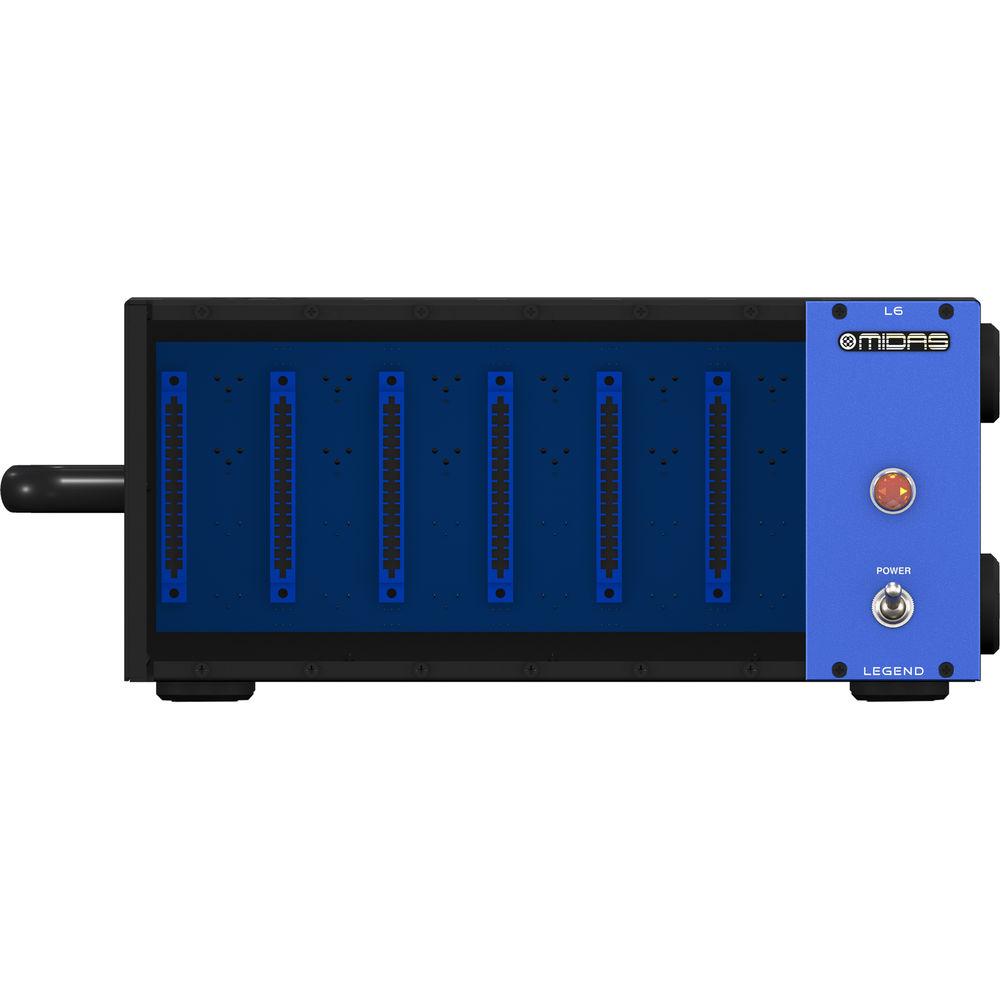

Product description 500 Series: Guide to Effects Read More vvaazequwufaretzydedazwczdqwvyvfadvte The Legend L6 500 Series Portable Chassis from Midas is designed for six single-width modules and features advanced audio routing to reduce cabling complexity, and an auto-ranging universal switch-mode power supply for worldwide use. Audio output link switches provide cable-free daisy-chain connections between modules, while the compressor bus link switches enable stereo and multi-channel dynamics side-chain linking without the need for insert cables. Thanks to an onboard ground lift switch, you can easily eliminate ground loop issues for hum-free performance. For easy transport, the L6's rugged free-standing chassis is equipped with a convenient carrying handle for portable applications. In addition, an included 3 RU 19" rackmount kit allows the L6 to be installed in standard 19" studio and touring racks, occupying only three spaces. The - An included 3 RU 19" rackmount kit allows installation in recording studios and live touring racks
- High-power auto-ranging universal switch-mode power supply for use worldwide
- Over-specified ultra-low noise power supply output provides 3.2A @ ±16V and 300mA @ 48V
- Main and auxiliary inputs and outputs per channel on Neutrik XLR connectors
- Quality components throughout for crystal-clear audiophile signal path
UPC: 748252174741 In the Box Midas Legend L6 500 Series Portable Chassis Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Midas Legend L6 500 Series Portable Chassis in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

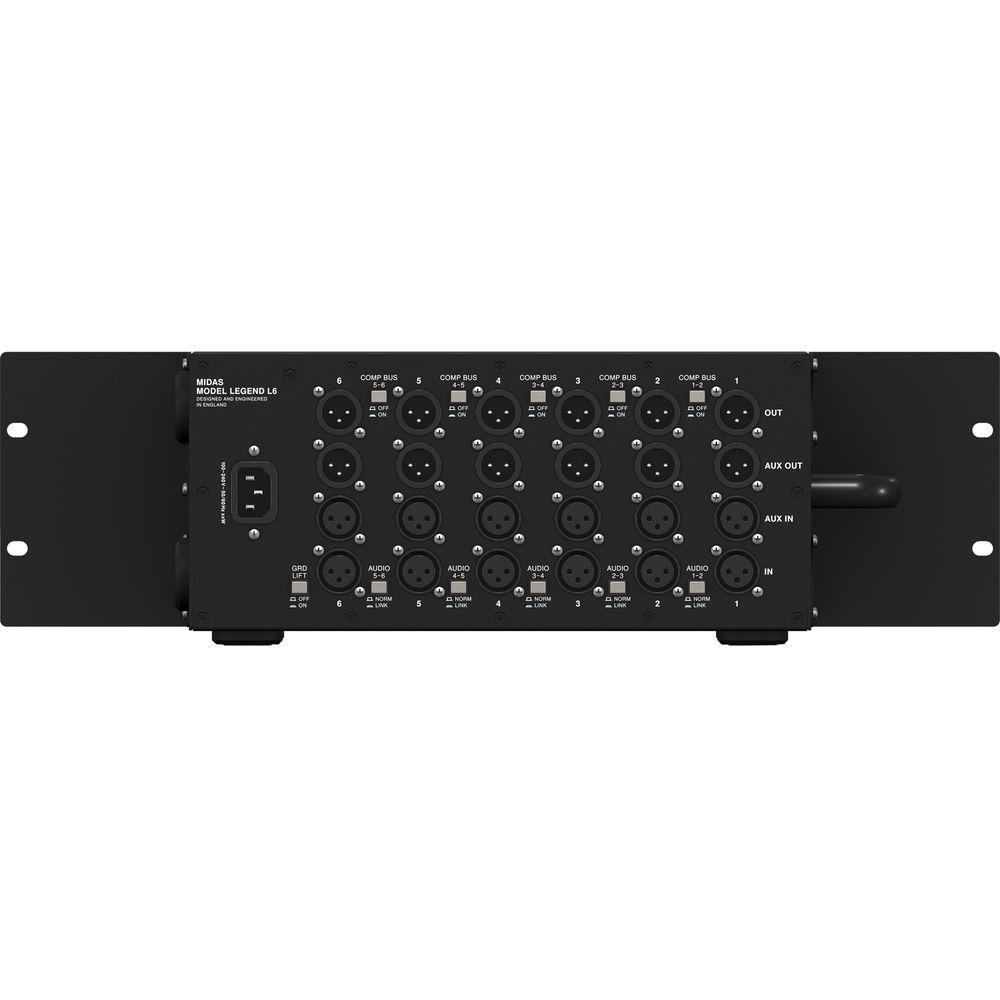

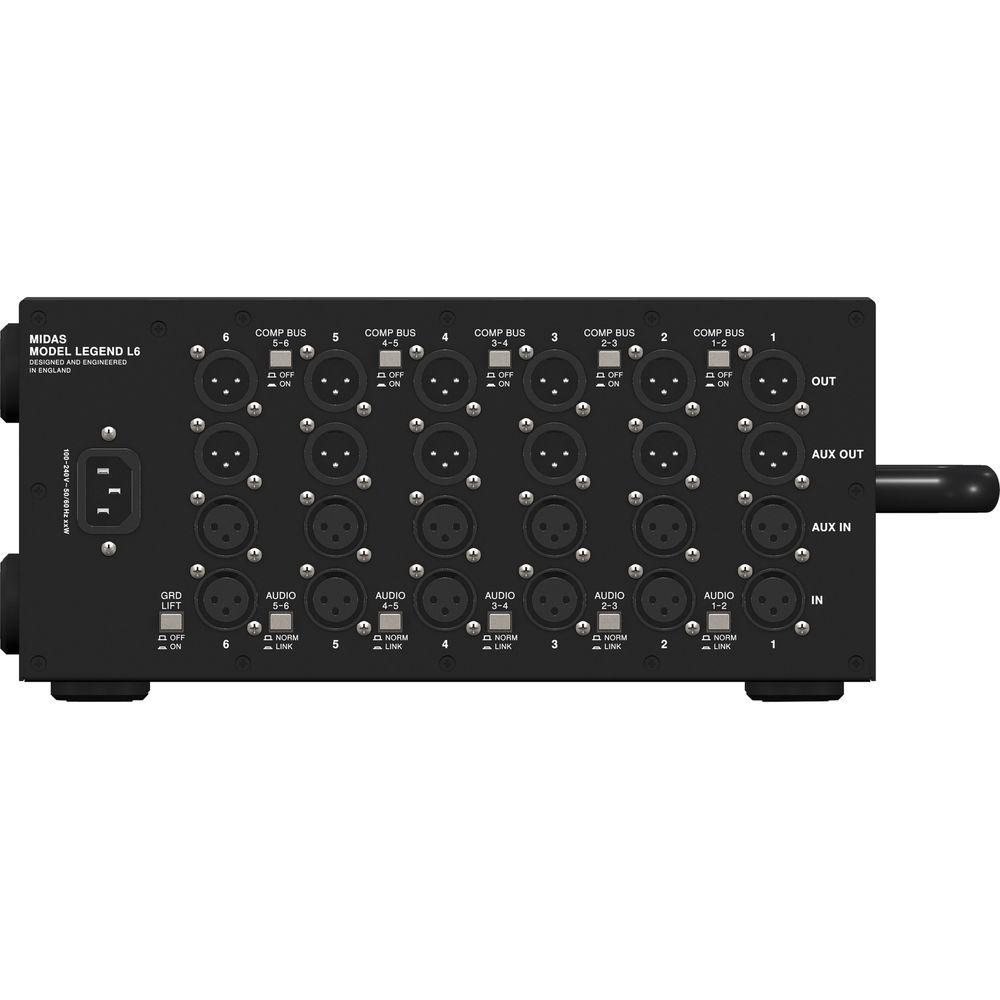

Technical parametersMidas Legend L6 Specs | | | Power | Front panel switch and lamp | | Bus | Comp Bus: Rear panel switches (1-2, 2-3, 3-4, 4-5, 5-6) | | Link | Audio Link: Rear panel switches (1-2, 2-3, 3-4, 4-5, 5-6) | | Ground Lift | Rear panel switch | | | | Input | 6 x balanced XLR | | AUX Input | 6 x balanced XLR | | Output | 6 x balanced XLR | | AUX Outputs | 6 x balanced XLR | | | | AC Input Voltage | 100 to 240 VAC, 50 to 60 Hz, IEC input | | Output Voltage | 3.2 A @ ±16 V, 300 mA @ 48 V (phantom power) | | Consumption | 35 W (typical) | | | | Dimensions | With Handle and Feet: 5.5 x 13.7 x 8.3" (140 x 349 x 211 mm)
With Rack Ears and No Feet: 5.2 x 19.0 x 8.3" (132 x 483 x 211 mm) | | Weight | 9.7 lb (4.4 kg) |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 77 owners. Add your rating and experience with the product.
