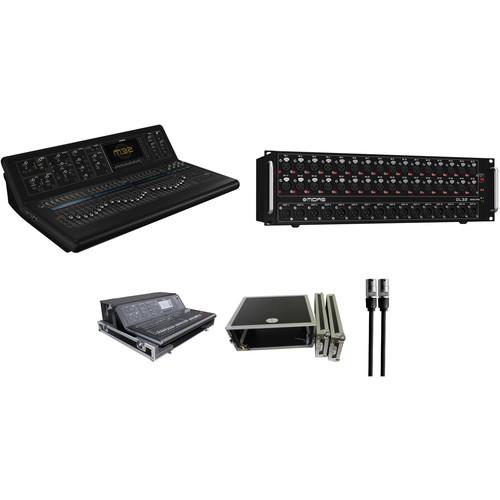

Midas M32-IP Mobile Digital Console Kit

User Manual for Midas M32-IP Mobile Digital Console Kit with Cases, Stage Box, and etherCON Cable

• Product category: Digital Mixers Midas
• Brand: Midas
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Midas Digital Mixers

Product description

• Midas M32-IP Digital Console For Live Performance and Studio Recording The Midas M32-IP is a 40-input digital mixing console that is designed for live performance, and live and studio recording. Housed in a high-performance carbon fiber, aluminum and high-impact steel chassis, this console is designed to be both lightweight and durable, making it ideal for professional audio applications such as touring sound, A/V, club installs and more.

  The mixer features 32 mic inputs with Midas preamplifiers, which are the very same ones used in the industry standard MIDAS XL4 and HERITAGE 3000 consoles. In addition, the console features 25 time-aligned and phase-coherent mix buses and is fitted with 25 motorized 100 mm faders that are rated for 1 million life cycles.

  The M32-IP includes a vast array of built-in effects that are designed to take the place of your outboard signal processors, thus reducing set up times and streamlining your workflow. The Virtual FX rack features 8 true-stereo, studio-grade effects engines each assignable to any input, group or output mix bus. Choose from high-end FX plug-ins that have been modeled after classic audio gear including the Urei 1176, Teletronix LA-2A and Fairchild 670 compressors, as well as the legendary Pultec EQP-1a and EQ5 equalizers. There is also a wide range of reverbs, delays, modulation effects and much more.

  In addition, the M32-IP employs 192 kHz ADC and DAC converters for state-of-the-art conversion and sound quality, capable of catering to the most demanding professional applications. It features on-board USB 2.0 connectivity which delivers a full 32 x 32 channels of audio and MIDI to your DAW, as well as dual AES50 network ports which allow for up to 96 inputs and 96 outputs over a shielded CAT5 cable.
  7" Main Display
  • M32-IP's 7" day-viewable color TFT (Thin-Film Transistor) display shows the setting parameters you need when you need them. Selected for its high-contrast performance and outdoor visibility, TFT is ideal for concert and open air festival venues. Using the high-precision, context-sensitive tactile encoders, the screen comes to life and immediately reports in high definition all adjustments applied to a wide range of parameters. Intelligent design puts control of vital functions such as effects, metering, routing and much more 1 or 2 button presses away
  DCA Groups
  • DCA (Digitally Controlled Amplifier) groups allow control over several signals at once without actually mixing them into a subgroup bus. M32-IP's 8 DCA groups let you control multiple signals via a single fader, such as the entire drum mix, the horn section, or the backup vocalists, etc.
  UPC: 748252143549
• Midas DL32 32-Input / 16-Output Stage Box with 32 Midas Mic Preamps Closing the gap between stage and front of house, the Midas DL32 is a 32-in/16-out stage box that includes 32 fully programmable and remotely controllable Midas mic preamps, which are the same preamps found in the larger PRO Series consoles, and are equipped with switchable +48V phantom power. Additionally, the DL32 features 16 electronically balanced low impedance line level outputs, as all of the DL32's inputs and outputs have been designed to handle both balanced and unbalanced signals, removing any worries about signal degradation, noise, and crosstalk interference. The DL32 also features dual Cirrus Logic Digital to Analog converters, providing a reduced noise floor and lower distortion, and post-DAC filtering to remove wide-band noise.

  The DL32 Stage Box includes an Ultranet port that lets performers connect directly to the Powerplay P16 system for in-ear monitoring, and lets each artist take control of their own monitor mix. This allows for performance and audience concentration without other possible sonic distractions.

  The DL32 comes outfitted with dual ADAT outputs for use in splitter mode and stand-alone digital multi-core applications. Many manufacturers have adopted the ADAT digital interface as a means of transferring digital data between certain types of audio devices, such as mixers, synthesizers, lighting rigs, and effect processors. With the DL32's dual ADAT outputs, you can simply connect to any ADAT-compatible outboard devices.

  The stage box also includes dual AES50 ports for cascading multiple units over a single shielded (STP) CAT5 cable. Two DL32 Stage Boxes can be cascaded, providing connectivity for up to 64 mic/line inputs, 32 balanced outputs. This flexibility benefits both live and studio recording applications, as well as post-production, broadcasting, and audio routing infrastructure.

  The DL32 can be remotely operated up to 328' (100 m) via CAT5/5e cable, simplifying communication between the stage and front of house. The DL32's monitoring / head amp control section allows you to select any one of the 32 inputs or 16 outputs for immediate line checks. In addition to signal metering at the stage box, you can set individual channel gain, apply +48V phantom power, plus you have the option listening directly to the input signal. Even at this distance, all settings can be controlled or programmed from the front panel of the console. Once set, all configuration settings can be locked at the console for system security.

  Each of the 32 Neutrik XLR inputs is equipped with a status indicator LED, which illuminates to show when the +48V phantom power is used, providing instant clarity and ease of use. The automation scenes allow MIDI to be incorporated, so that the external MIDI-compatible devices can be controlled as part of the scene change via the console's MIDI output. Additionally, console events can be triggered from an external MIDI source via the console's MIDI input. You can also control the gain and phantom power settings remotely using the MIDI communication functionality.

  Housed in a road-ready, rugged 19" 3U rack-mountable chassis, the DL32 is designed to withstand the rigors of touring applications.
  • • 32 Midas PRO microphone preamplifiers with switchable +48V phantom power
    • 16 electronically balanced low impedance line level outputs
    • Ultranet personal monitoring system connectivity for in-ear applications
    • Dual ADAT outputs for use in splitter mode and stand-alone digital multicore applications
    • Two AES-3 ports (AES/EBU), e.g. for directly connecting PA system controllers with digital inputs
    • Remote operation up to 328' (100m) via CAT5/5e cable
    • MIDI In/Out for bidirectional communication between FOH console and on-stage MIDI devices
    • Features Neutrik etherCON AES50 and Ultranet network ports
    • Rugged 3U rackmount chassis for durability in portable applications
    • Auto-ranging universal switch-mode power supply
    • Mute-All-Inputs function for quietly patching any inputs on stage
  UPC: 748252156747
• ProX Flight Case for Midas M32 Mixer with Doghouse and Wheels The heavy-duty ProX Flight Case for Midas M32 Mixer with Doghouse and Wheels is a professional-quality ATA-style road case designed to fit and protect the Midas M32 Digital Mixing Console. The case utilizes the rigid and durable signature-series certified laminated gig-ready 3/8" plywood with a silver trim on black honeycomb-exterior design. The reinforced steel-ball corners provide extra protection from on-the-road wear and tear.

  The case also features a doghouse which provides a convenient space to keep cables and small accessories out of sight, as well as a low front panel for easy access to inputs. Four durable 4" casters (two of which can lock) provide ease in transportation. The internal high-density foam is made from 70% recycled material and offers excellent protection. Other features include recessed spring-action handles, industrial recessed butterfly twist-lock latches, industrial-grade rubber feet, and dual-anchor rivets.
  • • Designed to protect your investment
    • Silver trim on black digital honey comb exterior design
    • ATA-300 style gig ready flight road case
    • Signature series certified laminated gig ready 3/8" plywood
    • High-density foam interior support and casing
    • Recessed spring action recessed handles
    • Industrial heavy-duty and powerful steel ball corners
    • Four 4" tough durable casters for mobility (two are locking)
    • Doghouse with hinged lid, designed for easy multi pin snake connection and easy cable access
    • Dual anchor rivets
    • Easy locking fit aluminum tongue and groove
    • Industrial recessed butterfly twist lock latches
    • Industrial grade rubber feet
    • All foam padding made from 85% recycled materials
    • ProX limited lifetime warranty
  UPC: 019372405344
• ProX X-4UE Deluxe Effects Rack with Handles, 14" Deep (4 RU) The 4 RU ProX X-4UE Deluxe Flight Case for Effects Racks is a 19" gig-ready flight case with a depth of 14", dual rack rails, and laminated 1/4" plywood for rugged protection. It can be used to mount effects processors, filters, networking gear, and signal processors such as compressors and EQs, and much more. The X-U4UE flight case is ATA-300 rated and includes external spring-loaded handles and butterfly twist latches. The rubber feet at the base ensure maximum stability when stacking multiple units. The signature series certified laminated gig ready 3/8" plywood ensures dependability and durability while protecting your gear.
  • • 4 space front load rack case
    • Professional equipment rack 14" deep
    • Standard 19" mounting rail width
    • Back and front removable lids
    • Durable and solid rack rails (front and rear)
    • Standard silver on black digital honeycomb exterior design
    • ATA-300 style gig ready flight/road case
    • Signature series certified laminated gig ready 3/8" plywood
    • Recessed spring action recessed handles
    • Easy locking fit and tongue
    • Heavy duty and powerful steel ball corners
    • Dual anchor rivets
    • 2.5" Front/rear door depth
    • Industrial recessed butterfly twist lock latches
    • Industrial grade rubber feet
    • All foam padding made from 85% recycled materials
    • ProX limited-lifetime warranty
  UPC: 654367296226
• Pro Co Sound NE8MC Cat5e RJ45 etherCON Cable (150') The NE8MC Cat5e RJ45 etherCON Cable from Pro Co Sound is a shielded, riser-rated cable with rugged RJ45 connectors on each end making it a robust, lockable solution. This cable is ideal for harsh and demanding environments as well as a variety of commercial applications where durability is required. Furthermore, it's shielded to prevent interference from other devices to ensure a strong and stable signal. UPC: 703272131884

• M32-IP Digital Console For Live Performance and Studio Recording dzseutarsexbzqsqxueuuybtfvturbusz
• Limited 3-Year Warranty Program

• DL32 32-Input / 16-Output Stage Box with 32 Midas Mic Preamps

• ProX - Flight Case for Midas M32 Mixer with Doghouse and Wheels

• ProX - X-4UE Deluxe Effects Rack with Handles, 14" Deep (4 RU)

• Pro Co Sound - NE8MC Cat5e RJ45 etherCON Cable (150')

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Midas M32-IP Digital Console For Live Performance and Studio Recording

  Inputs	Up to 40 simultaneous input channels 32 mic inputs with preamps
  Conversion	192 kHz ADC and DAC converters
  Buses	25 time-aligned and phase-coherent mix buses
  Display	Daylight viewable 7" full-color TFT display screen
  USB Interface	32 x 32 channel USB 2.0 audio interface
  Networking	AES50 networking allows up to 96 inputs and 96 outputs
  Faders	25 motorized 100 mm faders
  Effects	8 stereo signal processing FX engines

  Box Dimensions (LxWxH)	41.0 x 29.5 x 15.2"

• Midas DL32 32-Input / 16-Output Stage Box with 32 Midas Mic Preamps

  Microphone Inputs	32 XLR male 3-pin, Neutrik + 48 V phantom powered
  Outputs (Analog)	16 XLR female 3-pin, Neutrik Dual ADAT
  Preamps	32 Midas PRO
  MIDI I/O	For directional communication
  Monitoring	Ultranet personal monitoring system
  Headphones	1 x 1/4" / 6.3 mm TRS
  Network	AES ports with Klark Teknik SuperMAC technology
  Network Cables	CAT5/5e for up to 328' / 100 m
  Power Supply	Auto-ranging universal switch-mode power supply

  Box Dimensions (LxWxH)	21.5 x 12.5 x 8.5"

• ProX Flight Case for Midas M32 Mixer with Doghouse and Wheels

  Material	Laminated 3/8" / 9.5 mm Plywood Aluminum Edging Steel-Ball Corners High-Density Foam Padding Made from 85% Recycled Materials
  Type of Closure	Butterfly Twist-Lock Latches
  Carrying/Transport Options	Casters: 4 x 4.0" / 101.6 mm (2 x Locking Casters) Handles: 5 x Recessed Spring-Loaded Handles
  Dimensions	Interior: 23.9 x 35.1 x 10.1" / 607.1 x 891.5 x 256.5 mm Exterior: 39.0 x 14.5 x 43.0" / 990.6 x 368.3 x 1,092.2 mm
  Weight	107.0 lb / 48.5 kg

  Box Dimensions (LxWxH)	40.5 x 38.5 x 17.0"

• ProX X-4UE Deluxe Effects Rack with Handles, 14" Deep (4 RU)

  Material of Construction	Laminated 1/4" (6.3 mm) plywood Aluminum Ball Corners
  Rack Unit Space	4 RU
  Dimensions (L x W x H)	20.5 x 8.0 x 20.0" / 520.7 x 203.2 x 508.0 mm
  Weight	36 lb (16 kg)

  Box Dimensions (LxWxH)	10.0 x 10.0 x 10.0"

• Pro Co Sound NE8MC Cat5e RJ45 etherCON Cable (150')

  Cable Length	150' / 45.7 m
  Ethernet Standards	Cat 5e
  Connector 1	RJ45 Male
  Connector 2	RJ45 Male

  Box Dimensions (LxWxH)	12.2 x 11.2 x 2.9"
