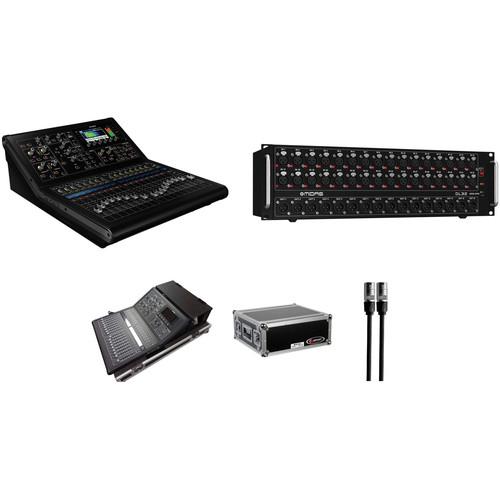

Product description This B&H Kit combines the Midas M32R Digital Console with a Midas DL32 Stage Box, an ATA-300-rated flight case, an ATA-300-rated rackmount case, and a 150' professional CAT5e RJ45 etherCON cable to create a high-quality mobile setup for live sound or remote recording applications. - Midas M32R 40-Input Digital Mixing Console The Midas M32R is a digital mixing console that features 16 Midas PRO microphone preamplifiers, 25 time-aligned and phase-coherent mix buses, 8 digital FX engines, and up to 40 simultaneous input channels when used with an optional networked remote I/O solution such as the Midas DL16 digital stage box. This console is an ideal choice for a multitude of live sound, broadcast, studio recording and post production applications.
The M32R console features 17 Midas PRO motorized 100 mm faders that are rated for 1 million life cycles. Currently able to capture audio at 24-bit, 48 kHz sample resolution, the console is "future-proofed" with 96 kHz capable open architecture, which Midas intends to make available for the line.
The M32R includes an extensive array of on-board effects, featuring 8 stereo, studio-grade effects engines, each assignable to any input, group or output mix bus. Choose from high-end FX modules, including a range of reverbs, delays, EQs, dynamics, and much more. Modeled after some of history's most iconic and sought-after effects processors such as the Teletronix LA-2A, Urei 1176LN, Fairchild 670, and the Pultec EQP-1a, the M32R's effects run inside the low-latency, 40-bit floating point environment of the mix engine. - Features:
-
- Live performance and studio recording digital console with up to 40 simultaneous input channels
- 16 Midas PRO microphone preamplifiers
- 25 time-aligned and phase-coherent mix buses
- AES50 networking allows up to 96 inputs and 96 outputs
- Open architecture allows for future 96 kHz operation
- 192 kHz ADC and DAC converters for outstanding audio performance
- Industry-leading design by Bentley Motors Designer
- High-performance aluminum and high-impact steel structure
- Rack-mount brackets included for ultimate flexibility
- 40-bit floating point digital signal processing
- 8 DCA and 6 mute groups
- 8 digital signal processing effects engines
- 17 Midas PRO motorized 100 mm faders
- Daylight viewable 5" full-color TFT display screen
- Optional expansion cards: ADAT, MADI, Dante
- Included, pre-installed USB card allows console to act as 32 x 32 channel USB 2.0 audio interface
- DAW remote control emulations of Mackie Control and HUI protocols
- Optional wireless remote control with Midas Apps for iPhone and iPad
- Auto-ranging universal switch-mode power supply
UPC: 653341305831 - Midas DL32 32-Input / 16-Output Stage Box with 32 Midas Mic Preamps Closing the gap between stage and front of house, the Midas DL32 is a 32-in/16-out stage box that includes 32 fully programmable and remotely controllable Midas mic preamps, which are the same preamps found in the larger PRO Series consoles, and are equipped with switchable +48V phantom power. Additionally, the DL32 features 16 electronically balanced low impedance line level outputs, as all of the DL32's inputs and outputs have been designed to handle both balanced and unbalanced signals, removing any worries about signal degradation, noise, and crosstalk interference. The DL32 also features dual Cirrus Logic Digital to Analog converters, providing a reduced noise floor and lower distortion, and post-DAC filtering to remove wide-band noise.
The DL32 Stage Box includes an Ultranet port that lets performers connect directly to the Powerplay P16 system for in-ear monitoring, and lets each artist take control of their own monitor mix. This allows for performance and audience concentration without other possible sonic distractions.
The DL32 comes outfitted with dual ADAT outputs for use in splitter mode and stand-alone digital multi-core applications. Many manufacturers have adopted the ADAT digital interface as a means of transferring digital data between certain types of audio devices, such as mixers, synthesizers, lighting rigs, and effect processors. With the DL32's dual ADAT outputs, you can simply connect to any ADAT-compatible outboard devices.
The stage box also includes dual AES50 ports for cascading multiple units over a single shielded (STP) CAT5 cable. Two DL32 Stage Boxes can be cascaded, providing connectivity for up to 64 mic/line inputs, 32 balanced outputs. This flexibility benefits both live and studio recording applications, as well as post-production, broadcasting, and audio routing infrastructure.
The DL32 can be remotely operated up to 328' (100 m) via CAT5/5e cable, simplifying communication between the stage and front of house. The DL32's monitoring / head amp control section allows you to select any one of the 32 inputs or 16 outputs for immediate line checks. In addition to signal metering at the stage box, you can set individual channel gain, apply +48V phantom power, plus you have the option listening directly to the input signal. Even at this distance, all settings can be controlled or programmed from the front panel of the console. Once set, all configuration settings can be locked at the console for system security.
Each of the 32 Neutrik XLR inputs is equipped with a status indicator LED, which illuminates to show when the +48V phantom power is used, providing instant clarity and ease of use. The automation scenes allow MIDI to be incorporated, so that the external MIDI-compatible devices can be controlled as part of the scene change via the console's MIDI output. Additionally, console events can be triggered from an external MIDI source via the console's MIDI input. You can also control the gain and phantom power settings remotely using the MIDI communication functionality.
Housed in a road-ready, rugged 19" 3U rack-mountable chassis, the DL32 is designed to withstand the rigors of touring applications. -
- 32 Midas PRO microphone preamplifiers with switchable +48V phantom power
- 16 electronically balanced low impedance line level outputs
- Ultranet personal monitoring system connectivity for in-ear applications
- Dual ADAT outputs for use in splitter mode and stand-alone digital multicore applications
- Two AES-3 ports (AES/EBU), e.g. for directly connecting PA system controllers with digital inputs
- Remote operation up to 328' (100m) via CAT5/5e cable
- MIDI In/Out for bidirectional communication between FOH console and on-stage MIDI devices
- Features Neutrik etherCON AES50 and Ultranet network ports
- Rugged 3U rackmount chassis for durability in portable applications
- Auto-ranging universal switch-mode power supply
- Mute-All-Inputs function for quietly patching any inputs on stage
UPC: 748252156747 - ProX Flight Case for Midas M32R Mixer with Doghouse and Wheels The heavy-duty Flight Case for Midas M32R Mixer with Doghouse and Wheels from ProX is a professional-quality ATA-style road case designed to fit and protect the Midas M32R Digital Mixing Console. The case utilizes the rigid and durable signature-series certified laminated gig-ready 3/8" plywood with a silver trim on black honeycomb-exterior design. The reinforced steel-ball corners provide extra protection from on-the-road wear and tear.
The case also features a doghouse which provides a convenient space to keep cables and small accessories out of sight, as well as a low front panel for easy access to inputs. Four durable 4" casters (two of which can lock) provide ease in transportation. The internal high-density foam is made from 70% recycled material and offers excellent protection. Other features include recessed spring-action handles, industrial recessed butterfly twist-lock latches, industrial-grade rubber feet, and dual-anchor rivets. -
- Standard-style, silver trim on black digital-honeycomb exterior design
- ATA-300-style gig-ready flight road case
- Signature-series certified laminated gig-ready 3/8" plywood
- High-density foam-interior support & casing
- Recessed spring-action recessed handles
- Industrial heavy-duty and powerful steel-ball corners
- Four 4" tough durable Casters for mobility (two are locking)
- Doghouse with hinged-lid design for easy multi-pin snake connection and easy cable access
- Dual-anchor rivets
- Easy-locking-fit aluminum tongue and groove
- Industrial recessed butterfly twist-lock latches
- Industrial-grade rubber feet
- All-foam padding made from 85% recycled materials
UPC: 019372406037 - Odyssey Innovative Designs FRER4 Flight Ready Special Effects Rack Case The Odyssey Innovative Design FRER4 Flight Ready Special Effects Rack Case (Black) is made of ABS plastic laminate over 1/4" plywood, made to protect and transport four space special effects 19" rackmount gear. The case has steel hardware, chrome-plated butterfly latches and recessed, spring-loaded handles. The case also has small steel corners, aluminum edging and rubber feet.
- Black case made of ABS plastic laminate over 1/4" plywood, made to ship, carry and protect shallow special effects racks.
- Removable front and rear covers
- Chrome-plated butterfly latches
- Recessed, spring-loaded, chrome-plated handles
- Rubber feet to prevent skidding
UPC: 807822025699 - Pro Co Sound NE8MC Cat5e RJ45 etherCON Cable (150') The NE8MC Cat5e RJ45 etherCON Cable from Pro Co Sound is a shielded, riser-rated cable with rugged RJ45 connectors on each end making it a robust, lockable solution. This cable is ideal for harsh and demanding environments as well as a variety of commercial applications where durability is required. Furthermore, it's shielded to prevent interference from other devices to ensure a strong and stable signal. UPC: 703272131884
In the Box - M32R 40-Input Digital Mixing Console fcqazffvwxbybyzdwy
- Power Cord
- Rack-Mount Brackets
- Limited 3-Year Warranty
- DL32 32-Input / 16-Output Stage Box with 32 Midas Mic Preamps
- ProX - Flight Case for Midas M32R Mixer with Doghouse and Wheels
- Odyssey Innovative Designs - FRER4 Flight Ready Special Effects Rack Case
- Pro Co Sound - NE8MC Cat5e RJ45 etherCON Cable (150')
Table of Contents
|
Upload User Manual
Have you got an user manual for the Midas M32R Mobile Digital Console Kit with 32-Channel Stage Box, Cases, and etherCON Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Midas M32R 40-Input Digital Mixing Console
| | | Input Channels | 32 input channels, 8 aux channels, 8 FX return channels | | Output Channels | 8 / 16 | | Buses | 16 aux buses, 6 matrices, main LRC: 100 | | Effects Engine | 8 / 16, (True Stereo / Mono) | | Automation | Internal Show Automation (Structured Cues / Snippets): 500 / 100 | | Scenes | Internal Total Recall Scenes (Incl. Preamplifiers and Faders): 100 | | Signal Processing | 40-bit floating point | | A/D and D/A Conversion | A/D Conversion (8-channel, 96 kHz Ready): 24-bit, 114 dB dynamic range, A-weighted
D/A Conversion (stereo, 96 kHz Ready): 24-bit, 120 dB dynamic range, A-weighted | | Latency | 0.8 ms, (I/O, console input to output)
1.1 ms, (network latency, stage box in > console > stage box out) | | | | Preamplifier | Midas PRO Series Microphone Preamplifiers (XLR): 16 | | Talkback | Talkback Microphone Input (XLR): 1 | | RCA | RCA Inputs / Outputs: 2 / 2 | | Audio Out (XLR) | XLR Outputs: 8 | | Monitoring Outputs | Monitoring Outputs (XLR / ¼" TRS Balanced): 2 / 2 | | Auxiliary | Aux Inputs/Outputs (¼" TRS Balanced): 6 / 6 | | Headphones | Phones Output (¼" TRS): 1 (Stereo) | | Networking | AES50 Ports (Klark Teknik SuperMAC): 2
Ultranet P-16 Connector (No Power Supplied): 1 | | Expansion | Expansion Card Interface: 32 Channel Audio Input / Output | | MIDI | MIDI Inputs / Outputs: 1 / 1 | | USB | USB Type A (Audio and Data Import / Export): 1
USB Type B: 1, rear panel, for remote control | | Ethernet | RJ45: 1, rear panel, for remote control | | | | Design | Midas PRO Series | | THD+N | THD+N (0 dB gain, 0 dBu output): <0.01% unweighted
THD+N (+40 dB gain, 0 to +20 dBu output): <0.03% (unweighted) | | Input Impedance | Input Impedance (Unbalanced / Balanced): 10 kOhms / 10 kOhms | | Maximum Input Level | Non-Clip Maximum Input Level: +23 dBu | | Phantom Power | +48 V, (switchable per input) | | Equivalent Input Noise | @ +45 dB gain (150 ohm source): -125 dB (22 Hz - 22 kHz, unweighted) | | CMRR | CMRR @ Unity Gain (Typical): >70 dB
CMRR @ 40 dB Gain (Typical): >90 dB | | | | Frequency Response | @ 48 kHz Sample Rate: 0 to -1 dB (20 Hz - 20 kHz) | | Dynamic Range | Analog In to Analog Out: 106 dB (22 Hz - 22 kHz, unweighted)
A/D, Preamplifier and Converter (Typical): 109 dB (22 Hz - 22 kHz, unweighted)
D/A, Converter and Output (Typical): 109 dB (22 Hz - 22 kHz, unweighted) | | Crosstalk Rejection Typically @ 1 kHz | 100 dB, adjacent channels | | Output Level | XLR Connectors (Nominal / Maximum): +4 dBu / +21 dBu | | Output Impedance | XLR Connectors (Unbalanced / Balanced): 50 ohms / 50 ohms
TRS (Unbalanced / Balanced): 50 ohms / 50 ohms
Phones Output Impedance / Maximum output Level: 40 ohms / +21 dBu (Stereo) | | Input Impedance | TRS Connectors (Unbalanced / Balanced): 20 kOhms / 40 kOhms | | Maximum Input Level | Non-Clip Maximum Input Level, TRS Connectors: +21 dBu | | Output Level | TRS (Nominal / Maximum): +4 dBu / +21 dBu | | Residual Noise | Residual Noise Level, Out 1-16 XLR Connectors, Unity Gain: -85 dBu 22 Hz - 22 kHz unweighted
Residual Noise Level, Out 1-16 XLR Connectors, Muted: -88 dBu 22 Hz - 22 kHz unweighted
Residual Noise Level, TRS and Monitor out XLR Connectors: -83 dBu 22 Hz - 22 kHz unweighted | | | | Screens | Main Screen: 5" TFT LCD, 800 x 480 resolution, 262 k colors
Channel LCD Screen: 128 x 64 LCD with RGB color backlight
Main Meter: 18-segment (-45 dB to clip) | | | | Power Supply | Switch-Mode Power Supply: Auto-ranging 100 - 240 VAC (50 / 60 Hz) ±10% | | Power Consumption | 70 W | | | | Operating Temperature | 41 - 104°F (5 - 40°C) | | Dimensions | 18.8 x 24.3 x 8.2" (478 x 617 x 208 mm) | | Weight | 31.5 lb (14.3 kg) | | | | Box Dimensions (LxWxH) | 28.0 x 24.0 x 13.0" | - Midas DL32 32-Input / 16-Output Stage Box with 32 Midas Mic Preamps
| | | Microphone Inputs | 32 XLR male 3-pin, Neutrik
+ 48 V phantom powered | | Outputs (Analog) | 16 XLR female 3-pin, Neutrik
Dual ADAT | | Preamps | 32 Midas PRO | | MIDI I/O | For directional communication | | Monitoring | Ultranet personal monitoring system | | Headphones | 1 x 1/4" / 6.3 mm TRS | | Network | AES ports with Klark Teknik SuperMAC technology | | Network Cables | CAT5/5e for up to 328' / 100 m | | Power Supply | Auto-ranging universal switch-mode power supply | | | | Box Dimensions (LxWxH) | 21.5 x 12.5 x 8.5" | - ProX Flight Case for Midas M32R Mixer with Doghouse and Wheels
| Material | Laminated 3/8" / 9.5 mm plywood
Aluminum edging
Steel-ball corners
High-density foam padding made from 85% recycled materials | | Type of Closure | Butterfly twist-lock latches | | Carrying/Transport Options | Casters: 4x 4.0" / 101.6 mm (2x locking casters)
Handles: 5x Recessed spring-loaded handles | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 38.5 x 24.7 x 14.5" | - Odyssey Innovative Designs FRER4 Flight Ready Special Effects Rack Case
| Material | Black ABS laminated over 1/4" plywood | | Type of Closure | Chrome-plated butterfly latches | | Exterior Dimensions | 21.5 x 9.0 x 21.25" (54.61 x 22.86 x 53.98cm) (WxHxD) Approximate dimensions | | Interior Dimensions | Vertical rack: Four spaces 7.0" (17.78cm)
Internal Depth (Rail to Rail): 12.375" (31.43cm)
Internal Depth (Rail to Cover): 15.875" (40.32cm) | | Shock Absorbent | No | | Rails | Front and rear | | Accommodates | Four space 19" special effects gear | | Carrying/Transport Options | Recessed handles | | Weight | 24 lbs (10.89kg) Approximate weight | | | | Box Dimensions (LxWxH) | 21.9 x 20.7 x 10.1" | - Pro Co Sound NE8MC Cat5e RJ45 etherCON Cable (150')
| | | Cable Length | 150' / 45.7 m | | Ethernet Standards | Cat 5e | | Connector 1 | RJ45 Male | | Connector 2 | RJ45 Male | | | | Box Dimensions (LxWxH) | 12.2 x 11.2 x 2.9" |
