User Manual for Midas MR18 18-Input Digital Mixer for iPad Android Tablets with Wi-Fi and USB Recorder Click to enlarge the picture
Contents of the user manual for the Midas MR18 18-Input Digital Mixer for
- Product category: Digital Mixers Midas
- Brand: Midas
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Midas Digital Mixers
 |
User manual for the Midas MR18 18-Input Digital Mixer for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Midas product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Midas user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Midas product will considerably shorten its lifespan!
|

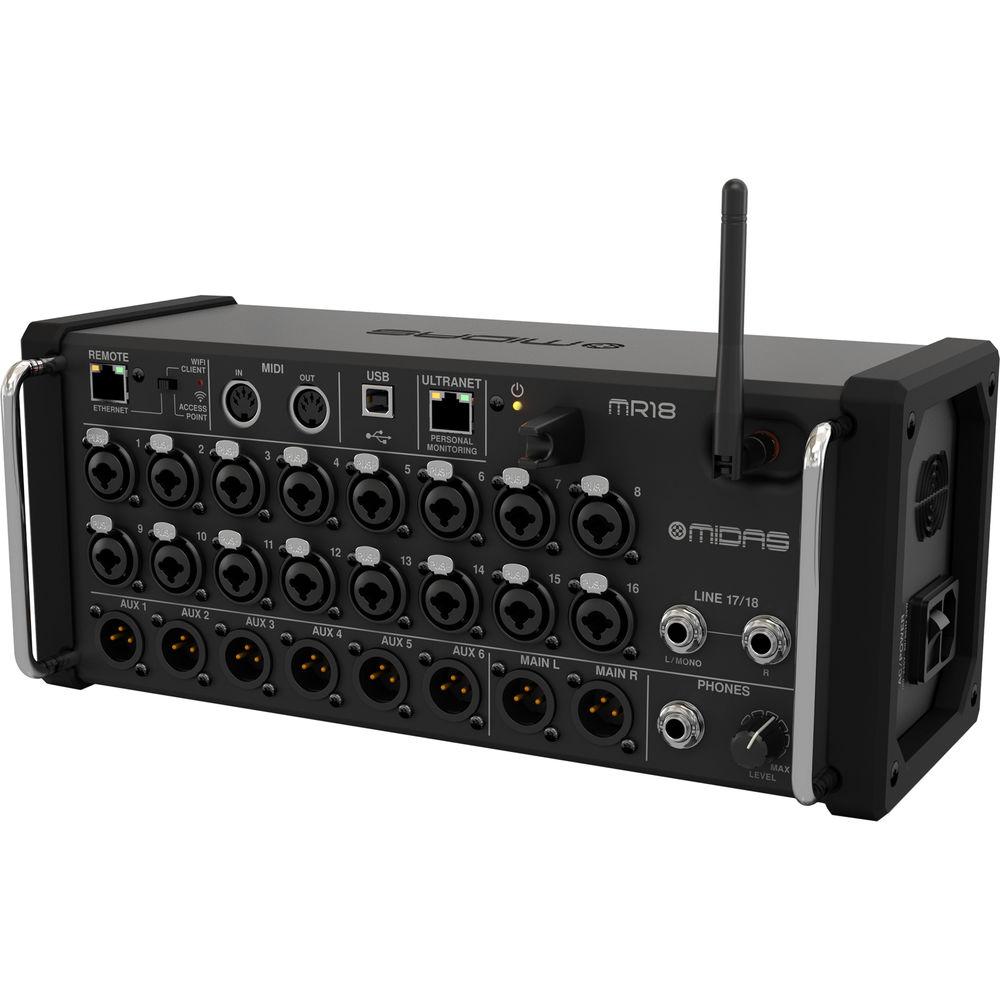

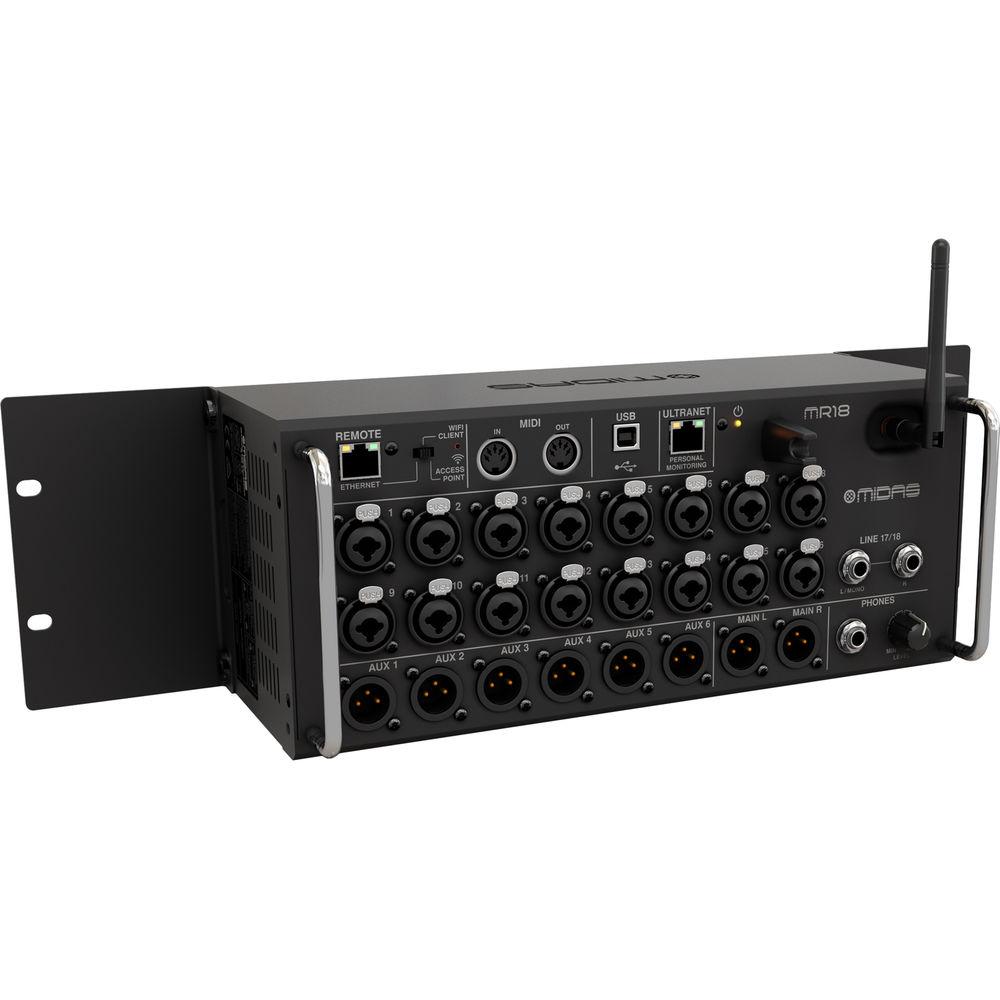

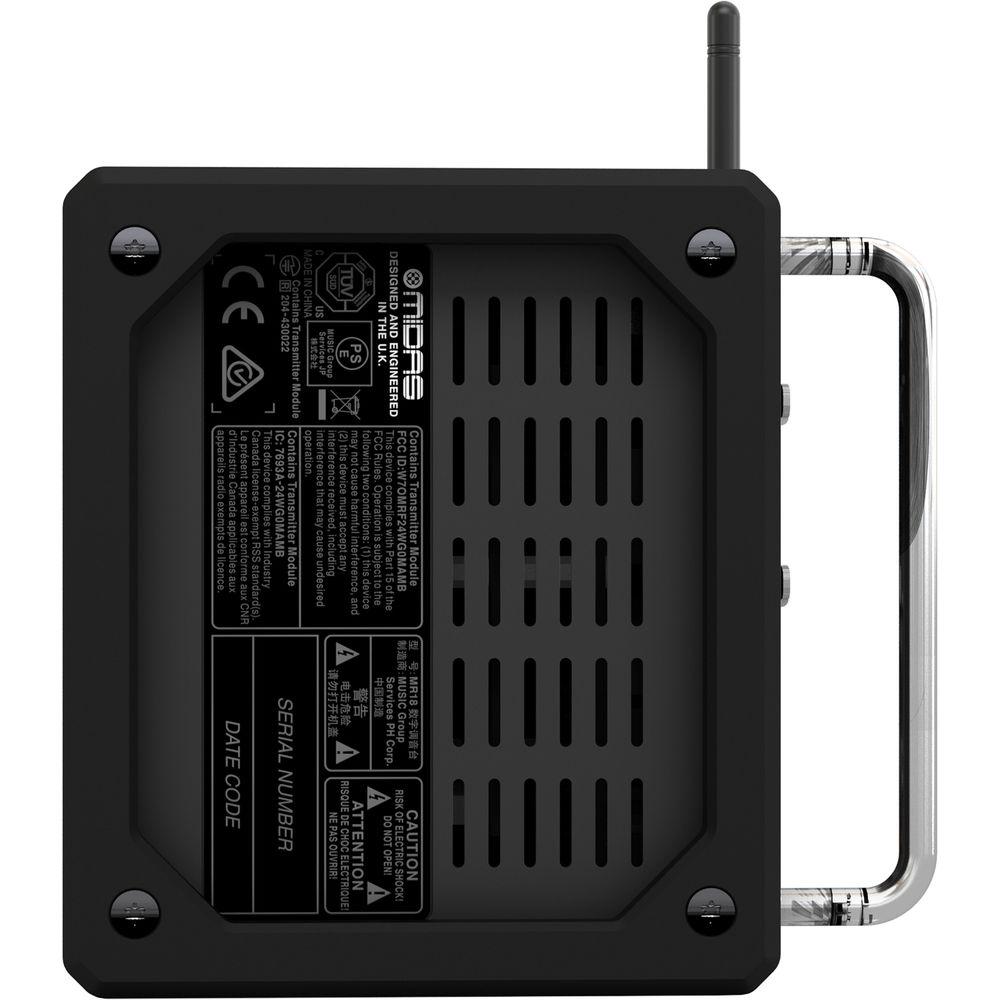

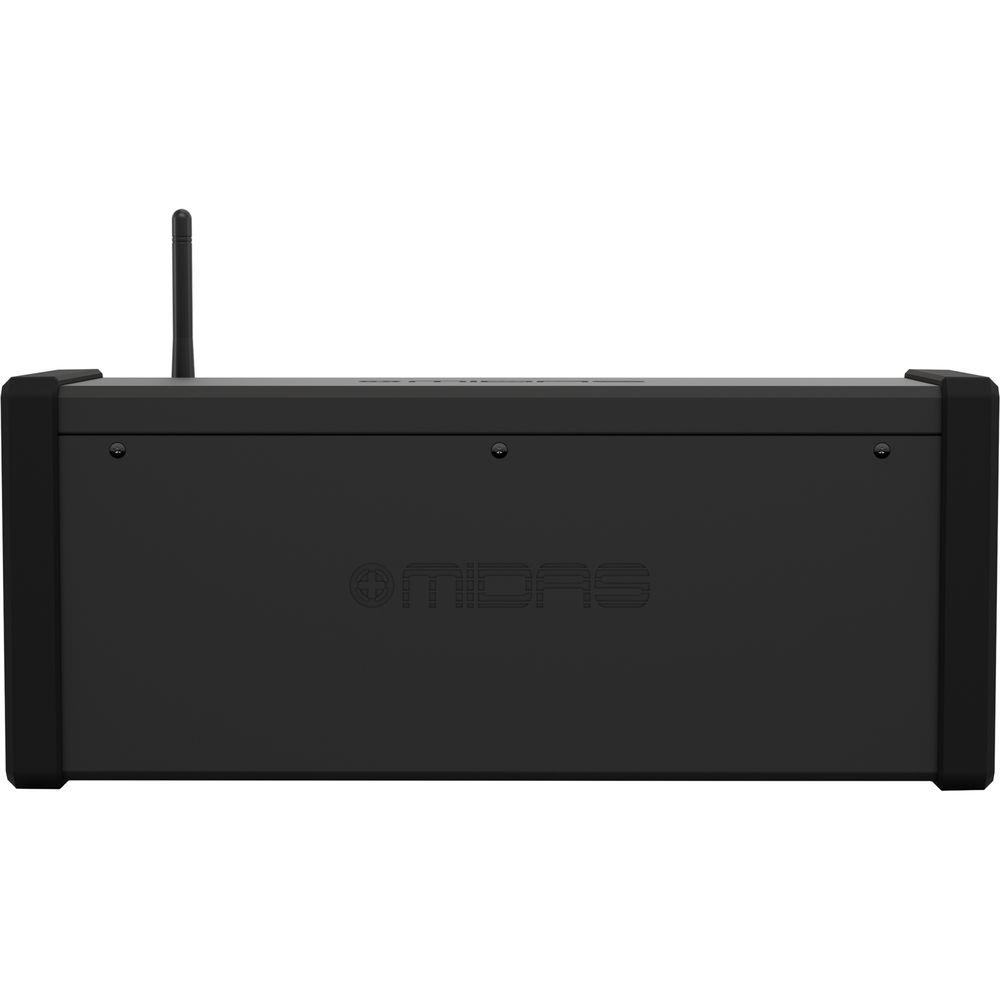

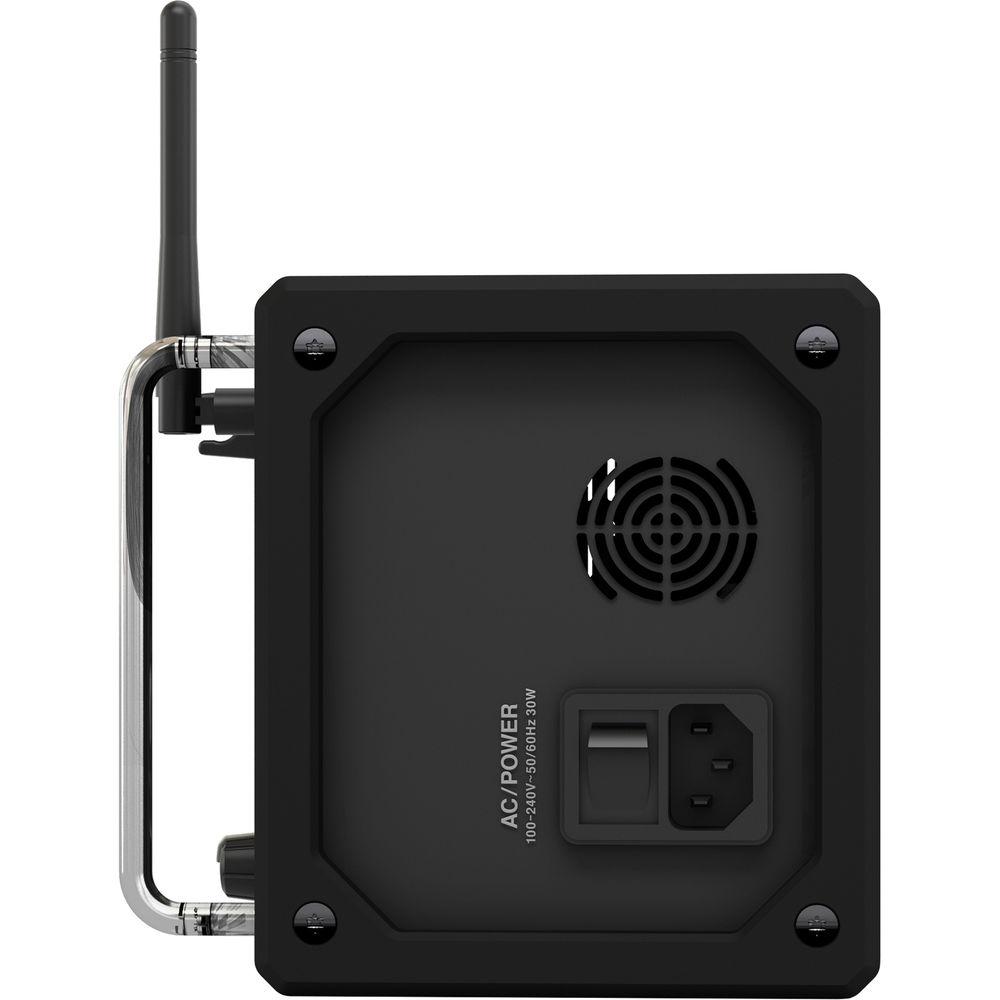

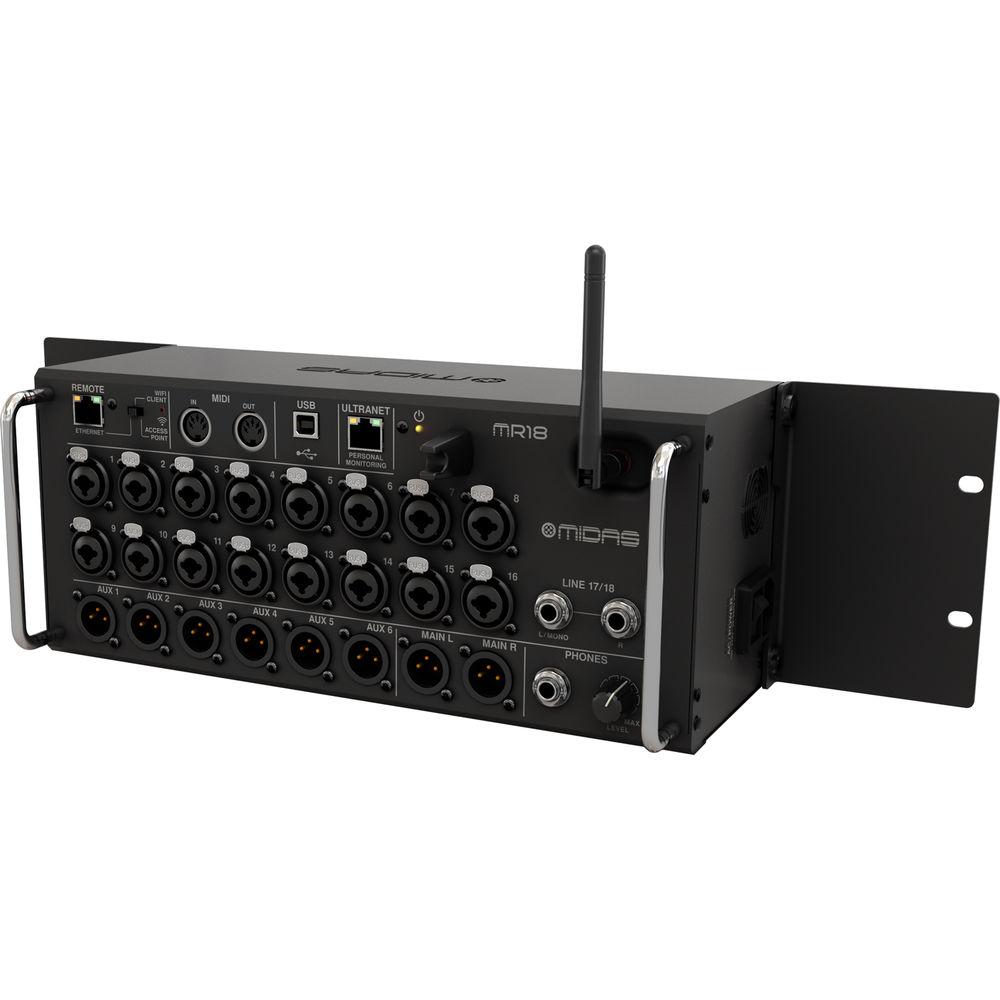

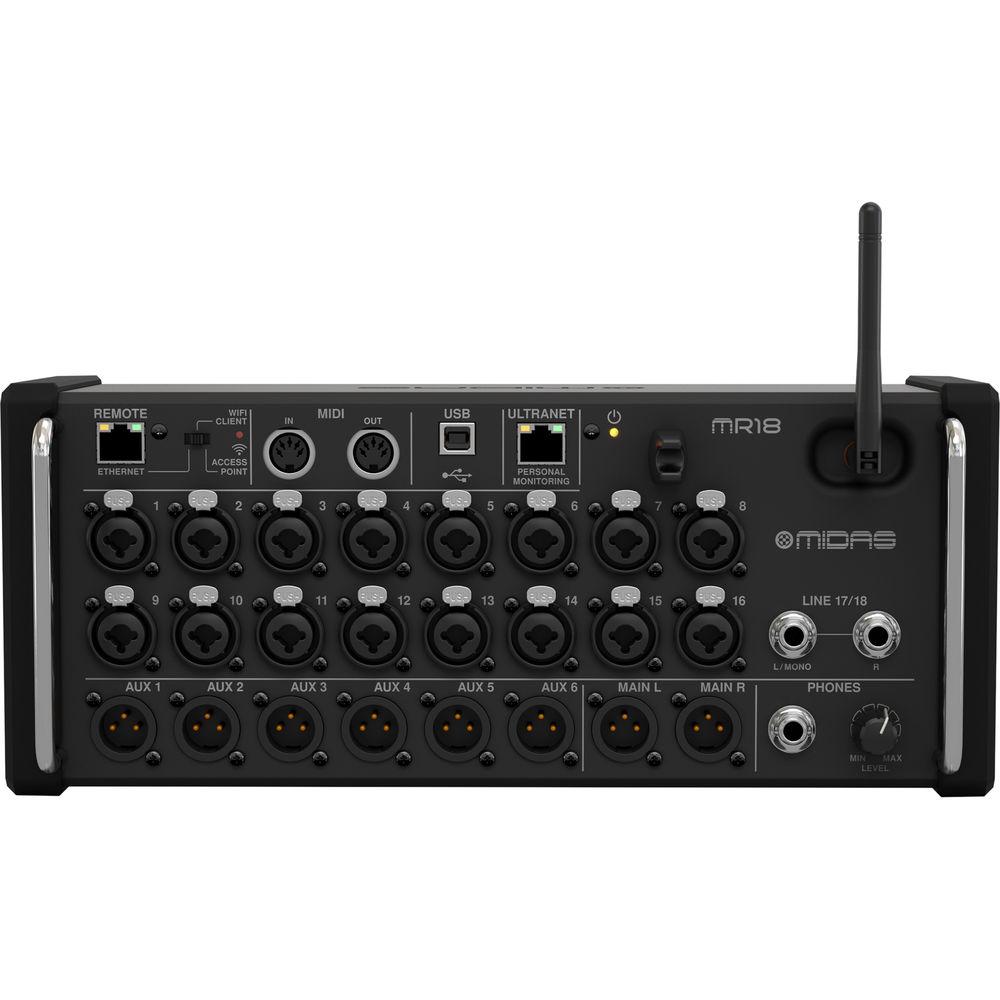

Product description The MR18 from Midas is an 18-input, portable, rackmountable mixer for iPad and Android tablets. It can be used for both live and studio environments in applications for live stage, theater, houses of worship, rehearsals, and more. It features sixteen Midas mic preamps and an integrated Wi-Fi module for wireless control, giving you the ability to move around and manipulate all parameters of your mix. Furthermore, it has USB connectivity for file storage and future system updates. The built-in 18 x 18 channel, bidirectional USB interface makes the MR18 a powerful digital mixing solution for recording directly to your iPad or Windows computer. You can then dial-in a monitoring mix with effects and zero latency while sending your stereo mix and the keyboard player's MIDI notes to your DAW for recording.The MR18 has additional features including the MIDI in/out jack for controlling the mixer via MIDI equipment, using Mackie control protocol via a live-performance controller. This mixer also comes with several Midas effects, such as a Leisure compressor and leveling amplifier, mid/sides Fair compressor, a 5-band Combinator compressor, modulation delay, Sub Octaver, and an Edison EX1 that enables simple manipulation of the stereo field. Finally, the MR18 includes Sound Maxer and a dimensional chorus effect, which can help you to restore natural sheen and clarity to the original audio signal. Whether you're recording in the studio, or you want to capture intimate live performances, it's never been easier to record professional-sounding tracks with clarity. -
- iPad / Android tablet-controlled, 18-input digital mixer for studio and live applications
- 16 high-quality MIDAS PRO microphone preamplifiers
- Built-in, tri-mode Wi-Fi router for direct operation—no need for external routers
- Dugan-style auto-mixing automatically manages microphone gain-sharing
- 18 x 18 channel, bidirectional USB 2.0 interface
- 4 digital signal-processing effects engines
- Rack ears and protection bumpers included for flexible rack and onstage applications
- 6 aux buses and main LR with inserts, full dynamics processing, and 6-band parametric or 31-band graphic EQ
- 6 XLR aux outputs and 2 XLR main outputs, plus a headphone connector
- 40-bit, floating-point digital signal processing
- Free iOS, Android, and Windows/Mac/Linux apps available for remote operation via Ethernet, LAN, or Wi-Fi
- MIDI in/out ports allow for controlling the mixer via MIDI equipment
- Future firmware updates, including new FX “plug-ins," downloadable free of charge
- Auto-ranging, universal-switch-mode power supply
- Limited 3-year warranty
UPC: 748252183446 In the Box Midas MR18 18-Input Digital Mixer for iPad/Android Tablets with Wi-Fi and USB Recorder Set of Rack Ears Protection Bumpers Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Midas MR18 18-Input Digital Mixer for iPad Android Tablets with Wi-Fi and USB Recorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Midas MR18 18-Input Digital Mixer for iPad Android Tablets with Wi-Fi and USB Recorder can be downloaded in PDF format at the link stated below.
Technical parametersMidas MR18 Specs | | | Channels | Number of Processing Channels: 18 input channels
Stereo FX Return Channels: 4
Aux Buses: 6
Main: 2 (L,R) | | Effects Engine | Internal Effects Engines: 4 true stereo | | Signal Processing | 40-bit floating point | | AD/DA Conversion | 24-bit @ 44.1 / 48 kHz, 115 dB dynamic range | | Latency | Analog I/O Latency: 0.8 ms | | | | Mic Inputs | Programmable Mic Preamps (Designed by Midas Pro): 16 XLR/TRS combo jacks, balanced | | Line Inputs | 2 x 1/4" / 6.35 mm TRS, balanced | | Main Outputs | 2 x XLR, balanced | | AUX Outputs | 6 x 1/4" / 6.35 mm TRS, balanced | | Headphone Out | 1 x 1/4" / 6.35 mm TRS, balanced | | MIDI | In: 5-pin DIN
Out: 5-pin DIN | | Ethernet | 1 x RJ45 | | USB Port | Type-B (Audio/MIDI Interface) | | | | Microphone Characteristics | Preamp Design: Midas Pro
THD + Noise: 0.005%, unweighted (noise, unity gain, 0 dBu, 1 kHz)
Phantom Power: 48 V (switchable per input)
EIN Noise: -125 dBu, 22 Hz - 22 kHz unweighted (at +60 dB gain, 150R source)
CMRR, XLR (1 kHz @ Unity Gain): Typically 65 dB
CMRR, XLR, (1 kHz @ +60 dB Gain): Typically 90 dB | | Input / Output | Frequency Range: 20 Hz - 20 kHz (at 48 kHz sample rate, +/- 0.5 dB)
Dynamic Range: 107 dB, 22 Hz - 22 kHz unweighted (analog in to analog out)
A/D Dynamic Range: 110 dB, 22 Hz - 22 kHz unweighted (preamp to converter)
D/A Dynamic Range: 111 dB, 22 Hz - 22 kHz unweighted (converter and output)
Cross Talk Rejection: 90 dB (at 1 kHz, adjacent channels)
Mic/Line 1-16 Input Impedance 10 kOhm (XLR jack, unbalance / balanced)
Non Clip Maximum Input Level: +23.5 dBu (XLR)
Hi-Z Input Impedance: 1 MOhm / 2 MOhm (TRS jack, unbalance / balanced)
Line Input 5-10 impedance: 20 kOhm / 40 kOhm (TRS jack, unbalance / balanced)
Non Clip Maximum Input Level: TRS +21 dBu | | Analog Output Characteristics | Output Impedance (XLR/TRS): 50 Ohms
Maximum Output Level (XLR/TRS): +21 dBu
Phones Output Impedance: 50 Ohms
Maximum Phones Output Level: +21 dBu
Noise at Unity Gain: -86 dBu, 22 Hz - 22 kHz unweighted (1 input assigned, XLR and TRS)
Noise when Muted (XLR and TRS): -90 dBu, 22 Hz - 22 kHz unweighted | | USB | USB Audio/MIDI Interface: USB 2.0, Type-B
Supported Operating Systems
Windows 7 or higher
Mac OS X 10.6.8 or higher
iOS 7 or higher (iPad)
Linux
Supported Sample Rates: 44.1 / 48 kHz
I/O
I/O audio channels 18 x 18
I/O MIDI channels 16 x 16 (1 port) | | | | WLAN | Antenna: External, SMA connector, 50 Ohms
Access Point (Number of Clients): 4 maximum
IEEE 802.11 b/g Standard: 2.4 GHz
Frequency Range: 2412-2462 MHz
WLAN Channels: 1-11 (Wi-Fi Client, Access Point)
Max Output Power: 19 dBm (802.11 b) / 18 dBm (802.11 g) | | | | Power | Power Supply: Switch-mode, Autorange 100-240 V, (50/60 Hz) Power Consumption: 30 W | | Temperature | 41 to 104°F / 5 to 40°C | | Dimensions | 13.1 x 5.9 x 5.8" / 332.7 x 149.9 x 147.3 mm | | Weight | 8.6 lb / 3.9 kg | | | | Package Weight | 9.6 lb | | Box Dimensions (LxWxH) | 15.0 x 8.4 x 7.7" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 60 owners. Add your rating and experience with the product.
