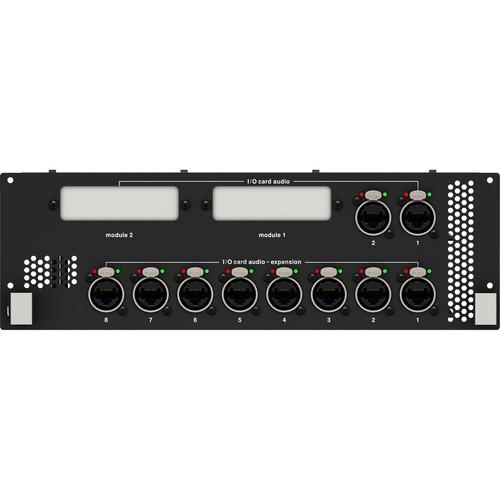

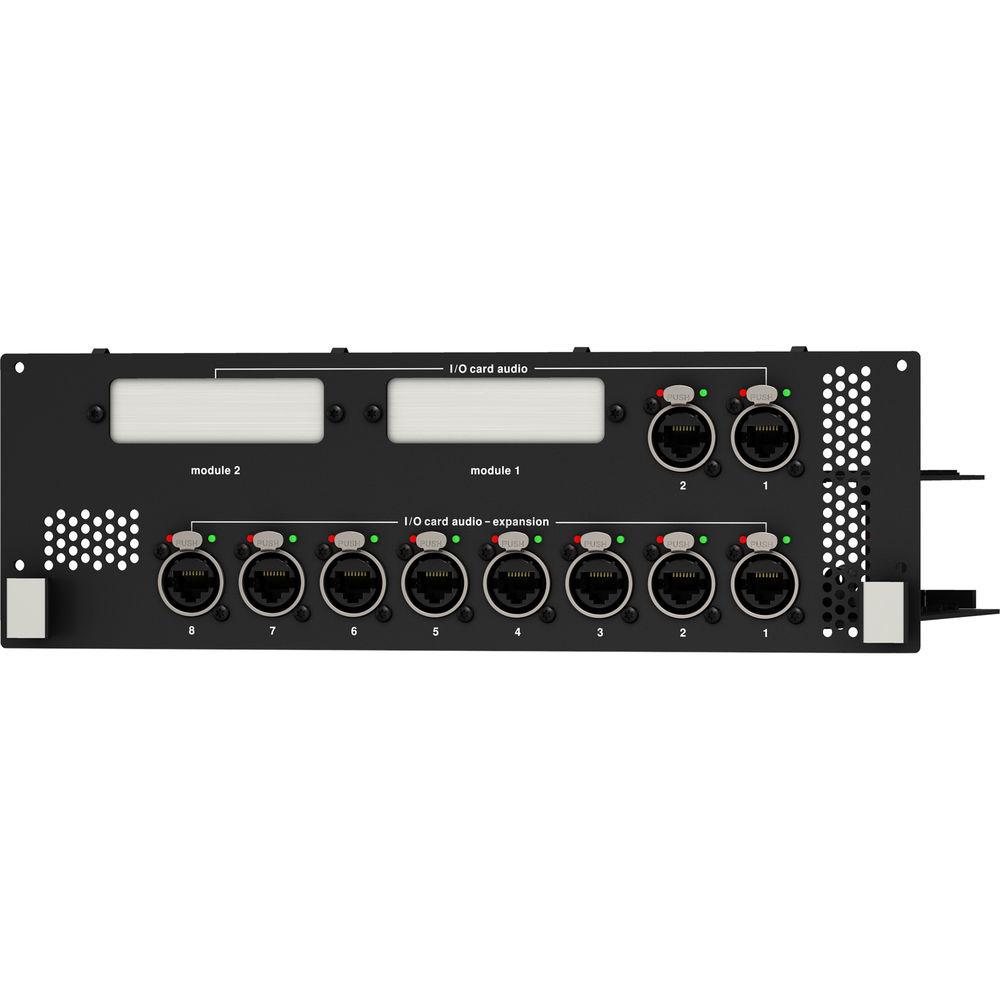

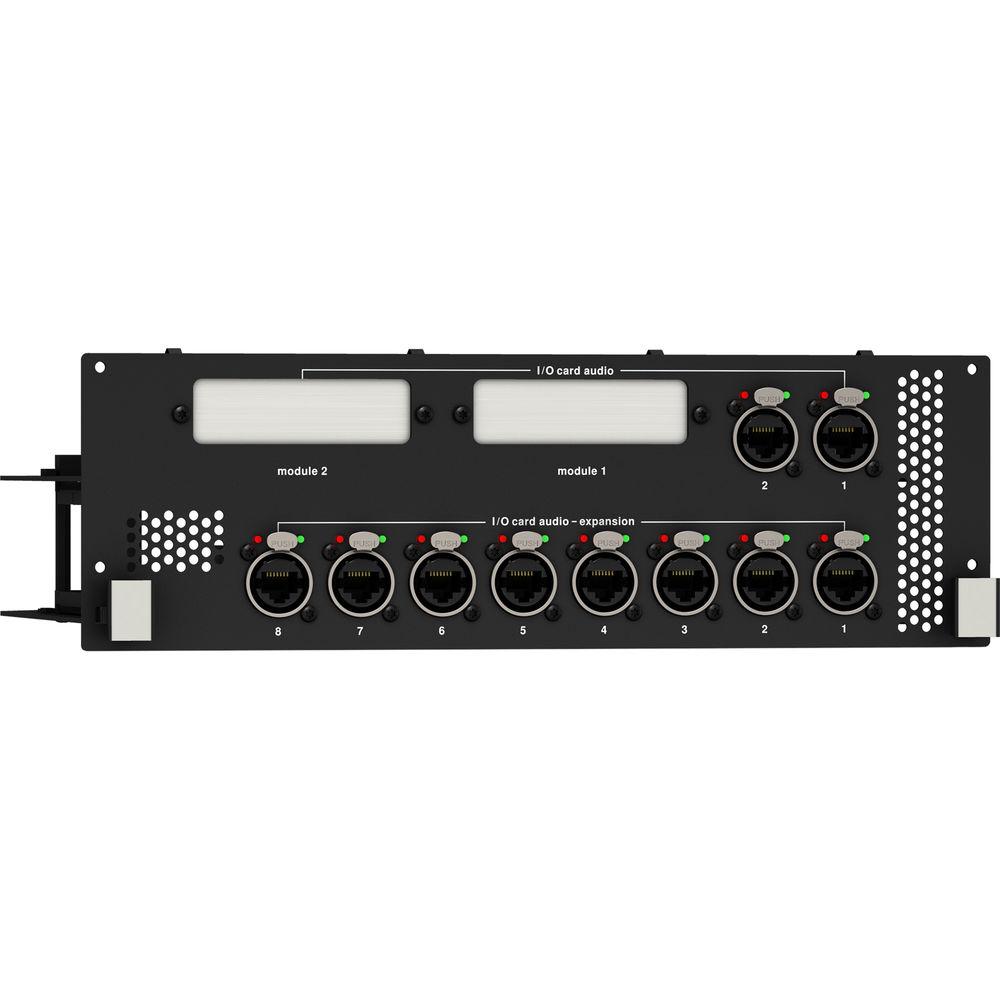

User Manual for Midas NEUTRON-NB Dual Network Bridge Expansion Module with 10 AES50 Ports Click to enlarge the picture
Contents of the user manual for the Midas NEUTRON-NB Dual Network Bridge Expansion
- Product category: Digital Mixer Accessories Midas
- Brand: Midas
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Midas Digital Mixer Accessories
 |
User manual for the Midas NEUTRON-NB Dual Network Bridge Expansion contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Midas product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Midas user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Midas product will considerably shorten its lifespan!
|
Product description The Midas NEUTRON-NB Dual Network Bridge Expansion Module is compatible with the Midas NEUTRON audio system engine and provides a multi-channel interface between two third-party digital audio networks and point-to-point interfaces. Each interface operates in a separate clock domain and is connected by a bidirectional asynchronous sample rate converter (ASRC).
Developed by Klark Teknik, this technology allows the interfacing of up to 64 bidirectional channels between the two independently clocked domains, which can also operate at different sample rates. The NEUTRON-NB features two Cirrus CM-1 format expansion slots, which are compatible with Klark Teknik KT-AES50, KT-DANTE64, KT-MADI, and KT-USB network modules. - General Features
-
- Dual network bridge expansion module provides conversion between multiple digital audio formats
- Compatible with Klark Teknik KT-AES50, KT-DANTE64, KT-MADI and KT-USB network modules
- Each network bridge port offers up to 64 bidirectional channels
- Bidirectional asynchronous sample rate conversion on every channel
- 10 AES50 port interface provides an additional 240 bidirectional channels
- 24-bit audio operation @ 96 kHz sample rate
- Features Neutrik etherCON AES50 network ports
- Asynchronous Sample Rate Converter
-
- The multi-channel bidirectional Asynchronous Sample Rate Converter (ASRC) allows the two third-party domains to function independently. This means that a clock failure or loss of synchronization in one domain will not affect the operation of the other
- In addition, the two third-party modules are clocked independently of the main Neutron-NB Module, again preventing a loss of synchronization in the module affecting the main unit's operation
- The modules will mute the audio streams when a loss of synchronization is detected
- Digital Audio Networking
-
- SuperMAC (AES50-Compliant) digital audio networking technology from KLARK TEKNIK simultaneously provides high channel counts, ultra-low and deterministic latencies, sample-synchronous and phase-aligned networked clock distribution, error detection and correction, network redundancy, and ease of deployment and use, to meet the demanding requirements of live concert touring
- 10 Port AES50 Interface
-
- NEUTRON-NB features a 10 port AES50 interface to provide an additional 240 bidirectional channels at a 96 kHz sample rate
- AES50 ports can be freely routed to provide further network expansion for the NEUTRON audio system engine
- Neutrik etherCON AES50 connectors are used to ensure durable and reliable connections
In the Box Midas NEUTRON-NB Dual Network Bridge Expansion Module with 10 AES50 Ports Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Midas NEUTRON-NB Dual Network Bridge Expansion Module with 10 AES50 Ports in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMidas NEUTRONNB Specs | Inputs and Outputs | 10 x AES50 etherCON ports, each providing 24 bidirectional channels of 24-bit, 96 kHz audio | | Expansion | 2 x CM-1 format modules, each providing up to 64 channels of bidirectional audio and asynchronous sample rate conversion | | Sample Rate | Selectable 48 or 96 kHz | | Channels | Up to 64 bidirectional per slot | | Ports | AES50: Neutrik etherCON with LED status indication | | Compatible with | Klark TeknikKT-AES50: AES50 Network Module with up to 48 Bidirectional Channels
KT-DANTE64: Audinate Dante Network Module with up to 64 Bidirectional Channels
KT-MADI: MADI Network Module with up to 64 Bidirectional Channels
KT-USB: USB 2.0 Network Module with up to 48 Bidirectional Channels | | Temperature | Operation: 41 to 113°F / 5 to 45°C
Storage: -4 to 140°F / -20 to 60°C | | Dimensions (H x W x D) | 3.8 x 11.9 x 12.0" / 96 x 303 x 306 mm | | Weight | 2.9 lb / 1.3 kg |
