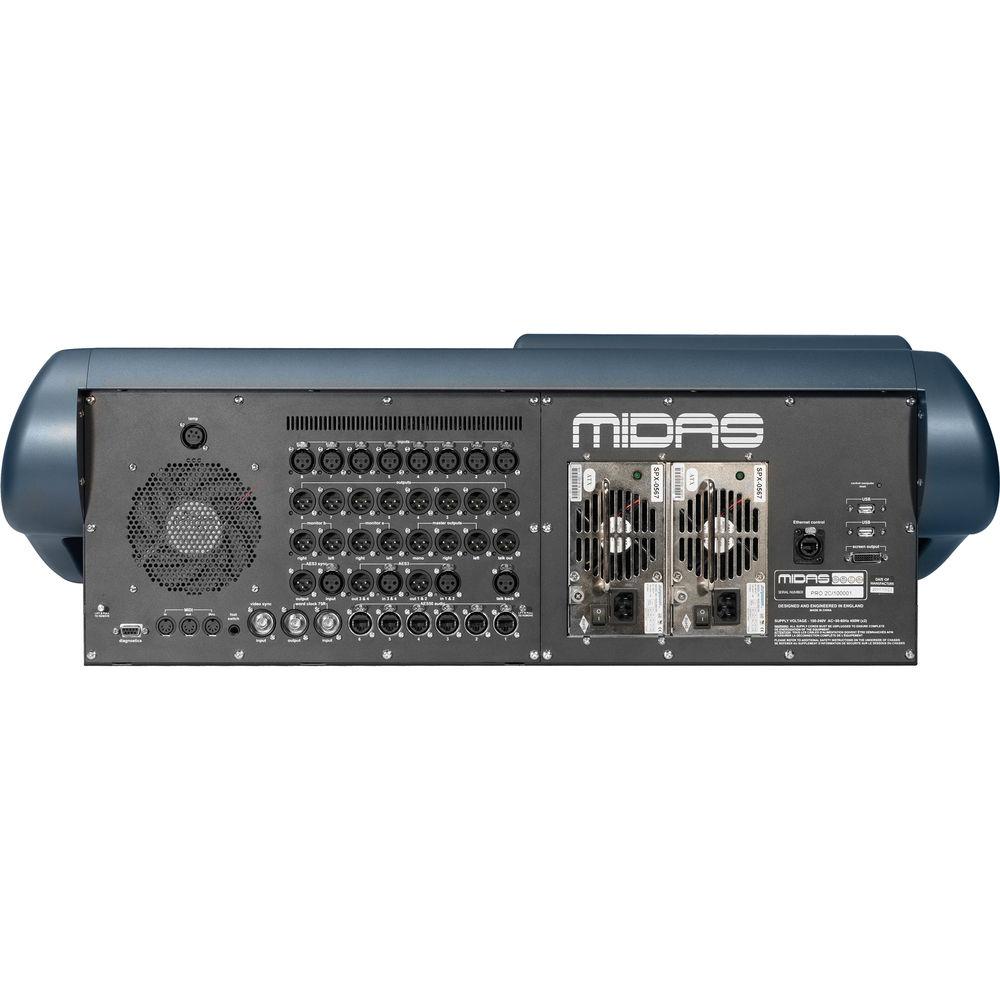

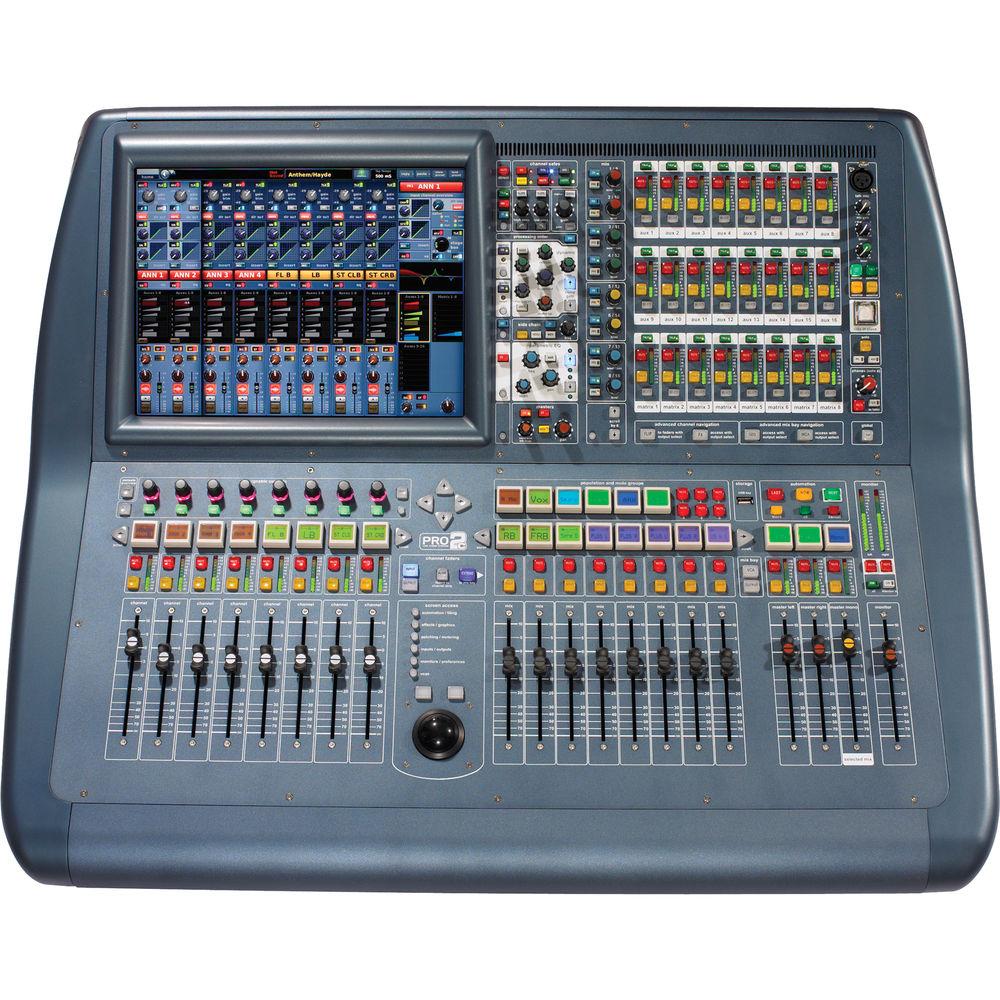

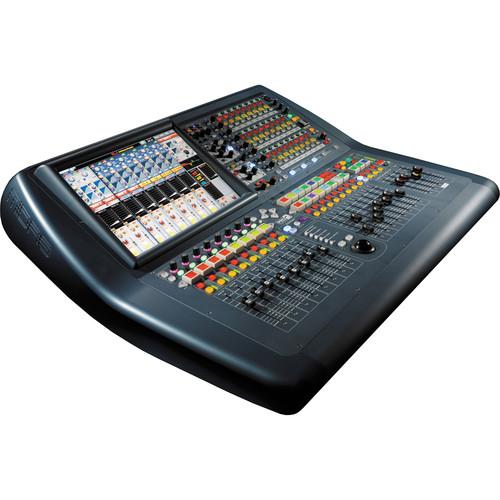

Product description The PRO2C/CC Control Center 64-Channel x 27-Bus Digital Audio Mixing System by Midas is for live sound reinforcement. It can be used in various environments for audio applications such as, live stage, broadcast TV, houses of worship, theater, and more. The PRO2C is designed to work in conjunction with the Midas digital I/O units. When connected to the Midas DL251 stage box (sold separately), an additional 48 Midas mic/line inputs, and 16 analog XLR outputs become available on stage, in addition to the PRO2C's 8 mic/line inputs and 16 XLR analog outputs on the back of the console itself. Two AES3 inputs, three AES3 outputs and dual-redundant power supplies, all supplied as standard, complete the hardware configuration. In addition to the PRO2C's 56 primary input channels, PRO2C also features 8 aux returns, all of which feature 4-band Midas parametric EQ and insert points. These 8 aux returns can be used as returns for the PRO2C's internal FX processors, or as additional mic channels, if sufficient mic inputs are available on the I/O hardware. The PRO2C's automation system can store and recall up to 1000 snapshot scenes. These contain the audio parameter values for every control on the console, as well as the network routing, configuration of the FX rack, and the format of the mixer itself, all of which is scene-specific. The PRO2C has a total of 64 input channels and has routing to 27 phase-coherent mix buses, which comprise 16 user-configurable buses (which can be mixes, subgroups or mix minus groups), and 8 matrix buses. The matrix buses source from inputs, as well as groups, and can be used as 8 additional auxes (monitor mix and FX sends) which provides a total of 24 mixes (plus L, R & Mono) for monitor mixing duties. All buses can be linked as stereo pairs (except the mono bus). The Midas digital console audio paths can be routed to multiple destinations and the console format can be reconfigured live on a scene-by-scene basis. In addition, the PRO2C console has MIDI input and outputs for control of external MIDI devices, or for recalling console events from an external MIDI source. All software versions, including stored shows on a USB stick, are both forward and backward compatible, i.e. a show created on one PRO2C can be loaded into another Midas console, regardless of the software version on either system. PRO2C show files are also compatible with all other Midas digital console systems. - The optional DL251 stage box (sold separately) is a 5U fixed-configuration I/O unit with 48 mic/line inputs and 16 mic/line outputs. It features analog connections and provides flexibility when connecting Midas modular I/O hardware
- 6 x 96 kHz AES50 ports, providing an additional 156 inputs and 166 outputs
- 8 integral mic/line inputs with Midas mic preamps
- A total of 64 simultaneous input processing channels
- 32 analog outputs including 16 on the stage box and 2 stereo local monitor outputs
- 27 sample-synchronous, phase-coherent mix buses
- Up to 12 multichannel FX engines which range from dual-stereo delay units, stereo modulation, and many diverse reverb FX, to multiband compression, dynamic EQ and multichannel dual-function dynamics processing
- Up to 28 Klark Teknik DN370 31-band graphic equalizers
- Full-color 15" daylight-viewable display screen
- 8 VCA (Variable Control Association) groups allow access to all the channel faders belonging to any of the VCA groups at the press of a switch
- 6 POPulation groups have assignable color coding and digital write-on buttons
- 96 kHz 40-bit floating-point processing throughout
UPC: 736211842671 In the Box Midas PRO2C/CC Control Center 64-Channel x 27-Bus Digital Audio Mixing System Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Midas PRO2C CC Control Center 64-Channel x 27-Bus Digital Audio Mixing System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMidas PRO2C Specs | Control Surface | 8 x XLR outputs
8 x XLR line outputs
4 x XLR monitor outputs
2 x XLR master outputs
2 x XLR AES3 stereo outputs
2 x XLR AES3 stereo inputs
1 x XLR talk output
1 x XLR talk input | | System Expansion | Multiple 3U Rack Configurable I/O Boxes (optional DL451 rack boxes) Can Be Connected That House 24 X I/O Slots In 8 X 8 Wide Blocks Of:
8 x XLR mic/line inputs or
8 x XLR line outputs or
8 x 1/4" (6.3 mm) line in and 8 x 1/4" (6.3 mm) line out
4 x (stereo) AES3 in and 4 x (stereo) AES3 out
Multiple 6U Rack Splitters (Optional DL431) House:
24 x splitter mic/line inputs
2 x 24 splitter outputs
1 x 24 transformer isolated splitter outputs | | Audio Processing | Input:
56 x dual slope high and low pass filters
56 x 4-band parametric EQs with 3 shelf modes
56 x 4-mode creative input compressors
56 x input gates | | Mixing Output | Audio Processing:
24 x output 6-band parametric EQs with shelf and multiple high and low pass modes
24 x 5-mode creative output dynamics
8 x assignable Klark Teknik output GEQs | | Assignable Audio Processing | 4 x assignable stereo effects (each of these can be reconfigured to generate 4 further GEQs, making a total of 24 available on the console) | | Mixing Control Assistance | 6 x auto-mutes
6 x surface POPulation groups
8 x VCA faders
8 x VCA associated POPulation groups
176 x MCA faders
176 x flipped MCA POPulation groups
1000-scene snapshot automation | | Resilience | N+1 cable redundancy and dual redundant PSUs | | | | Sampling Frequency | 96 kHz | | Latency Delay | <2 ms input to master (no compensation) | | Dynamic Range | 106 dB, 22 Hz to 22 kHz (no pre-emphasis) | | Maximum Voltage Gain | 80 dB inputs to subgroups and masters
86 dB inputs to aux and matrix | | Crosstalk | At 1 kHz: -100 dB physically adjacent input channels
At 10 kHz: -90 dB physically adjacent input channels | | Faders | Pan Cut Off At 1 kHz: -100 dB
Pan Cut Off At 10 kHz: -100 dB | | Display System | 1 x 15" (38 cm) daylight-viewable color screen | | LCD | Switch: 25 x RGB color | | Faders | Motorized: 20 x touch-sensitive
Fader Resolution: 1024 steps | | Encoders | 31 x touch-sensitive
Resolution: 512 steps | | Power Requirements | 100 to 240 VAC ±10%, 50 to 60 Hz | | Operating Temperature Range | 41 to 113°F (5 to 45°C) | | Storage Temperature Range | -4.0 to 140°F (-20° to 60°C) | | Dimensions (W x Depth) | 34.7 x 28.8" (88 x 73 cm) | | Weight | 82 lb (37 kg) | | | | Package Weight | 105.9 lb | | Box Dimensions (LxWxH) | 40.0 x 35.0 x 17.0" |
