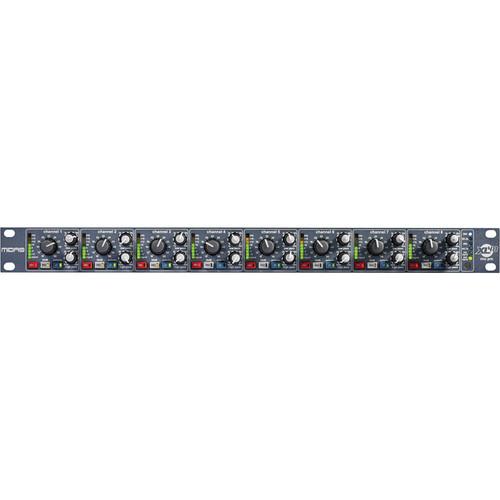

Product description The XL48 from Midas Is an eight-channel microphone preamp featuring the company's XL4 preamps, each with swept high- and low-pass filters, and eight super-low jitter XL8 analog-to-digital converters, all housed in a 19" single-space rack-mount chassis. Applications for the unit include portable recording rigs, analog and/or digital splits between consoles, or improving the input stage of other digital consoles with microphone preamps, converters, and a reference-grade clock.
The preamp provides analog and digital outputs, the latter in both ADAT and AES/EBU formats. A total of five outputs can be used simultaneously, making it a multifunctional analog/digital microphone splitter, as well as being able to add eight external channel sources to a mix. Multiple clocking options are available, including synching to external Wordclock. Additional features include 8-segment LED input meters, individual phantom power, polarity invert, and a -20 dB pad. All inputs are on Neutrik XLR connectors, and duplicated on a 25-pin D-Sub connector. - Eight microphone/line inputs featuring XL4 microphone preamps
- All-analog XL4 swept low- and high-pass filters
- Per-channel 48V phantom power switching
- Switchable -20 dB pad per channel
- Highly accurate, per-channel eight-segment LED meter
- Ultra-low-latency XL8 96 kHz 24-bit analog-to-digital converters
- Supports 44.1, 48, 88.2 and 96 kHz sampling rates
- Ultra-low-jitter, reference-grade one part-per-million (1 ppm) temperature-compensated clock oscillator with external Wordclock syncing options
- Fully-balanced, parallel XLR and 25-pin D-Sub input connections
- Fully-balanced, driven and buffered 25-pin D-Sub output connections
- Dual AES3 25-pin D-Sub output connector
- Dual TOSLINK ADAT optical output connectors
UPC: 794504547115 In the Box Midas XL48 - 8-Channel Microphone Preamp AC Power Cable Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Midas XL48 - 8-Channel Microphone Preamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMidas XL48 Specs | Connectors | 8 x XLR 3F
1 x 25-pin D-Sub Analog Input (8-channels)
1 x 25-pin D-Sub Analog Output (8-channels)
1 x 25-pin D-Sub AES Output (2 x 4 stereo channels)
2 x TOSLink ADAT optical Output (SMUX support up to 96 kHz)
2 x BNC Wordclock I/O | | Maximum Input Level | Microphone/Line: +11 dBu
Microphone/Line + Pad: +31 dBu | | CMR | Microphone (40 dB Gain): >80 dB
Microphone + Pad (40 dB Gain): >70 dB | | Noise | Microphone EIN @ 60 dB Gain: -128 dBu
Microphone EIN @ 40 dB Gain: -125 dBu
Output Noise @ Minimum Gain: -95 dBu | | Frequency Response | 20 Hz to 20 kHz, +0/-1.0 dB | | Distortion | Input to Output (0 dB): 0.03% @ 1 kHz | | Cross Talk | Channel to Channel: <-90 dB @ 1 kHz | | Maximum Output Level | 21 dBu (into 600Ω) | | Digital Output | Sampling Frequency: 44.1, 48, 88.2 and 96 kHz
Bit Rate: 24-bit only
Dynamic Range: >110 dB (20 Hz to 20 kHz) | | Power Requirements | 100~240VAC (+/-10%) 50/60 Hz
<25 W consumption | | Dimensions (H x W x D) | 19 x 12.8 x 1.75" (483 x 325 x 45 mm) | | Weight | 12.1 lb (5.5 kg) | | | | Package Weight | 15.0 lb | | Box Dimensions (LxWxH) | 22.4 x 16.9 x 4.9" |
