User Manual for Middle Atlantic 19" PowerCool Rackmount Power Distribution and Cooling Unit Click to enlarge the picture
Contents of the user manual for the Middle Atlantic 19" PowerCool Rackmount Power
- Product category: Power Distributors & Conditioners Middle Atlantic
- Brand: Middle Atlantic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Middle Atlantic Power Distributors & Conditioners
|
User manual for the Middle Atlantic 19" PowerCool Rackmount Power contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Middle Atlantic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Middle Atlantic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Middle Atlantic product will considerably shorten its lifespan!
|

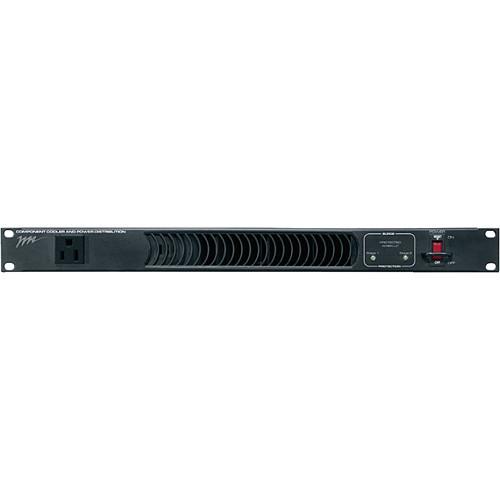

Product description The flat black 19" PowerCool Rackmount Power Distribution and Cooling Unit from Middle Atlantic features a front convenience outlet. Its blower exhausts 50 CFM while providing high static pressure to maintain airflow.This unit offers thermal sensing with proportional blower speed and two-stage surge protection with surge status notification. Its quiet operation and space-saving 1RU design make it suitable for both residential and commercial applications. - Blower exhausts 50 CFM while providing high static pressure to maintain airflow
- Quiet operation (29 dB) with space-saving design
- Thermal sensing with proportional blower speed
- Two-stage surge suppression protects against damage from power surges and spikes
- Provides notification when surge protection is compromised via local LEDs and dry contact
- Fan speed proportional to the temperature of the enclosure to extend fan life and reduce dust, and for maintenance
- Removable 10" temperature probe
- RoHS EU Directive 2002/95/EC, EIA/TIA, and cETLus compliant
UPC: 656747199080 In the Box Middle Atlantic 19" PowerCool Rackmount Power Distribution and Cooling Unit (1RU, Flat Black) Limited 3-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Middle Atlantic 19" PowerCool Rackmount Power Distribution and Cooling Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiddle Atlantic PDCOOL-1115R Specs | Capacity | 15 A | | Temperature | Active: 87.0°F (30.5°C)
Full Speed: 95°F (35°C)
Switch Off: 85.0°F (29.4°C) | | Maximum Sound Level | 29 dB | | Load | Maximum Peak: 15 A @ 120 VAC
Maximum Continuous: 12 A | | Outlet | Rear: 10
Rear Type: NEMA 5 to 15R | | Pressure Level | 0.031" H2O | | Power Input | Locking IEC C14 Inlet | | Cord | IEC: 6.00' (1.83 m) C13 5-15P SignalSAFE | | Input Voltage | 100 to 130 VAC / 60 Hz | | Dimensions (W x D x H) | 19.00 x 12.50 x 1.72" (482.60 x 317.50 x 43.68 mm) | | Weight | 11.00 lb (4.98 kg) | | | | Package Weight | 11.6 lb | | Box Dimensions (LxWxH) | 21.8 x 17.8 x 4.8" |
