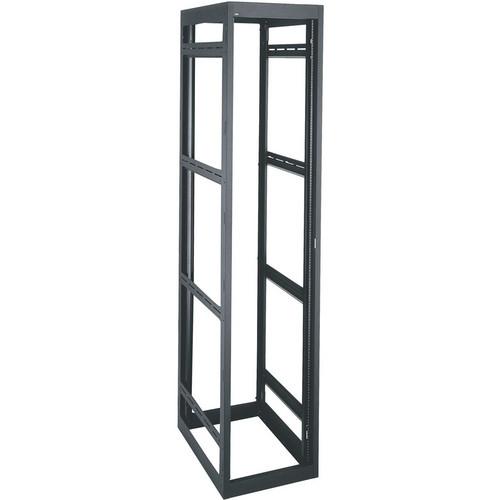

User Manual for Middle Atlantic 19" Video Rack Enclosure Click to enlarge the picture
Contents of the user manual for the Middle Atlantic 19" Video Rack Enclosure
- Product category: Rack Furniture Middle Atlantic
- Brand: Middle Atlantic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Middle Atlantic Rack Furniture
|
User manual for the Middle Atlantic 19" Video Rack Enclosure contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Middle Atlantic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Middle Atlantic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Middle Atlantic product will considerably shorten its lifespan!
|
Product description The Middle-Atlantic 19" Video Rack Enclosure features a welded construction and a static load capacity of 10000 lb (4536kg), UL listed load capacity of 2500 lb (1134kg), and Seismic certified load capacity of 640 lb (290.3kg). It offers 36” depth with 54 useable spaces of racking height and a 22” (55.88cm) broadcast width.
Featuring 14-gauge steel tops and bottoms and 16-gauge seamless steel sides, the 19” Video Rack Enclosure supports 0.5" (1.27cm), 0.75" (1.91cm), 1" (2.54cm) and 1.5" (3.81cm) electrical knockouts and comes with UHF/VHF antenna knockouts. It offers 2 pairs of threaded 10-32 “Z-RAIL” and the 1/8” thick laser-cut steel braces provide strength and support to the enclosure.
Sporting a textured black powder coat finish, the 19” Video Rack Enclosure features a keylocked solid rear door, and an open top provides you with a number of top options. - Features a welded construction with static load capacity 10000 lb (4536kg), UL listed load capacity 2500 lb (1134kg) and Seismic certified load capacity 640 lb (290.3kg)
- Offers 36" depth with 54 useable spaces of racking height and a 22" (55.88cm) broadcast width
- Featuring 14-gauge steel tops and bottoms and 16-gauge seamless steel sides
- Supports 0.5" (1.27cm), 0.75" (1.91cm), 1" (2.54cm) and 1.5" (3.81cm) electrical knockouts
- Comes with UHF/VHF antenna knockouts
- Offers 2 pairs of threaded 10-32 "Z-RAIL" and the 1/8" thick laser-cut steel braces provide strength and support to the enclosure
- Sports a textured black powder coat finish
- Keylocked solid rear door
- Open top provides you with a number of top options
- Grounding and bonding stud installed at the base
UPC: 656747123856 In the Box Middle Atlantic 19" Video Rack Enclosure Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Middle Atlantic 19" Video Rack Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiddle Atlantic VMRK-54-36LRD Specs | Capacity | Static load capacity: 10000 lb (4536 kg) UL Listed load capacity: 2500 lb (1134 kg) Seismic Certified load capacity: 640 lb (290.29 kg) | | Construction | Welded | | Depth | 36" (91.44 cm) | | Broadcast Width | 22" (55.88cm) | | Useable Spaces | 54 | | Threaded Rails | 10-32 "Z-RAIL" | | Finish | Textured black powder coat finish | | | | Package Weight | 352.0 lb | | Box Dimensions (LxWxH) | 104.0 x 42.0 x 28.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 15 owners. Add your rating and experience with the product.
