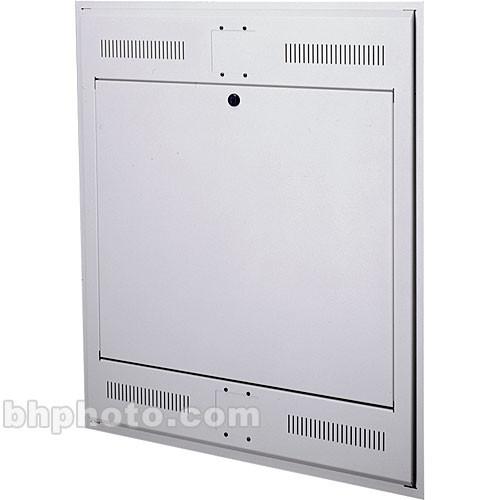

User Manual for Middle Atlantic 3U Tilt-Out Wall Rack 20"D Flush Mount Click to enlarge the picture
Contents of the user manual for the Middle Atlantic 3U Tilt-Out Wall Rack
- Product category: Rack Furniture Middle Atlantic
- Brand: Middle Atlantic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Middle Atlantic Rack Furniture
|
User manual for the Middle Atlantic 3U Tilt-Out Wall Rack contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Middle Atlantic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Middle Atlantic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Middle Atlantic product will considerably shorten its lifespan!
|
Product description Middle Atlantic's 3U Tilt-Out 20"D Wall Rack with Flush Mount (Putty) makes an optimal low-profile wall storage for engineering, security, or announcement equipment controls. This lockable, inconspicuous cabinet offers a 5.25" (3U) racking height and a 20" maximum usable depth. A simple installation is all it takes and you're ready to tuck away any mid-size high-value security or operation devices, with ease. This model has a 18-Degree tilt-out operating position and a 105-Degree service opening position, and this rack includes a 3-space rackrail on the inner wall, which makes it easier to use with rackmount equipment. The outside structure measures approximately 25 x 30 x 6" (WxHxD). Utilizing 18-AWG gauge steel, the tilt rack has a 100 lbs weight capacity. It includes a 4 x 4" electrical box for high-voltage connections and an 8.5 x 8.5" knockout for cable pass through. It is finished in a putty varnish, and is UL listed in the US and Canada. This rack system gives electronic systems the pivotal treatment for which they were designed. Middle-Atlantic holds nothing back in convenience, utility, and ingenuity of design. The best device protection is right here. - Low Profile Design
- To have your key control devices at your fingertips, this low profile design is the ideal storage unit, and can be installed virtually anywhere you need it.
- Two-Position Design
- Simply pull out this tilt-out rack to its 18-Degree service position for quick operation or pull it out to 105 Degrees for servicing. It's that easy, because it should be.
- True Security in Insecure Environments
- This model comes with a tough lock that will keep your control equipment safe and secure.
UPC: 656747060724 In the Box Middle Atlantic 3U Tilt-Out Wall Rack 20"D Flush Mount (Putty) 2 x Rackrails Tilt-Out Door Assembly Hardware Kit Lock and Key Lifetime Warranty to Original Purchaser Table of Contents
|
Upload User Manual
Have you got an user manual for the Middle Atlantic 3U Tilt-Out Wall Rack 20"D Flush Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiddle Atlantic TOR-3-20RP Specs | Material | Steel | | Type of Closure | Flush Mount, Lockable Closure | | Interior Dimensions | 5.25 x 20" (WxD) | | Shock Absorbent | N/A | | Rails | 3U rail space | | Accommodates | 20" Equipment | | Carrying/Transport Options | None | | Weight | Not Specified by Manufacturer | | | | Package Weight | 50.0 lb | | Box Dimensions (LxWxH) | 34.0 x 29.0 x 10.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 97 owners. Add your rating and experience with the product.
