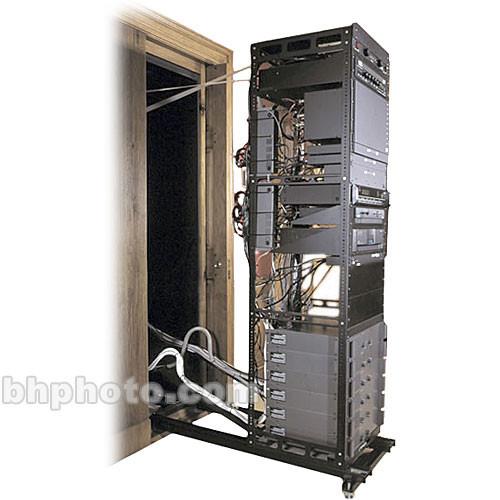

User Manual for Middle Atlantic AXS System for Millwork and In-Wall AXS-30 Click to enlarge the picture
Contents of the user manual for the Middle Atlantic AXS System for Millwork
- Product category: Rack Furniture Middle Atlantic
- Brand: Middle Atlantic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Middle Atlantic Rack Furniture
|
User manual for the Middle Atlantic AXS System for Millwork contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Middle Atlantic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Middle Atlantic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Middle Atlantic product will considerably shorten its lifespan!
|
Product description This Middle Atlantic AXS System for Millwork and In-Wall AXS-30 is a versatile, high-capacity rack that offers unrestricted rear access to equipment and cabling. Rack mounts on cable tracks and service stand (not included) to create a pull-out frame (48" length extension) that reduces time and labor. The extension can be disconnected for storage. This rack is ideal for flush, in-wall mounting or with the use of custom molding or panels to conceal rack when not being used.
All steel construction and mechanically interlocking corners guarantee exceptional strength and years of use. This construction, with heavy-duty, 13-gauge steel top and bottom panels, supports up to 650 lb. of distributed equipment with a total rack capacity of 30U. And a durable, black, powder-coat finish offers a clean aesthetic look perfect for any work environment.
Front and rear, fixed-position, 11-gauge threaded, 10-32 rack rails come standard with this model. Its ventilated top accepts up to two fans to ensure proper cooling of equipment. Choose from a wide array of accessory parts to customize and expand your system to meet all your needs: cable management trays, brush gaskets to fill unsightly gaps between the rack and custom millwork, and utility shelves, among many more practical add-ons. - Solid Construction
- All-steel construction and mechanically locking corners guarantee exceptional strength and years of use.
- Mobility
- Rack mounts on pull-out frame with 48" extension to gain quick, unrestricted access to equipment.
- No-Clog, Rack-Rail Threads
- All rack rails finished in durable "e-coat" to prevent clogged threads.
- Industry-Standard Design
- Rackrail is labeled in EIA standard rackspace increments allowing for easy equipment alignment.
- Customization
- Pick and choose from Middle Atlantic's wide range of accessories to customize and expand your rack system.
- Pre-Installed Washers
- Pre-installed washers on all 10-32 threaded rackscrews save installation time.
- Grounding/Bonding Studs
- Grounding/Bonding Studs have been provided to help you electrically ground and bond equipment, per NEBS and NEC standards.
- Free Layout & Specification Software
- RackTools free layout and specification software included for effective system design help.
UPC: 656747002281 In the Box Middle Atlantic AXS System for Millwork and In-Wall AXS-30 Rack Frame 2 x Triple-Hinged, Cable Carriers Top Panel Bottom Panel Internal System Base Top Restraining Leash Assembly Hardware Kit Limited Lifetime Warranty to Original Purchaser *NOT INCLUDED - Service Tracks and Service Stand Required for Installing and Using Table of Contents
|
Upload User Manual
Have you got an user manual for the Middle Atlantic AXS System for Millwork and In-Wall AXS-30 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiddle Atlantic AXS-30 Specs | Construction | Steel
Mechanically Interlocking Corners | | Finish | Black, powder-coat finish | | Shelf | None | | Cabinet | Accepts 19" Equipment (Width)
Depth 20"
Capacity 52-1/2" (30U) | | Mobility | Designed for Use As Pull-Out Rack Frame with 48" extension
Telescoping tracks and service stand disconnect for storage
Ball bearings ensure smooth roll out
Rack can be mounted 3" to 40" off floor
*Required Service Tracks and Service Stand Sold Separately | | Dimensions (WxHxD) | 19-1/4 x 57-3/16 x 22-1/2" (Minimum Millwork Rough Opening Dimensions)
*Add additional 3/8" to Millwork dimensions when using optional gasket | | Weight Capacity | 650 lb. with proper weight distribution | | Weight | not specified by manufacturer |
