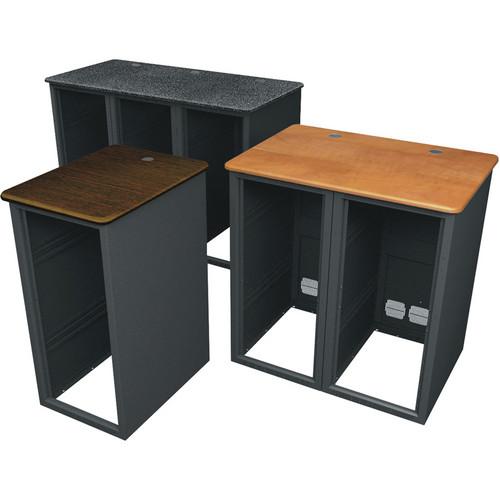

User Manual for Middle Atlantic BGR-4127LRD Multi-Bay Rack Click to enlarge the picture
Contents of the user manual for the Middle Atlantic BGR-4127LRD Multi-Bay Rack
- Product category: Rack Furniture Middle Atlantic
- Brand: Middle Atlantic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Middle Atlantic Rack Furniture
|
User manual for the Middle Atlantic BGR-4127LRD Multi-Bay Rack contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Middle Atlantic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Middle Atlantic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Middle Atlantic product will considerably shorten its lifespan!
|
Product description The Middle Atlantic BGR-4127LRD Multi-Bay Rack belongs to the BGR-SA floor-standing rack and enclosure series. This rack has good weight capacity and provides more useable rackspace. It features the LeverLock system for tool-free installation of cable management accessories. This standalone rack includes fixed-vented side panels. - Structural
-
- Improved design provides more useable rack height
- Accepts patent-pending LeverLock system accessories for fast and flexible cable management, and mounting of small devices such as interface boxes, power supplies, and relay modules
- Unique new extender bay adds 3" (7.62 cm) of useable depth to the front or rear of the enclosure at any time. Extender bays allow the use of existing doors and can even be stacked for greater depth
- Standard front and rear adjustable wide, heavy-gauge, 10 to 32 threaded rackrail with numbered rackspace increments speeds equipment mounting
- Wide and open bottom offers multiple base options
- Durable, black-textured, powder coat finish
- Thermal Management
-
- Top options include solid, vented, and thermostatically controlled fan tops
- Standard vented door accepts optional doors
- LeverLock System
- The LeverLock internal management system facilitates cable management and device mounting within the rack interior through the use of unique tool free cable management bars and vertical accessory mounting plates. The LeverLock system consists of 2 types of accessories based on mounting orientation: vertical and horizontal. All styles install without tools or hardware
- BFD-41 Solid Front Door
-
- Fits 41 space BGR series racks
- Black finish
- Side Panels Pair
- Black finish
Fits BGR-4127 Unit (For BSPN-41-27 Side Panels Pair ) - BPFD-41 Plexi Front Door
-
- Fits 41 space BGR series racks
- Black finish
- BVFD-41 Vented Front Door
-
- Fits 41 space BGR series racks
- Black finish
- PFD-41A Curved Plexi Front Door
-
- Fits 41 space BGR series racks
- Black finish
- VFD-41A Curved Vented Front Door
-
- Fits 41 space BGR series racks
- Black finish
- BGR-RDC41 Cable Entry Rear Door
-
- Fits 41 space BGR series racks
- Black finish
- CBS-BGR Skirted Wheelbase
-
- Skirted Wheelbase
- Fits BGR
- Includes casters (comes in WitB)
- HP 100 PC 10-32 PHILLIPS Screws w/ washers
-
- Salt spray resistant
- Black gloss finish
- PDT-2X1015 Power Outlet
-
- Long 20 outlets
- Configurable single or dual 15 A circuit thin power strip with j-box
- Strip is hardwired
- PDT-1620C-NS Power Outlet
-
- 16 outlets
- Single 20 A circuit thin power strip with 9' (2.74 m) cord
- Fits racks that accept 'e' power
- Does not include surge protection
UPC: 656747140235 In the Box Middle Atlantic BGR-4127LRD Multi-Bay Rack 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Middle Atlantic BGR-4127LRD Multi-Bay Rack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiddle Atlantic BGR-4127LRD Specs | Rack Spaces | Of BFD-41 Solid Front Door, BPFD-41 Plexi Front Door, BVFD-41 Vented Front Door, PFD-41A Curved Plexi Front Door, VFD-41A Curved Vented Front Door, BGR-RDC41 Cable Entry Rear Door, BSPN-41-27 Side Panels Pair: 41 | | Wheelbase | Skirted (CBS-BGR Skirted Wheelbase) | | Power Outlets | PDT-2X1015: 20
PDT-1620C-NS: 16 | | Power | Strip: PDT-2X1015: 15 A
PDT-1620C-NS: 20 A | | OD Length | PDT-2X1015: 72.75" (184.78 cm)
PDT-1620C-NS: 33.5" (85.09 cm) | | Circuit | PDT-2X1015: 15 A
PDT-1620C-NS: 20 A PDT-2X1015:1 or 2 configurable
PDT-1620C-NS: noteUL standard #1363 Relocatable power taps | | Termination | PDT-2X1015: J-Box
PDT-1620C-NS: 9' (22.86 cm) cord w/NEMA 5-20p plug | | J-Box/Cord Location | PDT-2X1015: Bottom
PDT-1620C-NS: Bottom | | NRTL Listed | PDT-2X1015: 2
PDT-1620C-NS: 1 UL standard #5 Multi Outlet Assemblies | | Isolated Ground | PDT-2X1015: Field configurable
PDT-1620C-NS: No | | Screw Type | HP 100 PC 10-32 Phillips screws with washers
Quantity: 100 in a poly bag
Head: Truss-head
Length: 0.75" (1.90 cm) | | | | Regulatory Certifications | GREENGUARD indoor air quality certified for children and schools
Seismic certified to the following codes and standards: 2007 & 2010 CBC; 2006, 2009 & 2012 IBC; ASCE 7-05 (2005 Edition) & ASCE 7-10 (2010 Edition) and the 2006 & 2009 editions of NFPA 5000 for use in areas of high seismicity - Zone 4 or Seismic Design Category (SDC) "D". These are designed for mission critical and/or high-importance installations in locations with the highest level of seismicity and top floor or rooftop installations including those within UBC and CBC Essential facilities or IBC, ASCE 7, and NFPA 5000 Seismic Use Group III facilities. For all codes, the Importance factor (Ip) is 1.5. Seismic Certified load capacity of 1,175 lb (33.31 kg) when used with BGR-Z4 or BGR-ISO-Z4 seismic floor anchor brackets. | | Compatible | LeverLock
Vertical Angle: LL-VA17
Vertical Channel: LL-VC17
Horizontal Round: LL-HR21
Horizontal Channel: LL-HC21
Horizontal Angle: LL-HA21 vertical 10" (25.4 cm) plate | | Racking Height | 71.75" (180.90 cm) | | Overall Height | 75.87" (192.72 cm) | | Usable Depth | 24.37" (61.89 cm) | | Overall Depth | 27" (68.58 cm) | | Overall Dimensions | 75.87 x 23 x 27" (192.72 x 58.42 x 68.58 cm) | | Load Capacity | Static: 12,000 lb (340.19 kg) | | | | Package Weight | 127.0 lb | | Box Dimensions (LxWxH) | 81.0 x 30.0 x 26.0" |
