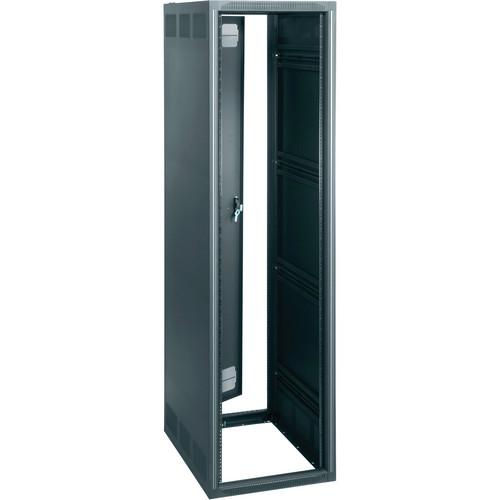

Middle Atlantic BGR-45SA-27LRD Stand-Alone Rack Enclosure

Search your instruction manual in PDF to download

User Manual for Middle Atlantic BGR-45SA-27LRD Stand-Alone Rack Enclosure

Click to enlarge the picture
Middle Atlantic BGR-45SA-27LRD Stand-Alone Rack Enclosure Contents of the user manual for the Middle Atlantic BGR-45SA-27LRD Stand-Alone Rack Enclosure
  • Product category: Rack Furniture Middle Atlantic
  • Brand: Middle Atlantic
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Middle Atlantic Rack Furniture

User manual for the Middle Atlantic BGR-45SA-27LRD Stand-Alone Rack Enclosure contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Middle Atlantic product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Middle Atlantic user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Middle Atlantic product will considerably shorten its lifespan!



Product description

The Middle Atlantic BGR-45SA-27LRD Stand-Alone Rack Enclosure has higher weight capacities and provides more useable rackspace. This enclosure features a revolutionary patent-pending LeverLock system that aids in tool free installation of cable management accessories. Furthermore, this stand-alone version includes fixed vented side panels.

Structural Features

  • Breakthrough design provides more useable rack height
  • Accepts patent-pending LeverLock system accessories for fast, flexible cable management and mounting of small devices such as interface boxes, power supplies, and relay modules
  • Unique new extender bay adds 3" (7.62 cm) of useable depth to the front or rear of the enclosure at any time
  • Extender bays allow the use of existing doors and can even be stacked for greater depth
  • Standard front and rear adjustable wide, heavy-gauge, 10-32 threaded rackrail with numbered rackspace increments speeds equipment mounting
  • Pre-threaded ganging holes allow for rack joining after loading
  • Rackrail depth indicators
  • Wide open bottom accepts multiple base options
  • Finished in a durable black textured powder coat

Thermal Management

  • Top option include solid, vented, and thermostatically controlled fan tops
  • Standard vented door accepts optional doors

Cable Management

  • Accepts LeverLock system: tool free cable management accessories
  • Cable entry choices include laser knockouts and choice of trade openings and/or grommetted pass-through
  • 21" (53.34 cm) wide top opening provides for full-width cable and conduit entry, and includes vertical cable entry tie points on both sides
  • 0.5" (1.27 cm), 0.75" (1.91 cm), 1" (2.54 cm), and 1.5" (3.81 cm) electrical knockouts and 0.63" (1.59 cm) and 0.5" (1.27 cm) D UHF/VHF antennae knockouts on rear top & bottom, easily removable for cable pass-through
  • Top cable management plate (38 space and up) includes 0.5" (1.27 cm), 0.75" (1.91 cm), 1" (2.54 cm), 1.5" (3.81 cm), and 3" (7.62 cm) electrical knockouts, and 0.63" (1.59 cm) and 0.5" (1.27 cm) D UHF/VHF antennae knockouts
  • 2-pair of 11-gauge, 10-32 threaded rackrail with numbered rackspace increments
  • Optional brush grommet rear door kit can be mounted at the top or bottom to provide a large cable passage with easy access to the cables without fishing
  • Optional stackable 3" (7.62 cm) extender bay available for front and rear
  • Optional curved and beveled front doors in solid, vented and plexi glass styles
  • Attractive interior bevels
  • Configurable open top with vertical cable management entry points

Regulatory / Certifications

  • Static load capacity: 12,000 lb (5,443 kg)
  • UL Listed in the US and Canada
  • UL Listed load capacity: 3,000 lb (1,360.78 kg)
  • Seismic certified to the following codes and standards: 2007/2010 CBC, 2006, 2009/2012 IBC, ASCE 7-05 (2005 edition)/ASCE 7-10 (2010 edition), and the 2006/2009 editions of NFPA 5000 for use in areas of high seismicity (Zone 4 or Seismic Design Category (SDC) "D")
  • Designed for mission critical and/or high-importance installations in locations with the highest level of seismicity and top floor or rooftop installations including those within UBC and CBC
  • Essential facilities or IBC, ASCE 7, and NFPA 5000 Seismic Use Group III
  • Importance factor (IP) is 1.5
  • Seismic Certified load capacity of 1,175 lb (532.97 kg) when used with BGR-Z4 or BGR-ISO-Z4 seismic floor anchor brackets
  • GREENGUARD indoor air quality certified for children and schools
UPC: 656747139994 In the Box Middle Atlantic BGR-45SA-27LRD Stand-Alone Rack Enclosure
  • Limited Lifetime Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Middle Atlantic BGR-45SA-27LRD Stand-Alone Rack Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Middle Atlantic BGR-45SA-27LRD Specs

    Rack Rails Steel rack rail with tapped 10-32 mounting holes
    Bracket 100" (254 cm)
    Ganging Holes 5/16"-18
    Mounting Thread 1/4-20
    Rack Spaces 45
    Certifications Static load capacity: 12,000 lb (5,443 kg)
    UL Listed in the US and Canada
    UL Listed load capacity: 3,000 lb (1,360.78 kg)
    Seismic certified to the following codes and standards: 2007/2010 CBC, 2006, 2009/2012 IBC, ASCE 7-05 (2005 edition)/ASCE 7-10 (2010 edition), and the 2006/2009 editions of NFPA 5000 for use in areas of high seismicity (Zone 4 or Seismic Design Category (SDC) “D”)
    Designed for mission critical and/or high-importance installations in locations with the highest level of seismicity and top floor or rooftop installations including those within UBC and CBC
    Essential facilities or IBC, ASCE 7, and NFPA 5000 Seismic Use Group III
    Importance factor (IP) is 1.5
    Seismic Certified load capacity of 1,175 lb (532.97 kg) when used with BGR-Z4 or BGR-ISO-Z4 seismic floor anchor brackets
    GREENGUARD indoor air quality certified for children and schools
    Height Overall: 82.88" (210.52 cm)
    Useable: 78.88" (200.36 cm)
    Depth Overall: 27" (68.58 cm)
    Useable: 24.4" (61.98 cm)
    Package Weight 177.0 lb
    Box Dimensions (LxWxH) 88.0 x 30.0 x 26.0"
