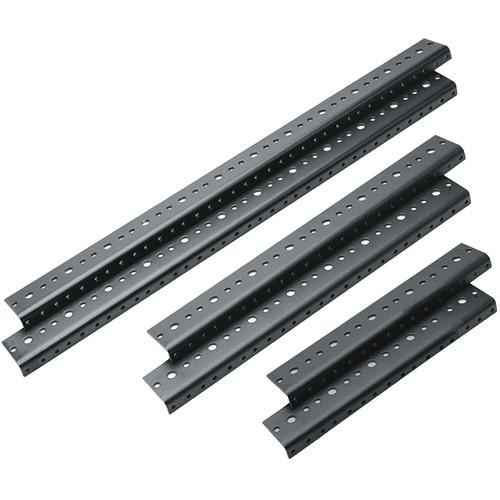

User Manual for Middle Atlantic BGR-RR41 Rail Rack Kit Click to enlarge the picture
Contents of the user manual for the Middle Atlantic BGR-RR41 Rail Rack Kit
- Product category: Rack Rails Middle Atlantic
- Brand: Middle Atlantic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Middle Atlantic Rack Rails
|
User manual for the Middle Atlantic BGR-RR41 Rail Rack Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Middle Atlantic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Middle Atlantic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Middle Atlantic product will considerably shorten its lifespan!
|
Product description The Middle Atlantic BGR-RR41 Rail Rack Kit is a next-generation, gangable enclosure that is designed with significant installation and performance benefits. This kit is equipped with 2 pairs of fully adjustable steel rack rail with tapped 10 to 32 mounting holes in universal EIA spacing, black e-coat finish and numbered rack spaces. - Provides ample rackspace despite being compact
- Accepts patent-pending LeverLock tool-free and hardware-free internal devices and cable management system accessories
- Pre-threaded ganging holes allow for rack joining after loading
- Marked rack rail depth indicators included
- Electrical and DUHF/VHF antennae knockouts on rear top and bottom, easily removable for cable pass-through
- Top cable management plate includes electrical and DUHF/VHF antennae knockouts (23" (584.2mm) OD width, multiple depths)
- Two pairs of 11-gauge, 10 to 32-threaded rack rail with numbered rackspace increments
- Optional stackable 3" (76.2mm) extender bay available at the front and rear
- Optional curved and beveled front doors in solid, vented, and plexiglass styles
- Attractive interior bevels
- Grounding and bonding studs are 1/4 to 20 threaded, installed at the base of the enclosure
- Configurable open top with vertical cable management entry points
- Top and bottom of the rack features vertical slotted vent pattern for ventilation
- Vented locking and latching rear door, which is capable of accepting up to six 4.5" (114.3mm) fans
- Durable, black-textured, powder-coat finish
- GREENGUARD Indoor Air Quality certified for children and schools (environment friendly)
- RoHS EU Directive 2002 / 95 / EC compliant
- Manufactured by an ISO 9001 and ISO 14001 registered company
- Seismic certified (when used with BGR-Z4 or BGR-ISO-Z4 option) with an Ip value of 1.5
- UL listed in the US and Canada
UPC: 656747147654 In the Box Middle Atlantic BGR-RR41 Rail Rack Kit Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Middle Atlantic BGR-RR41 Rail Rack Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiddle Atlantic BGR-RR41 Specs | Rack Space | 41 RU | | Construction | 100" (2540 mm)thick, fully welded steel along rack rail brackets
310" (7874 mm)thick steel at corners | | Usable Height | 71.88" (1,825.75 mm) | | Usable Depth | 24.4" (620 mm) | | Knockouts | Electrical:
0.5" (12.7 mm)
0.75" (19.05 mm)
1" (25.4 mm)
1 to 0.5" (25.4 to 12.7 mm)
3" (76.2 mm)
1 to 1/2" (25.4 to 12.7 mm) for top cable management plate
DUHF/VHF Antennae:
0.5" (12.7 mm)
0.625" (15.88 mm)
0.625" (15.88 mm)and 0.5" (12.7 mm) on rear top and bottom | | Ganging Holes | Pre-threaded 5/16"-18 ganging holes | | Mounts on Studs | Grounding and Bonding: 1/4-20 threaded installed in the top and the bottom | | Load Capacity | Static Capacity: 12,000 lb (5,443.10 kg)
UL-listed Load Capacity: 3,000 lb (1,360.77 kg)
Seismic-Certified Capacity: 1,175 lb (3,592 kg) | | Certifications | 1997 UBC; 2001, 2007, & 2010 CBC; 2000, 2003, 2006, & 2009 IBC; ASCE 7-02, ASCE 7-05, ASCE 7-10, and the 2003, 2006, & 2009 editions of NFPA 5000 | | Dimensions (H x W x D) | 71.88 x 23 x 24.4" (1,825.75 x 584.2 x 619.76 mm) | | | | Package Weight | 14.2 lb | | Box Dimensions (LxWxH) | 72.0 x 4.0 x 2.0" |
