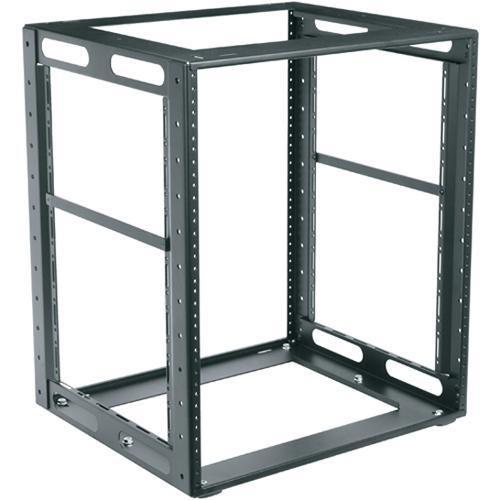

User Manual for Middle Atlantic CFR-11-16 Cabinet Frame Rack Click to enlarge the picture
Contents of the user manual for the Middle Atlantic CFR-11-16 Cabinet Frame Rack
- Product category: Rack Furniture Middle Atlantic
- Brand: Middle Atlantic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Middle Atlantic Rack Furniture
|
User manual for the Middle Atlantic CFR-11-16 Cabinet Frame Rack contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Middle Atlantic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Middle Atlantic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Middle Atlantic product will considerably shorten its lifespan!
|
Product description The CFR-11-16 19" frame rack from Middle Atlantic provides 11 RU of usable height with 16" in depth. It features a low-profile design which maximizes the amount of usable rack space when installing rack equipment in cabinets, credenzas, entertainment systems, podiums, lecterns, and other pre-built structures. The welded steel frame with durable black powder-coat finish allows you to preload and transport to your installation site up to 250 lb of equipment. Other features include two adjustable, side-mounted, front-to-rear lacing bars for cable dressing or mounting accessories, and an offset cable-tie area which keeps the rack to a slim 19.25" overall width. This unit is UL-listed in the USA and Canada. It is also Greenguard-certified for children and schools' indoor air quality, and it passed RoHS (Restriction of Hazardous Substances) compliance. - Low-profile design maximizes the amount of usable rack space
- Strong, welded steel frame allows for preloading and transporting equipment to the installation site
- Includes two adjustable, side-mounted, horizontal, front-to-rear lacing bars for cable dressing or mounting accessories
- Offset cable-tie area keeps rack to a slim 19.25" width
- Durable black powder-coat finish
- Greenguard indoor air quality for children and schools – certified
- RoHS (Restriction of Hazardous Substances) EU Directive 2002/95/EC – compliant
In the Box Middle Atlantic CFR-11-16 Cabinet Frame Rack (11 RU) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Middle Atlantic CFR-11-16 Cabinet Frame Rack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiddle Atlantic CFR-11-16 Specs | Dimensions | Depth: 16" (40.6 cm)
Usable Depth: 16" (40.6 cm)
Height: 20.2" (51.3 cm)
Usable Height: 19.25" (48.9 cm)
Width: 19.25" (48.89 mm)
Rack Units: 11 | | Construction | Rack Material: 16-gauge steel, welded
Rackrail Material: 11-gauge steel, tapped 10-32 mounting holes in universal EIA spacing
Mounting: Horizontal
Finish: Black powder coat | | Load Capacity | U L Load Capacity: 250 lb (11.4 kg) | | Certifications | UL Listing No: E173107
UL Standards Tested: UL1678
EIA compliant
RoHS EU Directive 2002/95/EC compliant
Greenguard indoor air quality certified
Manufactured by an ISO 9001 and ISO 14001 registered company | | | | Package Weight | 21.0 lb | | Box Dimensions (LxWxH) | 22.25 x 21.25 x 20.0" |
