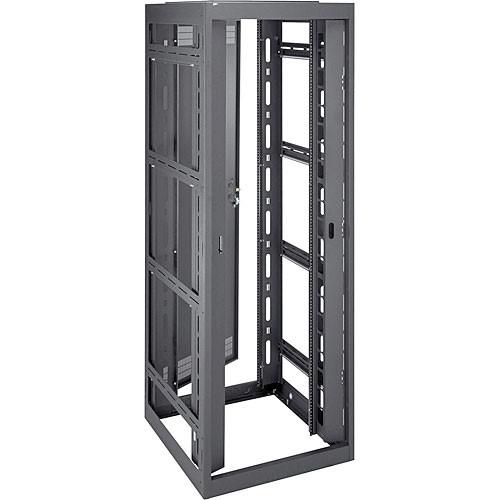

User Manual for Middle Atlantic DRK19-44-36PROLRD DRK Series Cable Management Enclosure with Cage-Nut Style Rack Rails Click to enlarge the picture
Contents of the user manual for the Middle Atlantic DRK19-44-36PROLRD DRK Series Cable
- Product category: Rack Furniture Middle Atlantic
- Brand: Middle Atlantic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Middle Atlantic Rack Furniture
|
User manual for the Middle Atlantic DRK19-44-36PROLRD DRK Series Cable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Middle Atlantic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Middle Atlantic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Middle Atlantic product will considerably shorten its lifespan!
|
Product description The DRK19-44-36PROLRD DRK Series Cable Management Enclosure with Cage-Nut Style Rack Rails from Middle Atlantic is a fully welded steel rack with 44U capacity and a depth of 36". This unit is designed to accommodate 19" wide equipment. Its steel frame and 1/8" thick structural-steel internal braces provide a weight capacity of up to 2500 lbs. This enclosure is also seismic certified to protect up to 750 lbs of essential equipment when used in conjunction with MRK-Z4 brackets.
This model is specially designed to facilitate the management of abundant cabling. Removable split rear plates include 1/2, 3/4, 1, and 1-1/2" electrical knockouts. The top plate includes UHF/VHF antenna knockouts. It also features (1) pair of cable ducts with solid-steel hinged doors and 4-point magnetic closures pre-installed in the front of the rack.
This version of the rack includes (2) pairs of square-hole cage-nut style rack rails with EIA standard spacing. The rack can also be customized with a number of separately available accessories to meet your exact needs. - Cable Management
- This rack model is specially designed to facilitate cable management and features numerous knockouts and other features to accommodate abundant cabling.
- Solid Construction
- All-steel construction and structural-steel braces guarantee exceptional strength and years of use with this unit.
- Seismic Certified
- It will protect up to 750 lbs of essential equipment when used in conjunction with MRK-Z4 brackets.
- No-Clog Rack-Rail Threads
- All rack rails are finished in durable "e-coat" to prevent clogged threads.
- Industry-Standard Design
- Rack rails are labeled in EIA standard rack space increments allowing for easy equipment alignment.
- Customization
- Pick and choose from Middle Atlantic's wide range of accessories to customize and expand your rack system.
- Grounding/Bonding Studs
- Grounding/bonding studs have been provided to help you electrically ground and bond equipment, per NEBS and NEC standards.
- UL Listed
- This rack is UL (Underwriters Laboratories) Listed in the U.S. and Canada.
- Free Layout & Specifications Software
- RackTools free layout and specification software is included for effective system design help.
- Knockouts
- Electrical knockouts can easily be removed to pass and organize cables.
- Cage-Nut Style Rack Rails
- This model includes square-hole cage-nut style rack rails.
In the Box Middle Atlantic DRK19-44-36PROLRD DRK Series Cable Management Enclosure with Cage-Nut Style Rack Rails Rack Frame 4 x Rack Rails (2 Pairs, Front & Rear) 100 x Rack Screws Limited Lifetime Warranty to Original Purchaser Table of Contents
|
Upload User Manual
Have you got an user manual for the Middle Atlantic DRK19-44-36PROLRD DRK Series Cable Management Enclosure with Cage-Nut Style Rack Rails in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiddle Atlantic DRK19-44-36PROLRD Specs | Construction | Welded steel frame and 1/8" thick structural-steel internal braces | | Finish | Black textured powder coat | | Cabinet | Accepts 19" equipment (width)
Useable depth 28.75"
Capacity 44U (77") | | Dimensions (HxWxD) | 83.5 x 30 x 36" | | Weight Capacity | 2500 lbs
(Seismic certified capacity up to 750 lbs when used in conjunction with MRK-Z4 brackets) | | Weight | Not specified by manufacturer |
