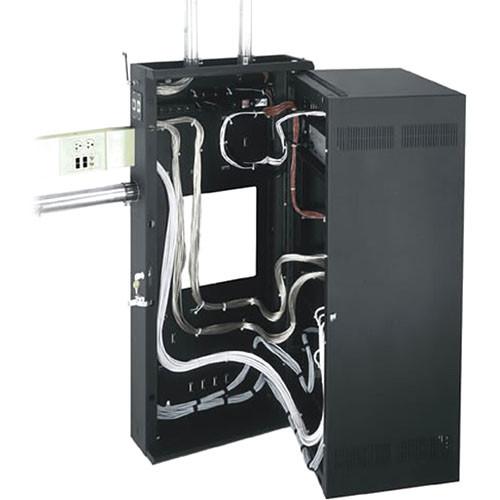

User Manual for Middle Atlantic DWR-12-22PD Sectional Wall Mount Rack with Plexiglass Front Door Click to enlarge the picture
Contents of the user manual for the Middle Atlantic DWR-12-22PD Sectional Wall Mount
- Product category: Rack Furniture Middle Atlantic
- Brand: Middle Atlantic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Middle Atlantic Rack Furniture
|
User manual for the Middle Atlantic DWR-12-22PD Sectional Wall Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Middle Atlantic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Middle Atlantic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Middle Atlantic product will considerably shorten its lifespan!
|
Product description The Middle Atlantic DWR-12-22PD Sectional Wall Mount Rack with Plexiglass Front Door is a 22” (20” Useable) / 55.8cm (50.8cm) deep rack designed for mounting 19" wide equipment onto a wall. A tool-less quick mount system enables single person mounting of the center section to the back panel.
Adjustable front threaded rack rail (11-gauge 10-32) with marked rack space speeds up equipment mounting. Using center section hinges, you can accommodate left/right opening accessories. The center section and back panel feature top/bottom grounding/bonding studs to enable proper grounding and bonding of electrical items in compliance with the NEBS/NEC standards.
The DWR-12-22PD wall mount rack can handle load capacity of up to 200 lb (90kg). You can mount wall racks to the side or corner with the help of a front mounted minimum clearance latch, thereby saving considerable wall space.
Top and bottom of the wall rack features 0.5”, 0.75”, 1”, 1.5”, 2”, 3” electrical knockouts and 0.6” UHF/VHF antenna knockouts to facilitate easy cable attachment. In addition, the wall mount features 2”/4” knockout for Wiremold 4000 Series raceways and knockouts for UCP series connector panels on the sides. - 22" (20" Useable) / 55.8cm (50.8cm) deep rack used for mounting electrical equipments onto the wall
- Tool-less quick mount system - enables single person mounting of the center section to the back panel
- Speeds up equipment mounting via adjustable front threaded rack rail (11-gauge 10-32) with marked rack space
- Accommodates left/right opening accessories via center section hinges
- Center section and back panel features top/bottom grounding/bonding studs to enable proper grounding and bonding of electrical items in compliance with the NEBS/NEC standards
- Can handle load capacity of up to 200 lb (90kg)
- Can mount wall racks to the side or corner with the help of a front mounted minimum clearance latch - saving considerable wall space
- Top and bottom of the wall rack features 0.5", 0.75", 1", 1.5", 2", 3" electrical knockouts and 0.6" UHF/VHF antenna knockouts to facilitate easy cable attachment
- Features 2"/4" knockout for Wiremold 4000 Series raceways and knockouts for UCP series connector panels on the sides
- Features 12.5 x 12.5" laser knockout opening in the back panel for electrical pull-box
- Integrates cable lacing points
- Sports a durable black/granite gray textured powder coat finish
- Features sufficient hook-and-loop fastener and cable tie points
- UL listed in US and Canada
In the Box Middle Atlantic DWR-12-22PD Sectional Wall Mount Rack with Plexiglass Front Door Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Middle Atlantic DWR-12-22PD Sectional Wall Mount Rack with Plexiglass Front Door in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiddle Atlantic DWR-12-22PD Specs | Depth | 22" (20" Useable) / 55.8cm (50.8cm) | | Racking Height | 21" (53.5cm)(12 space) | | Cabinet | Accepts 19" wide equipment (48.26 cm) | | Load Capacity | 200lb (90kg) | | Overall Height | 28.06" (71.2cm) | | | | Package Weight | 90.0 lb | | Box Dimensions (LxWxH) | 32.0 x 27.0 x 24.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 03 owners. Add your rating and experience with the product.
