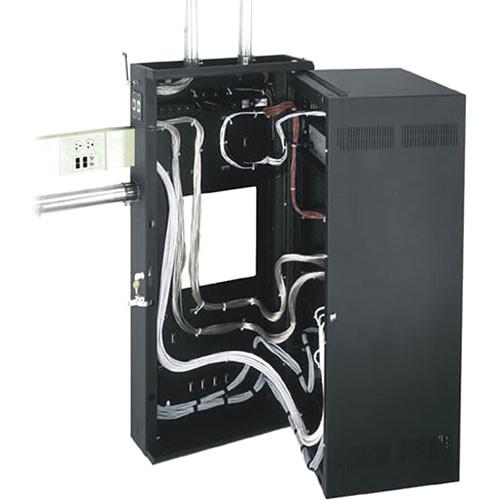

Product description The Middle Atlantic DWR-18-22PD Sectional Wall Mount Rack with Plexi Front Door is a 22" (20" Useable) / 55cm (50.8cm) deep rack designed for mounting 19" wide equipment onto a wall, and can be used with loads up to 250 lb (113kg). Tool-less quick mount system allows a single person to mount the center section to the backpan. A plexiglass front door provides protection for the rack contents.
Adjustable front threaded rack rail (11-gauge 10-32) with marked rack space speeds up equipment mounting. Using center section hinges, you can accommodate left/right opening accessories. Proper grounding and bonding of electrical items in compliance with the NEBS/NEC standards is possible via top/bottom grounding/bonding studs integrated into the center section and backpan.
With welded construction, the rack features sufficient touchtab and cable tie points for stable and secure equipment housing. You can mount wall racks to the side or corner with the help of a front mounted minimum clearance latch, thereby saving considerable wall space.
Top and bottom of the wall rack feature 0.5”, 0.75”, 1”, 1.5”, 2”, 3” electrical knockouts and 0.6” UHF/VHF antenna knockouts to facilitate easy cable attachment. In addition, wall mount features a 2”/4” knockout for Wiremold 4000 series raceways and knockouts for UCP series connector panels on the sides. - 22" (20" Useable) / 55cm (50.8cm) deep rack used for mounting electrical equipment onto the wall
- Enables single person mounting of the center section to the backpan via tool-less quick mount system
- Provides protection of rack contents via a plexiglass front door
- Speeds up equipment mounting via an adjustable front threaded rack rail (11-gauge 10-32) with marked rack space
- Accommodates left/right opening accessories via center section hinges
- Center section and backpan feature top/bottom grounding/bonding studs to enable proper grounding and bonding of electrical items in compliance with the NEBS/NEC standards
- Supports loads up to 250 lb (113kg)
- Features sufficient touchtab and cable tie points
- Can mount wall racks to the side or corner with the help of a front mounted minimum clearance latch
- Top and bottom of the wall rack feature 0.5", 0.75", 1", 1.5", 2", 3" electrical knockouts and 0.6" UHF/VHF antenna knockouts to facilitate easy cable attachment
- Features a 2"/4" knockout for Wiremold 4000 series raceways and knockouts for UCP series connector panels on the sides
- Features 12.5 x 12.5" laser knockout opening in the backpan for electrical pull-box
- Integrates cable lacing points
- Sports a durable black/granite gray textured powder coat finish
- Offers an overall height of 38.5" (97.7cm)
In the Box Middle Atlantic DWR-18-22PD Sectional Wall Mount Rack with Plexi Front Door Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Middle Atlantic DWR-18-22PD Sectional Wall Mount Rack with Plexi Front Door in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiddle Atlantic DWR-18-22PD Specs | Depth | 22" (20" Useable) / 55cm (50.8cm) | | Load Capacity | 250 lb (113kg) | | Cabinet | Accepts 19" wide equipment (48.26 cm) | | Racking Height | 31.5" (80cm)(18 space) | | Overall Height | 38.56" (97.94cm) | | | | Package Weight | 124.0 lb | | Box Dimensions (LxWxH) | 45.0 x 27.0 x 26.0" |
