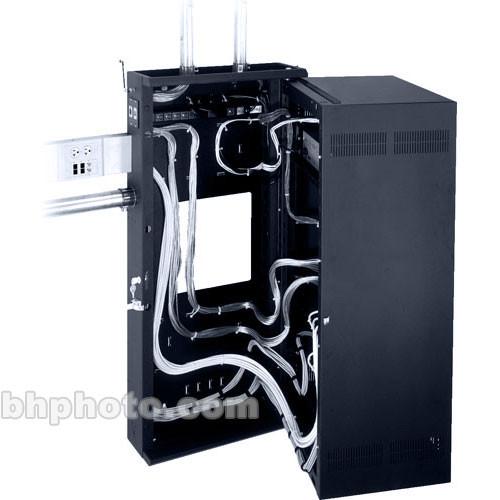

User Manual for Middle Atlantic DWR Sectional Wall Mount Rack DWR-24-17PD Click to enlarge the picture
Contents of the user manual for the Middle Atlantic DWR Sectional Wall Mount
- Product category: Rack Furniture Middle Atlantic
- Brand: Middle Atlantic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Middle Atlantic Rack Furniture
|
User manual for the Middle Atlantic DWR Sectional Wall Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Middle Atlantic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Middle Atlantic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Middle Atlantic product will considerably shorten its lifespan!
|
Product description This Middle Atlantic DWR Sectional Wall Mount Rack DWR-24-17PD (Black) is a 24U rack designed for 19" wide equipment. It features the trademarked "Tool-Free Quick-Mount" system, which allows one-person mounting and installation. Its welded-steel construction supports up to 300 lb. and adjustable 1/8", 10-32 threaded front rack rails make positioning your equipment a snap (rear rack rails are optional).
This rack offers unsurpassed cable management features. Abundant, built-in cable lacing points and touch-fastener tie points allow you to organize any quantity of cables. And numerous knockouts on the top, bottom, and back offer numerous pass through points for cabling. The top and bottom of the rack includes 1/2", 3/4", 1", 1-1/2", 2" and 3" electrical knockouts and a 5/8" knockout for UHF/VHF antenna. The backpan features a 12-1/2" x 12-1/2" laser knockout opening for an electrical pull-box. And the side offers 2" and 4" knockouts for Wiremold 4000 Series raceways and UCP series universal connector panels. Laser knockouts in the center section, top, and bottom accommodate up to four (4) 4-1/2" fans.
Hinges may be mounted for left or right opening accessories. The optional front-mounted "Zero Clearance Latch" saves wall space by allowing wall racks to be placed side-by-side or in a corner, eliminating issues with side clearance. This rack's backpan includes raised embosses to mount power products or other accessories. This model comes fully assembled with a plexi-front door. - Solid Construction
- Constructed from 16-gauge steel with 1/8" thick laser-cut corner braces
- Tool-Free Quick-Mount System
- Middle Atlantic's trademarked "Tool-Free Quick-Mount" system allows for easy, one-person mounting of this rack.
- Cable Management System
- Built-in cable lacing points, touch-fastener tie points, and numerous knockouts allow you to organize any quantity of cables.
- Customization
- A variety of accessories allow you to personalize your rack to meet your exact needs: doors, fans, latches, rear rack rails, and more.
- No-Clog, Rack-Rail Threads
- All rack rails finished in durable "e-coat" to prevent clogged threads.
- Industry-Standard Design
- Rack rail is labeled in EIA standard rack space increments allowing for easy equipment alignment.
- Pre-Installed Washers
- Pre-installed washers on all 10-32 threaded rack screws save installation time.
- Grounding/Bonding Studs
- Grounding/Bonding Studs have been provided to help you electrically ground and bond equipment, per NEBS and NEC standards.
- Free Layout & Specifications Software
- RackTools free layout and specification software included for effective system design help.
- UL Listed
- This product has been UL (Underwriters Laboratories) Listed in the United States and Canada.
- Quality Guaranteed
- Limited Lifetime Warranty to Original Purchaser.
In the Box Middle Atlantic DWR Sectional Wall Mount Rack DWR-24-17PD (Black) Rack 2 x Front Rack Rails (1 Pair) Plexi-Front Door Limited Lifetime Warranty to Original Purchaser Table of Contents
|
Upload User Manual
Have you got an user manual for the Middle Atlantic DWR Sectional Wall Mount Rack DWR-24-17PD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiddle Atlantic DWR-24-17PD Specs | Construction | 16-gauge steel with 1/8" thick laser-cut corner braces | | Finish | Black, powder-coat finish | | Shelf | None | | Cabinet | Accepts 19" wide equipment (48.26 cm)
Usable depth: 15" (38.1 cm)
Capacity 42" (24U) | | Mobility | not specified by manufacturer | | Dimensions (WxHxD) | 23-3/8 x 49-1/16 x 17" | | Weight Capacity | 300 lb. | | Weight | not specified by manufacturer | | | | Package Weight | 138.0 lb | | Box Dimensions (LxWxH) | 55.0 x 27.0 x 24.0" |
