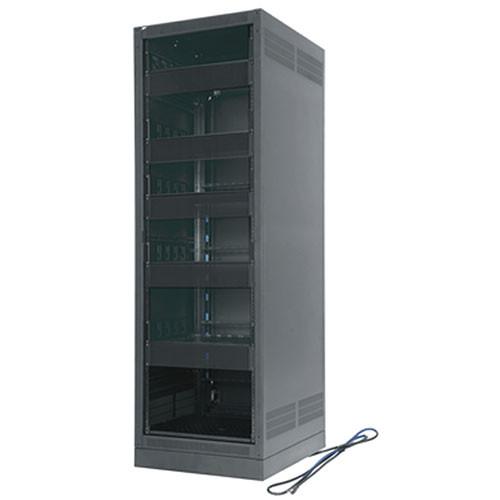

User Manual for Middle Atlantic ERK-2125-CONFIG 21U A V Rack Click to enlarge the picture
Contents of the user manual for the Middle Atlantic ERK-2125-CONFIG 21U A V
- Product category: Rack Furniture Middle Atlantic
- Brand: Middle Atlantic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Middle Atlantic Rack Furniture
|
User manual for the Middle Atlantic ERK-2125-CONFIG 21U A V contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Middle Atlantic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Middle Atlantic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Middle Atlantic product will considerably shorten its lifespan!
|
Product description The Middle Atlantic ERK-2125-CONFIG 21U A/V Rack supports up to 2500 lb (1133.98 kg) of load, and consists of 3 vented two-point rackshelves, 4 offset horizontal lacer bars, a pair of fully adjustable front rackrails, and 16-gauge steel tops / bottoms / sides. The enclosure system has 21U of rack spacing, and 25 inches of depth.
Large cable entry is provided at the bottom, and the rack also includes a thin, filtered, and surge protected 6-outlet 15 Amp power strip. 1/2", 3/4", 1" and 1.5" electrical knockouts are available on removable split rear plates, while the top knockout plate additionally includes UHF/VHF antenna knockouts. Solid top with fan knockouts is provided along with grounding and bonding stud installed in base.
Along with UL certification, the rack also complies with seismic certification (UBC 1997 & CBC 1998 Zone 4; IBC 2000, IBC 2003, ASCE 7 - 02, NFPA 5000 Seismic Use Group III), which protects 650 lbs. of essential equipment when used in conjunction with ERK-Z4 brackets.
You can easily move the A/V rack using a smooth floor caster base, while durability is enhanced by a black textured powder coat finish. - Supports 2500 lb (1133.98 kg) load capacity
- Consists of 3 vented two-point rackshelves, 4 offset horizontal lacer bars, 1 pair of fully adjustable front rackrails, and 16-gauge steel tops/bottoms/sides
- Includes 1/8" laser-cut thick internal braces
- 21U of rack spacing, and 25 inches of depth
- Provides a large cable entry at the bottom
- Includes a thin, filtered, and surge protected 6-outlet 15 Amp power strip
- Offers 1/2", 3/4", 1" and 1.5" electrical knockouts on removable split rear plates
- Includes UHF/VHF antenna knockouts on top knockout plate
- Solid top with fan knockouts
- Grounding and bonding stud installed in base
- Safety - UL Certified, and Seismic certified (UBC 1997 & CBC 1998 Zone 4; IBC 2000, IBC 2003, ASCE 7 - 02, NFPA 5000 Seismic Use Group III), which protects 650 lbs. of essential equipment when used in conjunction with ERK-Z4 brackets
- Enhances mobility via a smooth floor caster base
- Improves durability via a black textured powder coat finish
UPC: 656747123054 In the Box Middle Atlantic ERK-2125-CONFIG 21U A/V Rack 2 x Front Rackrails 16-gauge Steel tops/bottoms/sides 3 x Vented Two-point Rackshelves 3 x Vent Panels 4 x Offset Horizontal Lacer Bars 6-outlet 15 Amp Power Strip Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Middle Atlantic ERK-2125-CONFIG 21U A V Rack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiddle Atlantic ERK-2125-CONFIG Specs | Overall Height | 40.87" (109.8cm) | | Usable Height | 21U - 36.75" (93.34cm) | | External Width | 22.16" (56.28cm) | | Depth | 25" (63.5cm) | | Load Capacity | 2500 lb (1133.98kg) | | Color | Black | | Rack Rails | Tapped 10-32 | | | | Package Weight | 334.0 lb | | Box Dimensions (LxWxH) | 44.0 x 26.5 x 25.5" |
