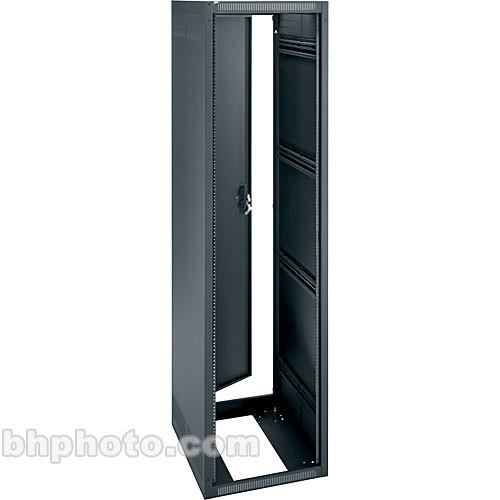

User Manual for Middle Atlantic ERK-2725 ERK 19" Stand-Alone Enclosure with Rear Door Click to enlarge the picture
Contents of the user manual for the Middle Atlantic ERK-2725 ERK 19" Stand-Alone
- Product category: Rack Furniture Middle Atlantic
- Brand: Middle Atlantic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Middle Atlantic Rack Furniture
|
User manual for the Middle Atlantic ERK-2725 ERK 19" Stand-Alone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Middle Atlantic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Middle Atlantic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Middle Atlantic product will considerably shorten its lifespan!
|
Product description This ERK-2725 ERK 19" Stand-Alone Enclosure with Rear Door from Middle Atlantic is a fully welded steel rack with 27U capacity designed to hold 19" wide equipment. Its steel frame and 1/8" thick, structural-steel, internal braces provide a weight capacity of up to 2,500 lb. This enclosure is also seismic certified to protect up to 650 lb. of essential equipment when used in conjunction with ERK-Z4 brackets.
This rack comes standard with (1) pair of 11-gauge threaded, 10-32 rackrails with EIA spacing and labeled rackspace increments. Electrical knockouts on rear plates (both top and bottom) can easily be removed to pass cables (includes 1/2", 3/4", 1" and 1-1/2" openings). The top plate additionally includes a UHF/VHF knockout. A large cable entry point is included in the bottom panel with grounding/bonding studs in the base. This model also features a solid top with fan knockouts.
This enclosure system is gangable, allowing you to expand your system at will by adding additional cabinets. And customization is a snap with practical accessories to meet your exact needs, such as optional rear rackrails and a vented door. This model is UL Listed in the United States and Canada. - Solid Construction
- All-steel construction and structural-steel braces guarantee exceptional strength and years of use.
- Rear Door
- This model includes a solid rear door.
- Seismic Certified
- Protects up to 650 lbs of essential equipment when used in conjunction with ERK-Z4 brackets.
- No-Clog, Rack-Rail Threads
- All rack rails finished in durable "e-coat" to prevent clogged threads.
- Industry-Standard Design
- Rackrail is labeled in EIA standard rackspace increments allowing for easy equipment alignment.
- Customization
- Pick and choose from Middle Atlantic's wide range of accessories to customize and expand your rack system.
- Pre-Installed Washers
- Pre-installed washers on all 10-32 threaded rackscrews save installation time.
- Grounding/Bonding Studs
- Grounding/Bonding Studs have been provided to help you electrically ground and bond equipment, per NEBS and NEC standards.
- Free Layout & Specifications Software
- RackTools free layout and specification software included for effective system design help.
- Quality Guaranteed
- Limited Lifetime Warranty to Original Purchaser
In the Box Middle Atlantic ERK-2725 ERK 19" Stand-Alone Enclosure with Rear Door Rack Frame Top Panel Bottom Panel 2 x Side Panels 4 x Rackrails (2 pairs, front and rear) Rear Door Limited Lifetime Warranty to Original Purchaser Table of Contents
|
Upload User Manual
Have you got an user manual for the Middle Atlantic ERK-2725 ERK 19" Stand-Alone Enclosure with Rear Door in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiddle Atlantic ERK-2725 Specs | Construction | Welded, steel frame and 1/8" thick, structural-steel, internal braces | | Finish | Black, powder-coat finish | | Shelf | None | | Cabinet | Accepts 19" Equipment (Width)
Depth 25"
Capacity 47-1/2" (27U) | | Mobility | Not specified by manufacturer | | Dimensions (HxWxD) | 51-3/8 x 22 x 25" | | Weight Capacity | 2,500 lbs
(Seismic certified capacity up to 650 lbs when used in conjunction with ERK-Z4 brackets) | | Weight | Not specified by manufacturer | | | | Package Weight | 132.0 lb | | Box Dimensions (LxWxH) | 58.0 x 30.0 x 27.0" |
