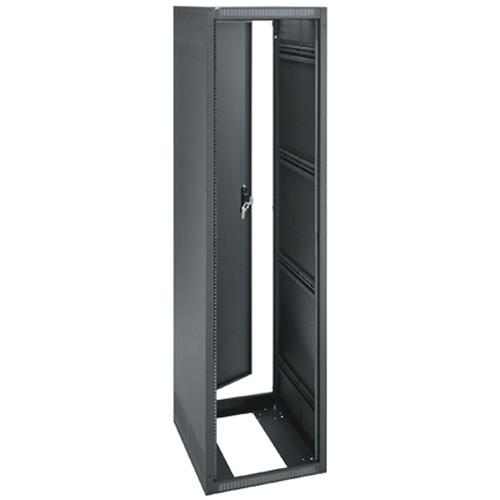

User Manual for Middle Atlantic ERK-3528 Standalone Rack with Solid Sides and Rear Door Click to enlarge the picture
Contents of the user manual for the Middle Atlantic ERK-3528 Standalone Rack with
- Product category: Rack Furniture Middle Atlantic
- Brand: Middle Atlantic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Middle Atlantic Rack Furniture
|
User manual for the Middle Atlantic ERK-3528 Standalone Rack with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Middle Atlantic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Middle Atlantic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Middle Atlantic product will considerably shorten its lifespan!
|
Product description The ERK-3528 Standalone Rack with Solid Sides and Rear Door from Middle Atlantic is designed specifically to address the needs of the equipment that is being mounted. The fully welded construction combined with steel tops, bottoms, and sides, provides a 2500 lb. load capacity. Each model comes with a standard key locking rear door and 1/8" thick interior braces made from structural steel. Removable rear plates have 1/2", 3/4", 1", and 1-1/2" knockouts for passing cable bundles over or under the rear door. Internally, it comes standard with front 11-gage, 10-32 threaded rack rails that are fully adjustable. - Fully welded construction
- 1/8" thick structural steel internal braces
- Enclosure sides include top and bottom venting
- Convenient lacing points and slotted rail brackets for cable management
- Seismic certified (when used with ERK-Z4 option) with an IP value of 1.5
- 1/2", 3/4", 1" and 1-1/2" electrical knockouts on removable split rear plates top and bottom, easily removable for cable pass-through. Top plates additionally include UHF / VHF knockouts
- Standard front (rear optional) 11-gauge, 10-32 threaded, fully adjustable rack rail with numbered rack space increments
- Key-locked solid rear door standard
- Optional vented rear doors available
- Black textured powder coat finish
- Optional front doors available
- Includes standard configurable rear door
- UL Listed in the US and Canada
In the Box Middle Atlantic ERK-3528 Standalone Rack with Solid Sides and Rear Door Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Middle Atlantic ERK-3528 Standalone Rack with Solid Sides and Rear Door in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiddle Atlantic ERK-3528 Specs | Rack Units | 35 | | Material | Steel | | Mounting | Horizontal | | Rack Rails | Rack rail Type: 10-32 | | Load Capacity | UL Load Capacity: 2500 lb (1133.9 kg) | | Certification | Seismic Certified: 680 | | Agency Listing | ASCE: 7-10
RoHS: Yes
GREENGUARD: Yes
UL Listing No: E173107 | | UL | UL Standards Tested: 1678 | | Usable Height | Usable Height: 61.4" (156.0 cm) | | Dimension (D x W x H) | 28.0 x 22.0 x 65.4" (71.1 x 55.9 x 166.1 cm) | | | | Package Weight | 154.0 lb | | Box Dimensions (LxWxH) | 70.0 x 36.0 x 27.0" |
