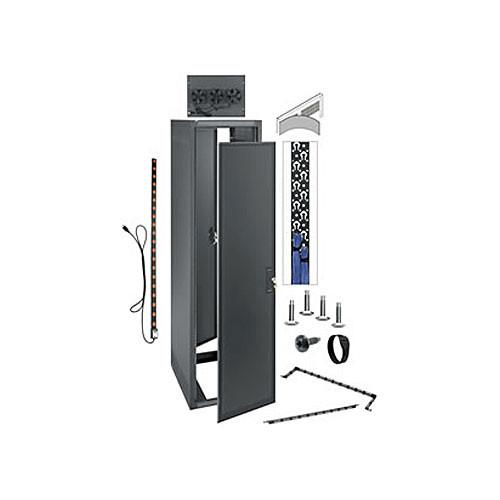

User Manual for Middle Atlantic ERK-4425-AV ERK 19" Audio-Video Stand-Alone Enclosure Click to enlarge the picture
Contents of the user manual for the Middle Atlantic ERK-4425-AV ERK 19" Audio-Video
- Product category: Rack Furniture Middle Atlantic
- Brand: Middle Atlantic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Middle Atlantic Rack Furniture
|
User manual for the Middle Atlantic ERK-4425-AV ERK 19" Audio-Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Middle Atlantic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Middle Atlantic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Middle Atlantic product will considerably shorten its lifespan!
|
Product description This ERK-4425-AV ERK 19" Audio-Video Stand-Alone Enclosure from Middle Atlantic is a fully welded steel rack with 44U capacity designed to hold 19" wide equipment. Its steel frame and 1/8" thick structural-steel internal braces provide a weight capacity of up to 2500 lbs. This enclosure is also seismic certified to protect up to 650 lbs of essential equipment when used in conjunction with ERK-Z4 brackets.
This is a specially designed model that comes preconfigured for use with audio-video applications. It features (1) pair of 11-gauge threaded 10-32 rack rails with EIA spacing and labeled rack-space increments. Also included is an integrated fan top, a configurable rear door with a bottom vent, a solid locking front door, welded side panels with vent blockers, a 3-1/4" vertical lacer strip, (6) horizontal lacer bars, (12) 8" cable management straps, (2) 10-outlet thin powers trips, leveling feet, and mounting hardware.
This enclosure system can be ganged with other racks from the same series, allowing you to expand your system at will by adding additional cabinets. Customization is also made easy with a number of separately available practical accessories to meet your exact needs. This model is UL Listed in the United States and Canada. - Solid Construction
- All-steel construction and structural-steel braces guarantee exceptional strength and years of use.
- Seismic Certified
- Protects up to 650 lbs of essential equipment when used in conjunction with ERK-Z4 brackets.
- No-Clog Rack-Rail Threads
- All rack rails are finished in a durable "e-coat" to prevent clogged threads.
- Industry-Standard Design
- Rack rails are labeled in EIA standard rack-space increments, allowing for easy equipment alignment.
- Customization
- Pick and choose from Middle Atlantic's wide range of accessories to customize and expand your rack system.
- Pre-Installed Washers
- Pre-installed washers on all 10-32 threaded rack screws save installation time.
- Grounding/Bonding Studs
- Grounding/Bonding Studs have been provided to help you electrically ground and bond equipment per NEBS and NEC standards.
- Free Layout & Specifications Software
- RackTools free layout and specification software is included for effective system design help.
In the Box Middle Atlantic ERK-4425-AV ERK 19" Audio-Video Stand-Alone Enclosure Rack Frame Integrated Fan Top Rear Door with Bottom Vent Locking Front Door 2 x Welded Side Panels with Vent Blockers 2 x Rack Rails (One Pair, Front) 3-1/4" Vertical Lacer Strip 6 x Horizontal Lacer Bars 12 x Cable-Management Straps 2 x 10-Outlet Thin Power Strips Set of Leveling Feet 100 x 10-32 Mounting Hardware Limited Lifetime Warranty to Original Purchaser Table of Contents
|
Upload User Manual
Have you got an user manual for the Middle Atlantic ERK-4425-AV ERK 19" Audio-Video Stand-Alone Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiddle Atlantic ERK-4425-AV Specs | Construction | Welded steel frame and 1/8" thick structural-steel internal braces | | Finish | Black powder-coat finish | | Shelf | None | | Cabinet | Accepts 19" Equipment (Width)
Bottom Opening Depth 20.25"
Capacity 44U (77.125") | | Mobility | Not specified by manufacturer | | Dimensions (HxWxD) | 81.125 x 22 x 25" | | Weight Capacity | 2500 lbs
(Seismic certified capacity up to 650 lbs when used in conjunction with ERK-Z4 brackets) | | Weight | Not specified by manufacturer | | | | Package Weight | 199.0 lb | | Box Dimensions (LxWxH) | 87.0 x 30.0 x 27.0" |
