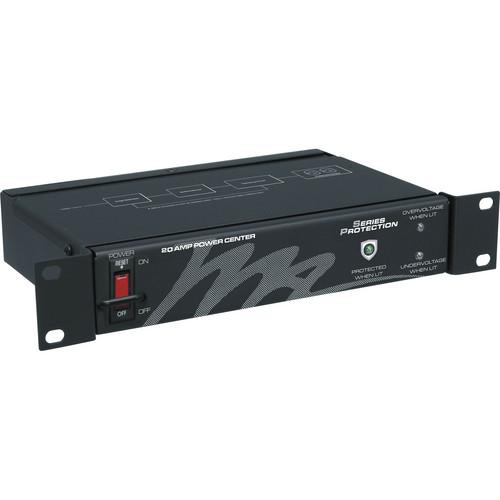

User Manual for Middle Atlantic Half Rack Power Distribution with 20A Series Protection Click to enlarge the picture
Contents of the user manual for the Middle Atlantic Half Rack Power Distribution
- Product category: Power Distributors & Conditioners Middle Atlantic
- Brand: Middle Atlantic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Middle Atlantic Power Distributors & Conditioners
|
User manual for the Middle Atlantic Half Rack Power Distribution contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Middle Atlantic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Middle Atlantic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Middle Atlantic product will considerably shorten its lifespan!
|
Product description Middle Atlantic's Half Rack Power Distribution with 20A Series Protection is a half rack unit that can power and protect up to four SignalSAFE cords. This rackmount is ideal for installation in half-width racks like the Middle Atlantic HRF Series. Rack ears can be removed for installation vertically between rackmounted equipment and the side of a rack, or other space-restricted areas.
Surge protection is a critical element in ensuring overall system reliability. While MOV-based surge suppression technology is a proven and cost effective solution for many installations, over time and under the right circumstances the protection provided by poorly designed MOV-based surge protectors can be compromised, or under extreme circumstances fail completely, leaving connected equipment vulnerable to damage. For critical applications, many professional installers and consultants prefer to use or specify non-degrading (series-type) surge technology. Series-type surge suppressors are designed to withstand multiple high voltage surges for the lifetime of the product, and do not depend on any degrading materials in their design. - Connected devices are automatically disconnected (protected) from sustained over and under voltage events
- Automatic recovery after an over/under voltage event minimizes system downtime (unlike devices that require hard reset after a surge event)
UPC: 656747196942 In the Box Middle Atlantic Half Rack Power Distribution with 20A Series Protection (4 Outlets) Limited 12-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Middle Atlantic Half Rack Power Distribution with 20A Series Protection in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiddle Atlantic PD-420R-SP Specs | Input | 4 x SignalSAFE Cords | | Output Type | Spec Grade Output Type: Duplex, Rear only | | Illumination | Combo Breaker ON/OFF: Side (with Bar) | | Peak Load Current | 20A | | Surge | Series Protection | | Overload | Supplementary Overload Protector | | LED | Over/Under Voltage Notification LED:
Two LEDS: Over Voltage, Under Voltage, Default=Off | | Voltage | Upper Limit Cutoff: 135VAC (RMS)
Upper Limit Restore: 126VAC (RMS)
Lower Limit Cutoff: 100VAC (RMS)
Lower Limit Restore: 105VAC (RMS) | | Dimensions | Without Rack Ears: 8.4 x 7.92 x 1.74" (213 x 201 x 44 mm)
With Rack Ears: 10.40 x 7.92 x 1.74" (264 x 201 x 44 mm) | | | | Package Weight | 7.8 lb | | Box Dimensions (LxWxH) | 21.0 x 7.0 x 4.0" |
