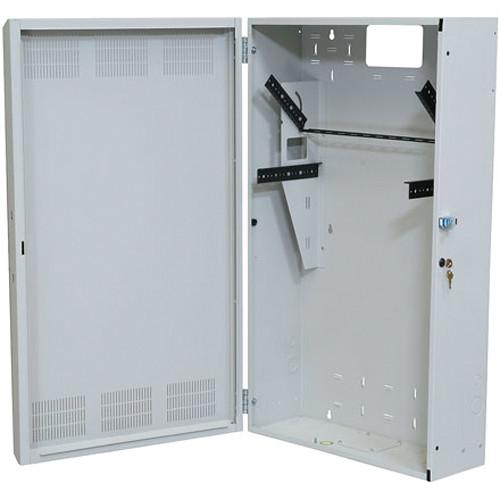

User Manual for Middle Atlantic HDR-9 Horizontal Distribution Rack Click to enlarge the picture
Contents of the user manual for the Middle Atlantic HDR-9 Horizontal Distribution Rack
- Product category: Rack Furniture Middle Atlantic
- Brand: Middle Atlantic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Middle Atlantic Rack Furniture
|
User manual for the Middle Atlantic HDR-9 Horizontal Distribution Rack contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Middle Atlantic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Middle Atlantic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Middle Atlantic product will considerably shorten its lifespan!
|
Product description The HDR-9 Horizontal Distribution Rack from Middle Atlantic is a horizontal distribution rack featuring a beveled front door with flanges, a 4 RU pivoting top mounting area, and a 5 RU mounting bottom area. The rack has a putty powder coat finish. - Provides two mounting areas (4 total rackspaces) for equipment mounting
- Upper bay mounts patch panels and pivots 100º with stop for punch-downs
- Lower bay mounts switches and routers and pivots 15º for access to connections
- Beveled front door with flanges on all sides for increased security
- Hinged door is reversible and vented with lock and padlockable latch
- Laser knockouts on the top, bottom and sides for cable entry
- Integral electrical box simplifies power distribution
- Standard 10-32 threaded rackrail in both sections (2 spaces each)
- Includes 24" length of hook and loop fasteners
UPC: 656747233814 In the Box Middle Atlantic HDR-9 Horizontal Distribution Rack Hook and Loop Fastener Roll Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Middle Atlantic HDR-9 Horizontal Distribution Rack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiddle Atlantic HDR-9 Specs | Mounting | Vertical | | Rack Rails | 10-32 | | Load Capacity | UL Load Capacity: 150 lb (68 kg) | | Material | Steel | | Certifications & Approvals | RoHS, Greenguard, CSA Standard,
E313734 UL listing | | Rack Size | 2 RU | | Usable Depth | 18" (45.7 cm) | | Usable Height | 3.5" (8.8 cm) | | Dimensions (D x H x W) | 7.5 x 36 x 25.57" (19 x 91 x 64 cm) | | Weight | Not specified by the manufacturer | | | | Package Weight | 54.3 lb | | Box Dimensions (LxWxH) | 38.0 x 27.5 x 12.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 95 owners. Add your rating and experience with the product.
