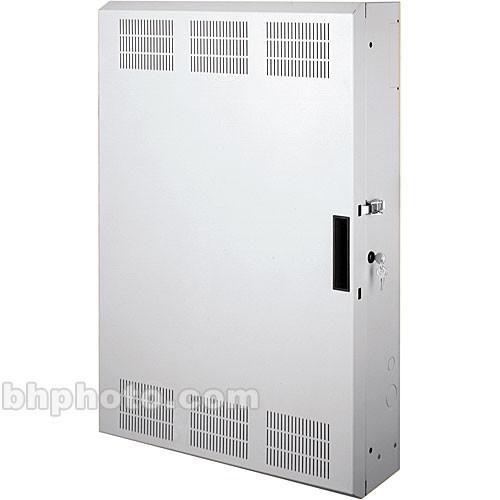

Product description The Middle Atlantic Horizontal Distribution Rack HDR4 is a wall-mount rack that provides two independent mounting areas for patch panels, switches, hubs and routers. The upper bay mounts patch panels and pivots 100° with positive stop for punch downs. The lower bay mounts switches, hubs, and routers and pivots 15° for easy access to rear connections.
The beveled, front door includes flanges on all sides for added security. It can be locked shut, but is vented to ensure that equipment remains cool. This rack supports up to 150 lb. of equipment and is UL Listed in the United States and Canada.
Multiple electrical knockouts accommodate electrical conduits and Wiremold 4000 Series raceway. And abundant cable, tie-points and a 24" length of hook and loop fasteners are also included for more efficient cable management. These features also include a 7" x 4" pass-through on the backpan and 4" cable-duct knockouts on the top, bottom, and sides of the rack. - Solid Construction
- Constructed from 16-gauge steel for a lifetime of use
- Cable Management System
- Built-in cable-tie points and numerous knockouts allow you to organize any quantity of cables.
- No-Clog, Rack-Rail Threads
- All rack rails finished in durable "e-coat" to prevent clogged threads.
- Industry-Standard Design
- Rackrail is labeled in EIA standard rackspace increments allowing for easy equipment alignment.
- Pre-Installed Washers
- Pre-installed washers on all 10-32 threaded rackscrews save installation time.
- Grounding/Bonding Studs
- Grounding/Bonding Studs have been provided to help you electrically ground and bond equipment, per NEBS and NEC standards.
- UL Listed
- This product has been UL (Underwriters Laboratories) Listed in the United States and Canada.
- Quality Guaranteed
- Limited Lifetime Warranty to Original Purchaser.
In the Box Middle Atlantic Horizontal Distribution Rack HDR4 Rack Front Door Limited Lifetime Warranty to Original Purchaser. Table of Contents
|
Upload User Manual
Have you got an user manual for the Middle Atlantic Horizontal Distribution Rack HDR4 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiddle Atlantic HDR-4 Specs | Construction | 16-gauge steel | | Finish | Putty, powder-coat finish | | Shelf | None | | Cabinet | 3-1/2" (2U) - upper rack area
3-1/2" (2U) - lower rack area | | Mobility | Not specified by manufacturer | | Dimensions (HxWxD) | 36 x 25-1/2 x 7-1/2" | | Weight Capacity | 150 lbs | | Weight | Not specified by manufacturer | | | | Package Weight | 47.4 lb | | Box Dimensions (LxWxH) | 39.0 x 26.0 x 10.0" |
