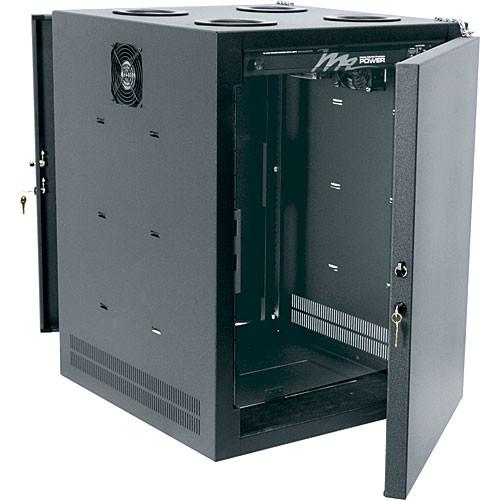

User Manual for Middle Atlantic IDF-TM-1224BK 12U Intermediate Distribution Rack Click to enlarge the picture
Contents of the user manual for the Middle Atlantic IDF-TM-1224BK 12U Intermediate Distribution
- Product category: Rack Furniture Middle Atlantic
- Brand: Middle Atlantic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Middle Atlantic Rack Furniture
|
User manual for the Middle Atlantic IDF-TM-1224BK 12U Intermediate Distribution contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Middle Atlantic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Middle Atlantic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Middle Atlantic product will considerably shorten its lifespan!
|
Product description This IDF-TM-1224BK 12U Intermediate Distribution Rack from Middle Atlantic is a specially designed rack meant for housing equipment in overhead spaces in warehouses, retail outlets, and other similar open-area installations. The unit can be mounted overhead to a uni-strut beam or from trusses using threaded rods (not included).
The unit features a number of options that allow for custom configuration to meet your exact needs. Multiple UHF/VHF knockouts are included on the bottom of the enclosure and the bottom plate can also be machined in the field to accommodate wireless antennae, dome cameras, and other similar devices. Side knockouts also facilitate conduit pass-through to an included standard electrical box. Dual exhaust fans in the unit help to cool your equipment and extend its useful life.
The rack includes (2) pairs of 11-gauge steel rack rails with tapped 10-32 mounting holes in universal EIA/TIA spacing. The top panel includes (4) integral gland grommets to protect cables and prevent dust and other debris from entering the cabinet. A power distribution unit is also included with the rack. - Overhead Equipment Installation
- This unique rack is designed for housing equipment in overhead spaces in warehouses, retail outlets, and other similar open-area installations.
- Knockouts
- This enclosure features a number of preconfigured knockouts that allow you to custom configure your setup to meet your exact needs.
- Cooling
- Two fans are included with this unit to keep your equipment cool and extend its useful life.
- Solid Construction
- This enclosure's welded-steel construction guarantees exceptional strength and years of use.
- No-Clog Rack-Rail Threads
- All rack rails are finished in a durable "e-coat" to prevent clogged threads.
- Industry-Standard Design
- Rack rails are labeled in EIA standard rack-space increments, allowing for easy equipment alignment.
- Grounding/Bonding Studs
- Grounding/Bonding Studs have been provided to help you electrically ground and bond equipment per NEBS and NEC standards.
In the Box Middle Atlantic IDF-TM-1224BK 12U Intermediate Distribution Rack Top Panel Bottom 2 x Side Panels Door 4 x Rack Rails (2 Pairs, Front & Back) 2 x Fans Power Distributor (PD-915R) Electrical Box 4 x Gland Grommets Limited Lifetime Warranty to Original Purchaser Table of Contents
|
Upload User Manual
Have you got an user manual for the Middle Atlantic IDF-TM-1224BK 12U Intermediate Distribution Rack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiddle Atlantic IDF-TM-1224BK Specs | Construction | 11-gauge steel (rack rails)
16-gauge steel (top)
18-gauge steel (side panels, bottom, door) | | Finish | Black powder coat | | Shelf | None | | Cabinet | 12U (21") rack height
21" useable depth | | Mobility | None | | Dimensions (HxWxD) | 24.13 x 23.52 x 24" | | Weight Capacity | 150 lbs | | Weight | Not specified by manufacturer | | | | Package Weight | 107.0 lb | | Box Dimensions (LxWxH) | 32.0 x 30.0 x 27.0" |
