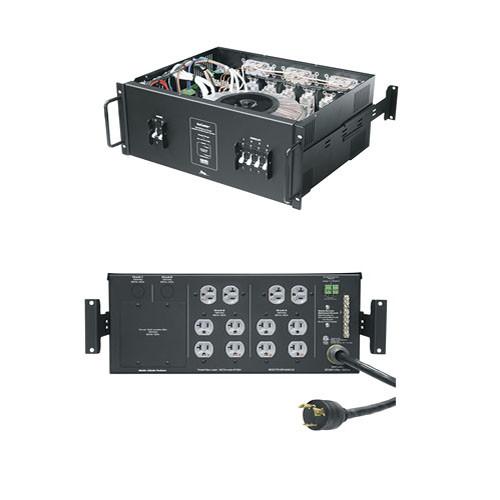

User Manual for Middle Atlantic IsoCenter Rackmount Isolation Transformer & Load Center Click to enlarge the picture
Contents of the user manual for the Middle Atlantic IsoCenter Rackmount Isolation Transformer
- Product category: Cable & Power Management Middle Atlantic
- Brand: Middle Atlantic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Middle Atlantic Cable & Power Management
|
User manual for the Middle Atlantic IsoCenter Rackmount Isolation Transformer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Middle Atlantic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Middle Atlantic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Middle Atlantic product will considerably shorten its lifespan!
|
Product description The Middle-Atlantic IsoCenter Rackmount Isolation Transformer & Load Center offers protected, same-phase, isolated 120 VAC circuits that provide power to commercial AV systems. A high efficiency toroidal isolation transformer with alloy core and a single 120V secondary winding (all circuits in same phase) with a Faraday shield provides efficient power distribution.
High Voltage feeder and integrated power distribution circuit breakers save labor and material.
The IsoCenter Rackmount Isolation Transformer & Load Center monitors the input voltage and performs automatic shutdown if low input voltage is detected. A negligible magnetic leakage (less than 250 milligauss) allows the unit to be mounted on the same rack.
An external ground bus located at rear of the unit provides a termination point that offers a low impedance single point grounding system (SPG) for the rack enclosure and connected equipment. The IsoCenter Rackmount Isolation Transformer & Load Center provides 5KVA of power and has a faraday shield that minimizes the common-mode noise.
A 100,000 Amp, 2-stage surge and spike protection feature with dry contact status notification provides protection for the connected devices against power line surges & spikes. The IsoCenter Rackmount Isolation Transformer & Load Center can withstand a maximum load of 41.66A at 120V (5000 Volt-Amperes).
The 4 rackspace IsoCenter Rackmount Isolation Transformer & Load Center sports a black powder coat and is housed in a steel enclosure with a built in rear rail telescoping support. - Offers a protected, same-phase, isolated 120 VAC circuit that provides power to the AV systems
- Includes a high efficiency toroidal isolation transformer with alloy core and the transformer has a single 120V secondary winding (all circuits in same phase) with a Faraday shield
- High Voltage feeder and integrated power distribution circuit breakers save labor and material
- Monitors the input voltage and performs automatic shutdown if low input voltage is detected
- Allows the unit to be mounted on the same rack via negligible magnetic leakage (less than 250 milligauss)
- External ground bus located at rear of the unit provides a termination point that offers a low impedance single point grounding system (SPG) for the rack enclosure and connected equipment
- Provides a power of 5KVA and has a faraday shield that minimizes the common-mode noise
- 100,000 Amp 2-stage surge and spike protection with dry contact status notification enables the unit to provide protection for the connected devices against power line surges & spikes
- Withstands a maximum load of 41.66 A @ 120V (5000 Volt-Amperes)
- Sports a black powder coat
- Housed in a steel enclosure with a built in rear rail telescoping support
- Inaudible acoustical noise
In the Box Middle Atlantic IsoCenter Rackmount Isolation Transformer & Load Center 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Middle Atlantic IsoCenter Rackmount Isolation Transformer & Load Center in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiddle Atlantic ISOCTR-5R-240-2 Specs | Description | 5kVA Rackmount Integrated Load Center - 240V Single Phase input | | Surge Protection | 100,000 Amps | | Remote Branch Circuit Extension | Yes | | Racking Height | 7" / 17.78 cm (4 Space) | | Construction | Steel Enclosure | | Finish | Black Powder Coat | | Depth | 14.4" (36.58 cm) | | Rear Mounting Range | 17.8 - 24.8" (45.21 - 63 cm) | | Termination | NEMA L6-30P | | Dimensions (W x H x D) | 19 x 7 x 14.4" (48.26 x 17.78 x 36.58 cm) | | Weight | 105 lb (47.63 kg) | | | | Package Weight | 105.0 lb | | Box Dimensions (LxWxH) | 24.0 x 22.0 x 20.0" |
