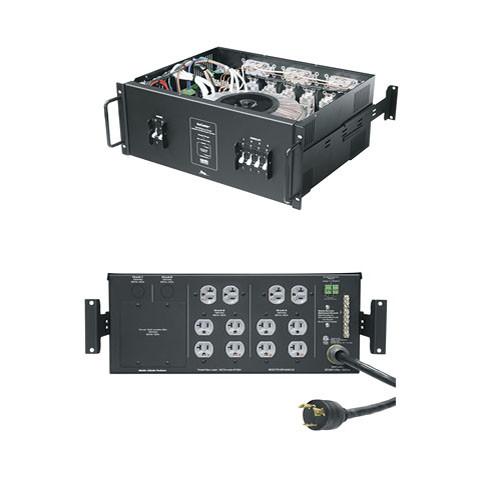

Product description The Middle Atlantic ISOCTR-5R-208-2 IsoCenter Rackmount Integrated Load Center is used to power AV (audio/video) systems by offering protected isolated 120VAC circuits with same-phase. Featured AV reference ground avoids ground loops (unwanted current) and reduces electrical noise for high gain applications. With a 208V single phase input, the load center offers 5KVA capacity.
With an efficiency of over 98%, the ISOCTR-5R-208-2 load center detects hazardous input voltage signals and ensures optimal system performance. Minimal audible noise and magnetic leakage (less than half that of a standard power brick) enables the load center to be installed directly inside the equipment rack. Also included are a high voltage feeder and integrated power distribution circuit breakers to save labor and equipment cost.
Four 20A branch circuits (2 hardwired circuits for select models) offer ways to extend the functionality of IsoCenter out to remote systems/locations. Using 100,000A 2-stage surge and spike protection, the IsoCenter load center protects connected devices from sudden power surges and spikes. The IsoCenter load center offers inaudible acoustic noise (27dB, C-weighted, 1M) and prevents voltage induction impact on the ground feeder. - Used to power AV (audio/video) systems by offering protected isolated 120VAC circuits with same-phase
- Featured AV reference ground avoids ground loops (unwanted current) and reduces electrical noise for high gain applications
- Comes with 208V single phase input
- Detects hazardous input voltage signals and offers optimal system performance
- Enables direct installation inside the equipment rack with minimal audible noise and magnetic leakage (less than half that of a standard power brick)
- Features high voltage feeder and integrated power distribution circuit breakers to save labor and equipment cost
- Offers ways to extend the functionality of IsoCenter out to remote systems/locations via four 20A branch circuits (2 circuits are hardwired for select models)
- Protects connected devices from sudden power surges and spikes using 100,000A 2-stage surge and spike protection
- Offers inaudible acoustical noise (27dB, C-weighted, 1M) and prevents voltage induction impact on the ground feeder
In the Box Middle Atlantic ISOCTR-5R-208-2 IsoCenter Rackmount Integrated Load Center 10' 30A Power Cord NEMA L6-30P Twist-lock Molded Male Plug 5 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Middle Atlantic ISOCTR-5R-208-2 IsoCenter Rackmount Integrated Load Center in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiddle Atlantic ISOCTR-5R-208-2 Specs | Surge & Spike Protection | 100,000 Amps | | Racking Height | 7" (17.78cm) (4 space) | | Depth | 14.4" (36.5cm) | | Range | Rear Mounting Range: 17.8 - 24.8" (45 - 62 cm) | | Termination | NEMA L6-30P | | Dimensions | 19.00 x 7.00 x 14.4" (48 x 17.7 x 36 cm) | | Weight | 105lb (47kg) | | | | Package Weight | 105.0 lb | | Box Dimensions (LxWxH) | 37.0 x 24.0 x 14.0" |
