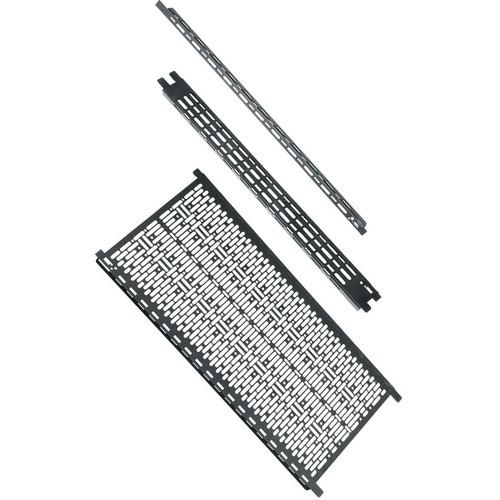

User Manual for Middle Atlantic LL-MP21 21" Multi Pack Click to enlarge the picture
Contents of the user manual for the Middle Atlantic LL-MP21 21" Multi Pack
- Product category: Cable & Power Management Middle Atlantic
- Brand: Middle Atlantic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Middle Atlantic Cable & Power Management
|
User manual for the Middle Atlantic LL-MP21 21" Multi Pack contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Middle Atlantic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Middle Atlantic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Middle Atlantic product will considerably shorten its lifespan!
|
Product description The Middle Atlantic LL-MP21 21" Multi Pack facilitates cable management and device mounting within the rack interior through the use of unique tool free cable management bars and vertical accessory mounting plates. The pack is comprised of 2 types of accessories based on mounting orientation: vertical and horizontal, and all styles install without tools or hardware. There are 2 x LL-VC21,4 x LL-HA21, and 1 x LL-VP2110.
The LL-VC21 21" Vertical Channel Lace installs between rackrail brackets on BGR and BGR-SA racks to facilitate cable lacing. The unique tool free design allows for quick installation and removal for servicing - and maximizes space by saving between 2 to 4U per rack.
The LL-HA21 21" Horizontal Angle Lace installs inside the rack from side-to-side to manage cables and provide strain relief to connectors. Mount horizontal lace between rackrail brackets or between vertical bars for extremely flexible location choices.
The LL-VP2110 21" Vertical Mounting Plate (10" Deep) installs between rackrail brackets and provide convenient mounting of small components in the sides of the rack. - Facilitates device mounting within the rack interior
- Horizontal angles mount between vertical LeverLock accessories or between rackrail brackets for strain relief and cable management
- Allows for quick installation and removal for servicing
- Vertical channels allow cable bundles to be laced from top to bottom
- Maximizes space by saving between 2 and 4 rack spaces per rack
- Compatible with: BGR Series enclosures of all sizes
UPC: 656747142161 In the Box Middle Atlantic LL-MP21 21" Multi Pack LL-VC21 21" Vertical Channel Lace bvvwtycyeabtzsyxubxswvaztuscb LL-HA21 21" Horizontal Angle Lace LL-VP2110 21" Vertical Mounting Plate (10" Deep) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Middle Atlantic LL-MP21 21" Multi Pack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiddle Atlantic LL-MP21 Specs | Certifications | Greenguard Indoor Air Quality certified for children and schools, RoHS EU Directive 2002/95/EC compliant | | Dimensions | LL-VC21 21" Vertical Channel Lace
Overall Length: 13.61" (346 mm)
Useable Length: 10.64" (270 mm)
LL-HA21 21" Horizontal Angle Lace
22.07 x 0.9" (560 x 23 mm)
LL-VP2110 21" Vertical Mounting Plate (10" Deep)
Overall Length: 17.11" (435 mm)
Useable Length: 15.86" (403 mm) | | | | Package Weight | 4.0 lb | | Box Dimensions (LxWxH) | 18.0 x 12.0 x 2.0" |
